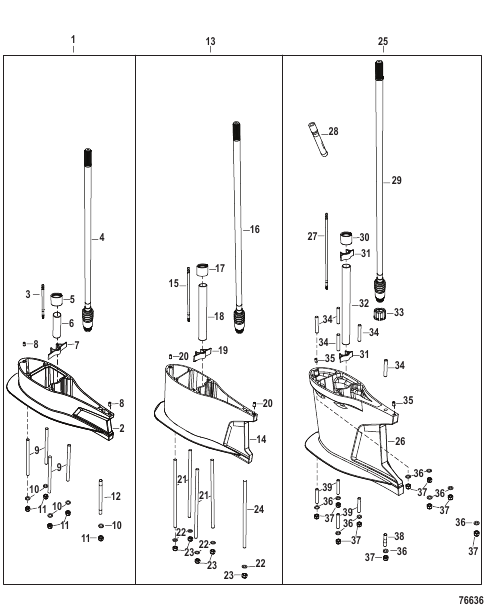

Driveshaft Extension Kits

Parts (45)

#Part NumberDescriptionQtyStatus
1 8M0210428 5 INCH SPACER KIT X-Long, Graphite Grey 1 superseded
1 8M0210430 5 INCH SPACER KIT X-Long, Cold Fusion White 1 superseded
10 856982   WASHER (.500 x .810 x .090) Stainless Steel 5
11 897926   NUT (M12), Nylon Insert 5
12 8M0210429   STUD 1
13 8M0210432 10 INCH SPACER KIT XX-Long, Graphite Grey 1 superseded
13 8M0210434 10 INCH SPACER KIT XX-Long, Cold Fusion White 1 superseded
14 8M0233437   SPACER XX-Long, Graphite Grey 1
14 8M0233440   SPACER XX-Long, Cold Fusion White 1
15 8M0210555   SHIFT SHAFT XX-Long 1
16 8M0210554   DRIVESHAFT XX-Long 1
17 8M0200171   COUPLING 1
18 8M0200173   EXTENSION Water Tube 1
19 8M0200169   GUIDE Water Tube 1
2 8M0233427   SPACER X-LONG, Graphite Grey 1
2 8M0233439   SPACER X-Long, Cold Fusion White 1
20 8M0084244   PIN Dowel, .375 x .620 2
21 8M0200082   STUD (M12 x 1.75 x 336) 4
22 856982   WASHER (.500 x .810 x .090) Stainless Steel 5
23 897926   NUT (M12), Nylon Insert 5
24 8M0210431   STUD 1
25 8M0210436 15 INCH SPACER KIT XXX-Long, Graphite Grey 1
25 8M0210438 15 INCH SPACER KIT XXX-Long, Cold Fusion White 1
26 8M0233438   SPACER XXX-Long, Graphite Grey 1
26 8M0233441   SPACER XXX-Long, Cold Fusion White 1
27 8M0210557   SHIFT SHAFT XXX-Long 1
28 8M0210437   HOSE 1
29 8M0210556   DRIVESHAFT XXX-Long 1
3 8M0210553   SHIFT SHAFT X-Long 1
30 8M0200171   COUPLING 1
31 8M0200176   GUIDE Water Tube 2
32 8M0200177   EXTENSION Water Tube 1
33 8M0205684   BEARING 1
34 8M0199876   STUD 5
35 8M0084244   PIN Dowel, .375 x .620 2
36 856982   WASHER (.500 x .810 x .090) Stainless Steel 10
37 897926   NUT (M12), Nylon Insert 10
38 8M0210435   STUD 1
39 8M0200080   STUD (M12 x 1.75 x 82) 4
4 8M0210552   DRIVESHAFT X-Long 1
5 8M0200171   COUPLING 1
6 8M0200170   EXTENSION Water Tube 1
7 8M0200169   GUIDE Water Tube 1
8 8M0084244   PIN Dowel, .375 x .620 2
9 8M0200081   STUD (M12 x 1.75 x 209) 4
