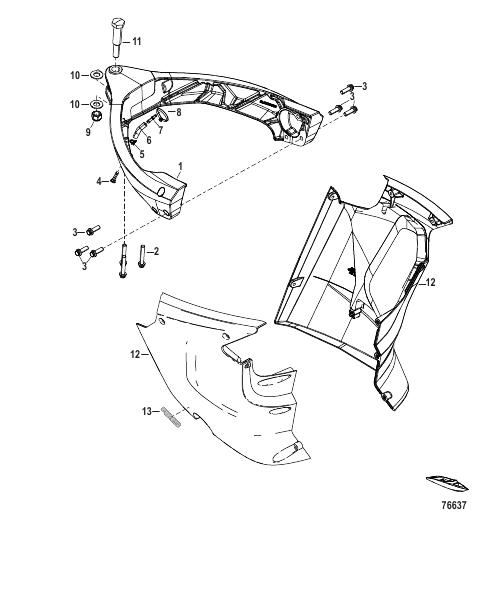

Tie Bar
Parts (15)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0186347 |
TIE BAR ASSEMBLY Graphite Grey TIE BAR ASSEMBLY Graphite Grey |
1 | |
| 1 | 8M0186346 |
TIE BAR ASSEMBLY Cold Fusion White TIE BAR ASSEMBLY Cold Fusion White |
1 | |
| 10 | 844850 |
ШАЙБА (0.660 x 1.310 x 0.09), нержавеющая сталь WASHER (.660 x 1.310 x .09) Stainless Steel |
2 | |
| 11 | 8M0161439 |
BOLT BOLT |
1 | superseded |
| 12 | 8M0210424 |
CRADLE COVER ASSEMBLY Graphite Grey Tie Bar CRADLE COVER ASSEMBLY Graphite Grey Tie Bar |
1 | |
| 12 | 8M0231103 |
COVER CRADLE ASSEMBLY White COVER CRADLE ASSEMBLY White |
1 | |
| 13 | 8M0146963 |
НАКЛЕЙКА AMS DECAL AMS |
2 | |
| 2 | 8M0161438 |
SCREW (M10x1.5x60) SCREW (M10x1.5x60) |
3 | |
| 3 | 8M0161437 |
SCREW (M10x1.5x30) SCREW (M10x1.5x30) |
6 | |
| 4 | 895797001 |
ФИТИНГ FITTING |
1 | |
| 5 | 895851 |
ЗАЖИМ (8.00") CLAMP (8.00 Inches) |
1 | |
| 6 | 8M0161443 |
TUBING TUBING |
1 | |
| 7 | 8M0161441 |
FITTING BARB FITTING BARB |
1 | |
| 8 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
1 | |
| 9 | 47379 |
ГАЙКА (0.625-18), нержавеющая сталь NUT (.625-18) Stainless Steel |
1 |
