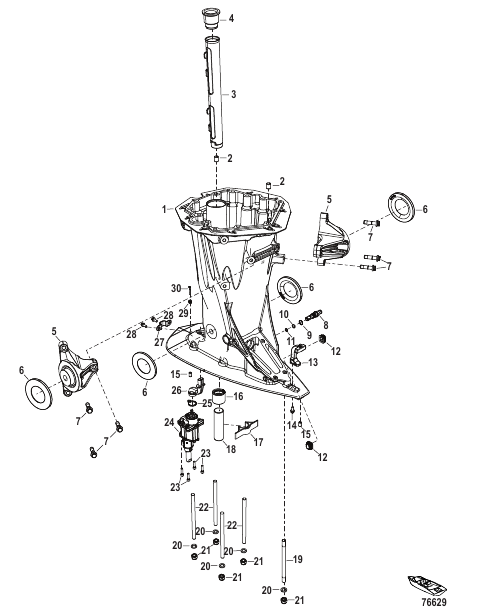

Driveshaft Housing
Parts (44)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0210458 |
DRIVESHAFT HOUSING Graphite Grey DRIVESHAFT HOUSING Graphite Grey |
1 | |
| 1 | 8M0214502 |
DRIVESHAFT HOUSING Cold Fusion White DRIVESHAFT HOUSING Cold Fusion White |
1 | |
| 10 | 863006 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (10,82 x 1,78) O-RING (10.82 x 1.78) |
1 | |
| 11 | 8M0036228 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (8.1 x 1.6) O-RING (8.1 X 1.6) |
1 | |
| 12 | 8M0142940 |
УПОР BUMPER |
2 | |
| 13 | 8M0187152 |
BRACKET ASSEMBLY Graphite Grey BRACKET ASSEMBLY Graphite Grey |
1 | |
| 13 | 8M0187151 |
BRACKET ASSEMBLY Cold Fusion White BRACKET ASSEMBLY Cold Fusion White |
1 | |
| 14 | 8M0103807 |
ВИНТ (M6 x 25 мм), нержавеющая сталь SCREW (M6 x 25 mm) Stainless Steel |
1 | |
| 15 | 8M0084244 |
ШТИФТ Штифт PIN Dowel, .375 x .620 |
2 | |
| 16 | 8M0200171 |
COUPLING COUPLING |
1 | |
| 17 | 8M0200170 |
EXTENSION Water Tube X-Long EXTENSION Water Tube X-Long |
1 | |
| 17 | 8M0200173 |
EXTENSION Water Tube XX-Long EXTENSION Water Tube XX-Long |
1 | |
| 17 | 8M0200177 |
EXTENSION Water Tube XXX-Long EXTENSION Water Tube XXX-Long |
1 | |
| 18 | 8M0200169 |
GUIDE Water Tube GUIDE Water Tube |
1 | |
| 18 | 8M0200176 |
GUIDE Water Tube XXX-Long Models GUIDE Water Tube XXX-Long Models |
2 | |
| 19 | 8M0210435 |
STUD Long STUD Long |
1 | |
| 19 | 8M0210429 |
STUD X-Long STUD X-Long |
1 | |
| 19 | 8M0210431 |
STUD XX-Long STUD XX-Long |
1 | |
| 19 | 8M0210435 |
STUD XXX-Long STUD XXX-Long |
1 | |
| 2 | 821327 |
ШТИФТ Штифт PIN Dowel |
2 | |
| 20 | 856982 |
ШАЙБА (0.500 x 0.810 x 0.090), нержавеющая сталь WASHER (.500 x .810 x .090) Stainless Steel |
5 | |
| 20 | 856982 |
ШАЙБА (0.500 x 0.810 x 0.090), нержавеющая сталь XXX-Long WASHER (.500 x .810 x .090) Stainless Steel XXX-Long |
10 | |
| 21 | 897926 |
ГАЙКА (M12), нейлоновая вставка NUT (M12), Nylon Insert |
5 | |
| 21 | 897926 |
ГАЙКА (M12), нейлоновая вставка XXX-Long NUT (M12), Nylon Insert XXX-Long |
10 | |
| 22 | 8M0200080 |
STUD (M12 x 1.75 x 82) Long STUD (M12 x 1.75 x 82) Long |
4 | |
| 22 | 8M0200081 |
STUD (M12 x 1.75 x 209) X-Long STUD (M12 x 1.75 x 209) X-Long |
4 | |
| 22 | 8M0200082 |
STUD (M12 x 1.75 x 336) XX-Long STUD (M12 x 1.75 x 336) XX-Long |
4 | |
| 22 | 8M0200080 |
STUD (M12 x 1.75 x 82) XXX-Long STUD (M12 x 1.75 x 82) XXX-Long |
4 | |
| 22 | 8M0199876 |
STUD XXX-Long STUD XXX-Long |
5 | |
| 23 | 8M0210463 |
SCREW SCREW |
1 | |
| 24 | 8M0210462 |
ACTUATOR MOTOR ACTUATOR MOTOR |
1 | |
| 25 | 8M0214940 |
TIE STRAP TIE STRAP |
1 | |
| 26 | 8M0147674 |
ЧЕХОЛ Провода привода переключения передач BOOT Shift Actuator Wires |
1 | |
| 27 | 8M0200079 |
CLAMP CLAMP |
1 | |
| 28 | 8M0103805 |
ВИНТ (M6 x 16 ММ), нержавеющая сталь SCREW (M6 x 16mm) Stainless Steel |
2 | |
| 29 | 8M0142714 |
ФИТИНГ FITTING |
1 | |
| 3 | 8M0142784 |
КРОНШТЕЙН Жгут проводов переключения передач BRACKET Shift Harness |
1 | |
| 30 | 859732 |
ПРОБКА PLUG |
1 | |
| 4 | 8M0142785 |
КРОНШТЕЙН Жгут проводов переключения передач BRACKET Shift Harness |
1 | |
| 5 | 8M0205786 |
BRACKET Mount Support BRACKET Mount Support |
2 | superseded |
| 6 | 8M0200009 |
WASHER Mount Snubber WASHER Mount Snubber |
4 | |
| 7 | 8M0200075 |
SCREW SCREW |
6 | superseded |
| 8 | 8M0112869 |
МАСЛЯНАЯ ПРОБКА В СБОРЕ OIL PLUG ASSEMBLY |
1 | |
| 9 | 85045 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.551 x 0.070) O-RING (.551 x .070) |
1 |
