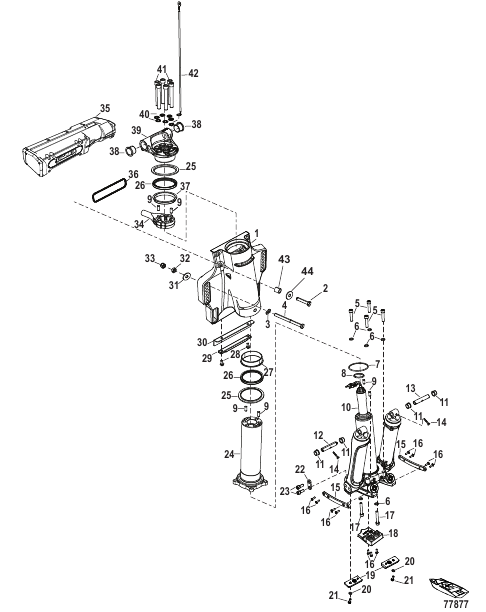

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0206990 |
SHIM SET
|
1 |
|
| - |
8M0109756 |
DOUBLE NUT KIT Transom Bolt
|
1 |
|
| 1 |
8M0218971 |
PEDESTAL Graphite Grey
|
1 |
|
| 1 |
8M0218972 |
PEDESTAL Cold Fusion White
|
1 |
|
| 10 |
8M0218975 |
POWER TRIM
|
1 |
|
| 11 |
8M0161419 |
BEARING Shoulder
|
4 |
|
| 12 |
8M0164144 |
PIN Rodeye Cap
|
1 |
|
| 13 |
8M0142821 |
PIN Rodeye
|
1 |
|
| 14 |
821539 |
PIN Trilobe
|
2 |
|
| 15 |
8M0219273 |
WEAR PAD/SHIM KIT
|
2 |
|
| 16 |
8M0199587 |
SCREW (M6 x 1.0 x 20)
|
11 |
|
| 17 |
8M0007798 |
SCREW (M10 x 65)
|
2 |
|
| 18 |
8M0218976 |
ANODE Manifold
|
1 |
|
| 19 |
8M0204939 |
ANODE Trim
|
2 |
|
| 2 |
8M0187121 |
SCREW Hex Flange M8
|
4 |
|
| 20 |
8M0204649 |
WASHER (.281 x .500 x .060) Stainless Steel
|
2 |
|
| 21 |
8M0206596 |
SCREW (M6 x 20)
|
2 |
|
| 22 |
8M0218977 |
PLATE Lock Trim
|
1 |
|
| 23 |
4009025 |
SCREW (M10 x 25) Stainless Steel
|
2 |
|
| 24 |
8M0218978 |
TUBE Torsion
|
1 |
|
| 25 |
8M0217560 |
BEARING Thrust
|
2 |
|
| 26 |
8M0217558 |
SEAL
|
2 |
|
| 27 |
8M0218979 |
BEARING
|
1 |
|
| 28 |
88552620 |
SCREW (M8 x 20)
|
2 |
|
| 29 |
8M0217561 |
ANODE Aluminum
|
1 |
|
| 3 |
8M0204704 |
WASHER
|
6 |
|
| 30 |
8M0218980 |
PLATE Deflector
|
1 |
|
| 31 |
8M0204648 |
WASHER (1.5 x 3.05 x 0.13) Stainless Steel
|
6 |
|
| 32 |
8M0204734 |
NUT (.500-20) HEX, Brass
|
6 |
|
| 33 |
82671117 |
NUT (.500-20)
|
6 |
|
| 34 |
880665T01 |
ARM Steering
|
1 |
|
| 35 |
8M6012144 |
ACTUATOR Electric Steering
|
1 |
|
| 36 |
8M0218982 |
SEAL Cover
|
1 |
|
| 37 |
8M0217557 |
BEARING
|
1 |
|
| 38 |
8M0161423 |
BEARING SHOULDER
|
2 |
|
| 39 |
8M0218983 |
STEERING HEAD Graphite Grey
|
1 |
|
| 39 |
8M0218984 |
STEERING HEAD Cold Fusion White
|
1 |
|
| 4 |
8M0038370 |
SCREW (.500-20 x 5.50)
|
AR |
|
| 4 |
8M0185652 |
SCREW (.500-20 x 5.50) Pack of 6
|
AR |
|
| 4 |
677552 |
SCREW (.500-20 x 6.500)
|
AR |
|
| 4 |
8M0185653 |
SCREW (.500-20 x 6.500) Pack of 6
|
AR |
|
| 4 |
8M0028080 |
SCREW (.500-20 x 7.500)
|
AR |
|
| 4 |
8M0185654 |
SCREW (.500-20 x 7.500) Pack of 6
|
AR |
|
| 4 |
8M0032860 |
SCREW (.500-20 x 8.00)
|
AR |
superseded
|
| 4 |
8M0185655 |
SCREW (.500-20 x 8.00) Pack of 6
|
AR |
|
| 40 |
8M0217559 |
WASHER
|
7 |
|
| 41 |
8M0204933 |
SCREW M14 x 2 x 105 SOC HD
|
6 |
|
| 42 |
8M0214684 |
GROUND STRAP
|
1 |
|
| 43 |
NSS |
NOT SOLD SEPARATE Bushing 8m0222952
|
4 |
|
| 44 |
56720 |
WASHER (.330 x .750 x .060) Stainless Steel
|
4 |
|
| 5 |
8M0218973 |
SCREW
|
4 |
|
| 6 |
8M0218974 |
WASHER
|
6 |
|
| 7 |
8M0204938 |
O-RING
|
1 |
|
| 8 |
8M0217562 |
O-RING
|
1 |
|
| 9 |
8M0204929 |
PIN (0.375 x 0.875) Dowel
|
6 |
|
