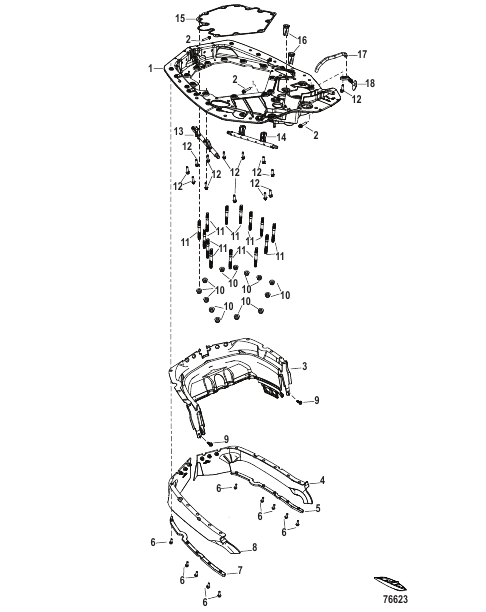

Adapter Plate
Parts (19)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0210444 |
GASKET SET Longblock GASKET SET Longblock |
1 | |
| 1 | 8M0161405 |
CHAP PLATE ASSEMBLY CHAP PLATE ASSEMBLY |
1 | |
| 10 | 8M0142743 |
ГАЙКА (M10 x 1.5) NUT (M10 x 1.5) |
13 | |
| 11 | 8M0158595 |
STUD (M10) STUD (M10) |
13 | |
| 12 | 8M0142708 |
ВИНТ (M6) SCREW (M6) |
13 | |
| 13 | 8M0161409 |
SPRAYER HOSE ASSEMBLY Port SPRAYER HOSE ASSEMBLY Port |
1 | |
| 14 | 8M0161410 |
SPRAYER HOSE ASSEMBLY Starboard SPRAYER HOSE ASSEMBLY Starboard |
1 | |
| 15 | 8M0205773 |
GASKET Adapter Plate GASKET Adapter Plate |
1 | |
| 16 | 8M0142710 |
СЛИВ Кожух DRAIN Cowl |
2 | |
| 17 | 8M0161408 |
HOSE (FSM TO TELL TALE) HOSE (FSM TO TELL TALE) |
1 | |
| 18 | 8M0142748 |
ФИТИНГ FITTING |
1 | |
| 2 | 8M0103808 |
ВИНТ (M6 x 30 ММ), нержавеющая сталь SCREW (M6 x 30 mm) Stainless Steel |
3 | |
| 3 | 8M0142755 |
ЗВУКОВОЙ БЛОК SOUND BLOCK |
1 | |
| 4 | 8M0161406 |
SEAL Lower Cowl, Front, Starboard SEAL Lower Cowl, Front, Starboard |
1 | |
| 5 | 8M0142754 |
ПЛАСТИНА Нижний кожух – левый борт PLATE Lower Cowl-Starboard |
1 | |
| 6 | 8M0161407 |
SCREW (M5 X 18) SCREW (M5 X 18) |
10 | |
| 7 | 8M0142753 |
ПЛАСТИНА Нижний кожух – правый борт PLATE Lower Cowl-Port |
1 | |
| 8 | 8M0183024 |
SEAL Lower Cowl, Front, Port SEAL Lower Cowl, Front, Port |
1 | |
| 9 | 8M0151155 |
ВИНТ Нейлоновый, вталкиваемый SCREW Nylon Push In |
2 |
