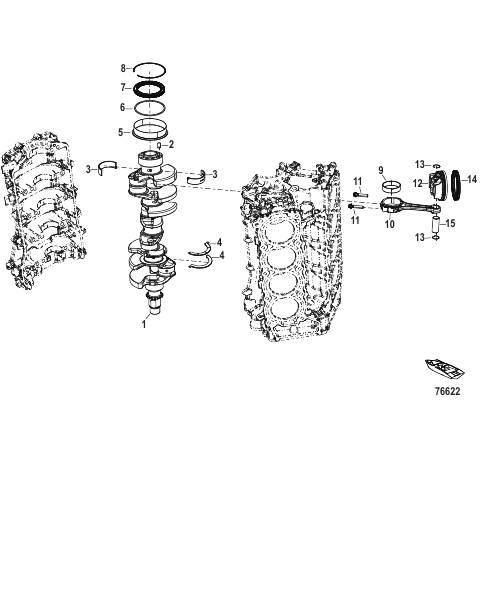

Crankshaft, Pistons and Connecting Rods
Parts (25)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0194204 |
WEAR SLEEVE KIT Kit inlcudes Tool WEAR SLEEVE KIT Kit inlcudes Tool |
1 | |
| - | 8M0210443 |
PISTON ASSEMBLY Port PISTON ASSEMBLY Port |
4 | |
| - | 8M0210442 |
PISTON ASSEMBLY Starboard PISTON ASSEMBLY Starboard |
4 | |
| - | 8M0210470 |
LONG BLOCK ASSEMBLY LONG BLOCK ASSEMBLY |
1 | superseded |
| - | 8M0210444 |
GASKET SET Longblock GASKET SET Longblock |
1 | |
| 1 | 8M0210441 |
CRANKSHAFT ASSEMBLY CRANKSHAFT ASSEMBLY |
1 | superseded |
| 10 | 8M0200039 |
CONNECTING ROD ASSEMBLY CONNECTING ROD ASSEMBLY |
8 | superseded |
| 11 | 8M0206041 |
BOLT Connecting Rod BOLT Connecting Rod |
16 | |
| 12 | 8M0169558 |
PISTON ASSEMBLY PISTON ASSEMBLY |
8 | |
| 13 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Circlip NOT SOLD SEPARATE Circlip |
16 | |
| 14 | 8M0200041 |
RING KIT Piston RING KIT Piston |
8 | |
| 15 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Wrist Pin NOT SOLD SEPARATE Wrist Pin |
8 | |
| 2 | 8M0161450 |
DOWEL PIN M5 x 10 MM DOWEL PIN M5 x 10 MM |
1 | |
| 3 | 8M0200035 |
BEARING Main, Green BEARING Main, Green |
AR | |
| 3 | 8M0200034 |
BEARING Main, Blue BEARING Main, Blue |
AR | |
| 3 | 8M0200033 |
BEARING Main, White BEARING Main, White |
AR | |
| 3 | 8M0200032 |
BEARING Main, Orange BEARING Main, Orange |
AR | |
| 4 | 8M0142424 |
ШАЙБА УПОРНАЯ WASHER THRUST |
2 | |
| 5 | 8M0204850 |
SPEEDI SLEEVE SPEEDI SLEEVE |
1 | |
| 6 | 8M0142385 |
ПРОСТАВКА SPACER |
1 | |
| 7 | 8M0219117 |
SEAL Main Bearing SEAL Main Bearing |
1 | |
| 8 | 8M0142386 |
СТОПОРНОЕ КОЛЬЦО RING RETAINING |
1 | |
| 9 | 8M0217817 |
BEARING Connecting Rod, Green BEARING Connecting Rod, Green |
AR | |
| 9 | 8M0217818 |
BEARING Connecting Rod, Blue BEARING Connecting Rod, Blue |
AR | |
| 9 | 8M0217819 |
BEARING Connecting Rod, White BEARING Connecting Rod, White |
AR |
