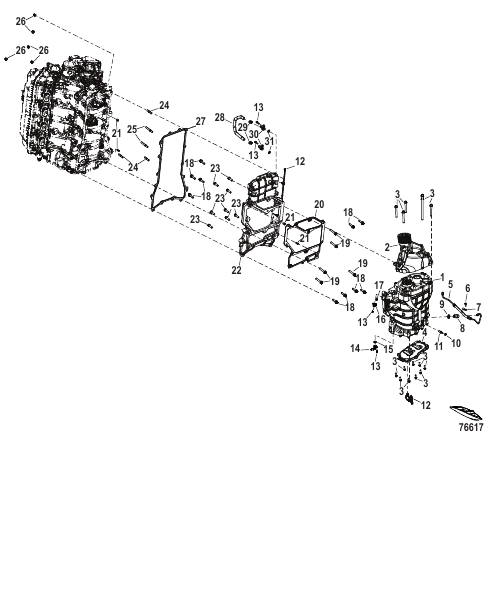

Supercharger
Parts (34)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0210470 |
LONG BLOCK ASSEMBLY LONG BLOCK ASSEMBLY |
1 | superseded |
| - | 8M0210444 |
GASKET SET Longblock GASKET SET Longblock |
1 | |
| 1 | 8M0210471 |
SUPERCHARGER ASSEMBLY SUPERCHARGER ASSEMBLY |
1 | |
| 10 | 401386 |
ГАЙКА (M6), нержавеющая сталь NUT (M6) Stainless Steel |
1 | |
| 11 | 8M0159616 |
STUD STUD |
1 | |
| 12 | 899145 |
ЗАЖИМ Ленточный хомут CLIP Tie Strap |
3 | |
| 13 | 40011107 |
ВИНТ (M5 x 16), нержавеющая сталь SCREW (M5 x 16) Stainless Steel |
4 | |
| 14 | 8M0159610 |
FITTING WATER FITTING WATER |
1 | |
| 15 | 8M0142481 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0,362 x 0,103) O-RING (0.362 x 0.103) |
1 | |
| 16 | 8M0210520 |
FITTING Water FITTING Water |
1 | |
| 17 | 8M0142481 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0,362 x 0,103) O-RING (0.362 x 0.103) |
1 | |
| 18 | 8M0103813 |
ВИНТ (M8 x 30) SCREW (M8 x 30) |
10 | |
| 19 | 88552645 |
ВИНТ (M8X45) SCREW (M8X45) |
5 | |
| 2 | 8M0219437 |
INLET NOSE ASSEMBLY INLET NOSE ASSEMBLY |
1 | |
| 20 | 8M0210770 |
GASKET Supercharger GASKET Supercharger |
1 | |
| 21 | 892228 |
ШТИФТ Штифт PIN Dowel |
4 | |
| 22 | 8M0208378 |
BEDPLATE COVER BEDPLATE COVER |
1 | |
| 23 | 8M0213126 |
SCREW SCREW |
8 | |
| 24 | 8M0159614 |
STUD STUD |
3 | |
| 25 | 8M0159615 |
STUD STUD |
2 | |
| 26 | 8M0159618 |
NUT NUT |
5 | |
| 27 | 8M0159617 |
GASKET BEDPLATE GASKET BEDPLATE |
1 | |
| 28 | 8M0159613 |
HOSE BEDPLATE COVER HOSE BEDPLATE COVER |
1 | |
| 29 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
2 | |
| 3 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Screw NOT SOLD SEPARATE Screw |
AR | |
| 30 | 8M0159612 |
FITTING ASSY WATER FITTING ASSY WATER |
2 | |
| 31 | 8M0142481 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0,362 x 0,103) O-RING (0.362 x 0.103) |
2 | |
| 4 | 8M0204264 |
GEAR COVER ASSEMBLY GEAR COVER ASSEMBLY |
1 | |
| 5 | 8M0168882 |
HOSE Oil, Cylinder Head to Supercharger HOSE Oil, Cylinder Head to Supercharger |
1 | |
| 6 | 40011106 |
ВИНТ (M5 x 13), нержавеющая сталь SCREW (M5 x 13) Stainless Steel |
1 | |
| 7 | 8M0149580 |
ЗАЖИМ Стопор CLAMP Retaining |
1 | |
| 8 | 8M0210488 |
ADAPTOR ADAPTOR |
1 | |
| 9 | 8M0210489 |
O-RING O-RING |
1 | |
| NS | 8M0204265 |
BUSHING AND GASKET SET Supercharger Inlet Nose BUSHING AND GASKET SET Supercharger Inlet Nose |
1 |
