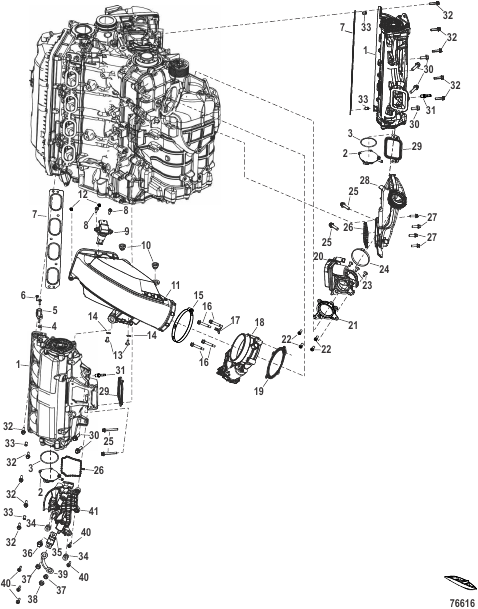

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0210470 |
LONG BLOCK ASSEMBLY
|
1 |
superseded
|
| - |
8M0210444 |
GASKET SET Longblock
|
1 |
|
| 1 |
8M0219737 |
MANIFOLD ASSEMBLY Port
|
1 |
|
| 1 |
8M0219738 |
MANIFOLD ASSEMBLY Starboard
|
1 |
|
| 10 |
8M0096302 |
GROMMET
|
2 |
|
| 11 |
8M0210491 |
COLD AIR INTAKE
|
1 |
|
| 12 |
8M0159629 |
CLIP PUSH IN
|
2 |
|
| 13 |
NSS |
NOT SOLD SEPARATE Screw
|
2 |
|
| 14 |
4002314 |
WASHER
|
2 |
|
| 15 |
8M0199980 |
CLAMP Hose
|
1 |
|
| 16 |
8M0210478 |
SCREW
|
4 |
|
| 17 |
8M0210497 |
BRACKET Harness
|
1 |
|
| 18 |
8M0199834 |
THROTTLE BODY 92 MM
|
1 |
|
| 19 |
8M0210476 |
ISOLATOR Throttle Body
|
1 |
|
| 2 |
8M0219118 |
COVER CAC Port
|
1 |
|
| 2 |
8M0219119 |
COVER CAC Starboard
|
1 |
|
| 20 |
8M0159630 |
VALVE Electronic Boost Control
|
1 |
|
| 21 |
8M0162821 |
ISOLATER Bypass
|
3 |
|
| 22 |
8M0161440 |
SCREW (M6 x 14)
|
4 |
|
| 23 |
88552514 |
SCREW (M6 x 14 MM) Stainless Steel
|
3 |
|
| 24 |
888988025 |
CLAMP (63.5 mm)
|
1 |
|
| 25 |
8M0103810 |
SCREW (M6 x 45 MM) Stainless Steel
|
4 |
|
| 26 |
8M0159633 |
GASKET BYPASS DUCT
|
2 |
|
| 27 |
8M0103806 |
SCREW (M6 x 20 MM) Stainless Steel
|
4 |
|
| 28 |
8M0159631 |
BYPASS DUCT ASSEMBLY
|
1 |
superseded
|
| 29 |
8M0159611 |
GASKET CAC INLET
|
2 |
|
| 3 |
NSS |
NOT SOLD SEPARATE O-Ring
|
2 |
|
| 30 |
8M0159635 |
SCREW M8 x 25 HEX FLANGE HD
|
6 |
|
| 31 |
8M0180507 |
FITTING
|
2 |
|
| 32 |
8M0103807 |
SCREW (M6 x 25 mm) Stainless Steel
|
10 |
|
| 33 |
8M0084726 |
PIN Dowel
|
4 |
|
| 34 |
8M0153609 |
GROMMET
|
2 |
|
| 35 |
8M0161644 |
FUSE 200A Blue
|
1 |
|
| 36 |
88552612 |
SCREW (M8 x 12)
|
1 |
|
| 37 |
8M0146003 |
NUT M8 x 1.25 Hex
|
2 |
|
| 38 |
401388 |
NUT (M8) Stainless Steel
|
1 |
|
| 39 |
8M0212643 |
BUS BAR ASSEMBLY
|
1 |
|
| 4 |
8M0142578 |
GASKET MAT Sensor
|
1 |
|
| 40 |
8M0080651 |
SCREW (M6 x 20)
|
5 |
|
| 41 |
8M0199448 |
COVER Charge Air Cooler
|
1 |
|
| 5 |
891663001 |
SENSOR Temperature
|
1 |
|
| 6 |
40056107 |
SCREW (M5 x 16)
|
2 |
|
| 7 |
8M0175149 |
GASKET Intake
|
2 |
|
| 8 |
8M0177539 |
SCREW (M6 x 14) Torx Pan HD
|
2 |
|
| 9 |
8M0210492 |
SENSOR TMAPH
|
1 |
|
