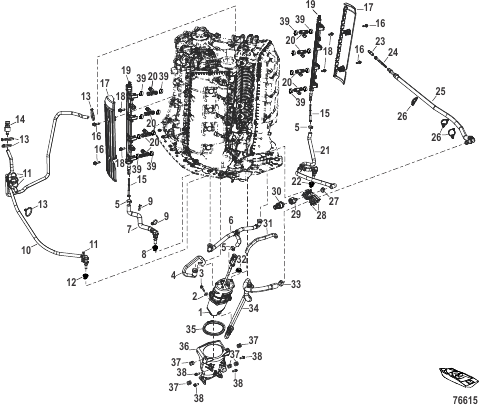

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0178250 |
FUEL SUPPLY MODULE
|
1 |
superseded
|
| 10 |
8M0161388 |
HOSE ASSEMBLY MAP SENSOR
|
1 |
|
| 11 |
816311T |
TIE STRAP (8.00 Inches)
|
5 |
|
| 12 |
884546 |
GROMMET
|
1 |
|
| 13 |
816311T |
TIE STRAP (8.00 Inches)
|
4 |
|
| 14 |
8M6000639 |
SENSOR Pressure MAP
|
1 |
superseded
|
| 15 |
8M0090809 |
SCREEN Fuel Rail
|
2 |
|
| 16 |
8M0005773 |
SCREW (M6 x 14) Shoulder HEX FLG SS
|
4 |
|
| 17 |
8M0142475 |
COVER Fuel Rail, Port
|
1 |
|
| 17 |
8M0142476 |
COVER Fuel Rail, Starboard
|
1 |
|
| 18 |
8M0142830 |
SCREW (M6 x 20)
|
4 |
|
| 19 |
8M0182333 |
FUEL RAIL Port
|
1 |
superseded
|
| 19 |
8M0182332 |
FUEL RAIL Starboard
|
1 |
superseded
|
| 2 |
65567 |
WASHER (.265 x .750 x .048) Stainless Steel
|
1 |
|
| 20 |
8M0161390 |
FUEL INJECTOR
|
8 |
|
| 21 |
8M0161394 |
HOSE ASSEMBLY FUEL HP STBD RAIL
|
1 |
|
| 22 |
884546 |
GROMMET
|
1 |
|
| 23 |
863156 |
GRAB TAB
|
1 |
|
| 24 |
8M0179353 |
SCREEN Fuel Filter
|
1 |
|
| 25 |
8M0161391 |
HOSE ASSEMBLY FUEL INLET
|
1 |
|
| 26 |
899145 |
CLIP Tie Strap
|
3 |
|
| 27 |
NSS |
NOT SOLD SEPARATE Clamp
|
1 |
|
| 28 |
883066 |
CLIP (.865)
|
2 |
|
| 29 |
8M0210494 |
ADAPTER Fuel Sensor
|
1 |
|
| 3 |
8M0103807 |
SCREW (M6 x 25 mm) Stainless Steel
|
1 |
|
| 30 |
8M0159600 |
SENSOR Pressure
|
1 |
|
| 31 |
8M0161408 |
HOSE (FSM TO TELL TALE)
|
1 |
|
| 32 |
8M0217289 |
GROMMET
|
1 |
|
| 33 |
855228 |
CLAMP
|
1 |
|
| 34 |
8M0210505 |
HOSE ASSEMBLY
|
1 |
|
| 35 |
8M0037209 |
GROMMET FSM Retainer
|
1 |
|
| 36 |
8M0142722 |
BRACKET FSM
|
1 |
|
| 37 |
8M0142724 |
GROMMET
|
5 |
|
| 38 |
8M0103805 |
SCREW (M6 x 16mm) Stainless Steel
|
4 |
|
| 39 |
8M0221321 |
ORING KIT Contains 6 Upper and Lower Orings
|
1 |
|
| 4 |
8M0142432 |
HOSE Intake to FSM
|
1 |
superseded
|
| 5 |
8M0142585 |
CLAMP (16.2 x 7 x .6 MM)
|
3 |
|
| 6 |
8M0142437 |
HOSE ASSEMBLY FSM To Fuel Rail
|
1 |
|
| 7 |
8M0142442 |
HOSE ASSEMBLY FSM To Port Rail
|
1 |
|
| 8 |
884546 |
GROMMET
|
1 |
|
| 9 |
816311T |
TIE STRAP (8.00 Inches)
|
2 |
|
