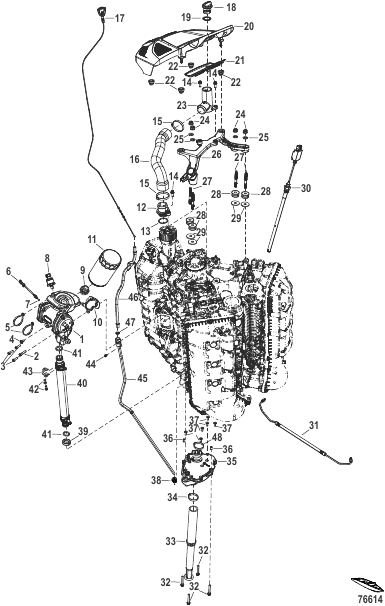

Oil System
Parts (53)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0210470 |
LONG BLOCK ASSEMBLY LONG BLOCK ASSEMBLY |
1 | superseded |
| - | 8M0210444 |
GASKET SET Longblock GASKET SET Longblock |
1 | |
| 1 | 8M0159625 |
OIL COOLER ASSEMBLY OIL COOLER ASSEMBLY |
1 | |
| 10 | 8M0159627 |
GASKET OIL FILTER APAPTER GASKET OIL FILTER APAPTER |
1 | |
| 11 | 8M0176312 |
OIL FILTER QuickSilver OIL FILTER QuickSilver |
1 | |
| 11 | 8M0123025 |
МАСЛЯНЫЙ ФИЛЬТР Mercury OIL FILTER Mercury |
1 | |
| 12 | 8M0142468 |
ТРУБА Заливка масла TUBE Oil Fill |
1 | |
| 13 | 8M0044601 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 14 | 8M0103805 |
ВИНТ (M6 x 16 ММ), нержавеющая сталь SCREW (M6 x 16mm) Stainless Steel |
3 | |
| 15 | 8M6001459 |
ЗАЖИМ (45.5) CLAMP (45.5) |
2 | |
| 16 | 8M0190557 |
HOSE Oil Fill HOSE Oil Fill |
1 | |
| 17 | 8M0142576 |
ЩУП DIPSTICK |
1 | |
| 18 | 8M0142290 |
ПРОБКА Масло CAP Oil |
1 | |
| 19 | 8M0204673 |
O-Ring .921 x .139 O-Ring .921 x .139 |
1 | |
| 2 | 8M0218074 |
SCREW SCREW |
1 | |
| 20 | 8M0210474 |
COVER Flywheel COVER Flywheel |
1 | |
| 21 | 8M0142470 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | |
| 22 | 8M0096302 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
4 | |
| 23 | 8M0142478 |
ГОРЛОВИНА Заливка масла NECK Oil Fill |
1 | |
| 24 | 826365 |
ГАЙКА (M8) NUT (M8) |
4 | |
| 25 | 8M0204690 |
WASHER (.344 x .688 x .065) Stainless Steel WASHER (.344 x .688 x .065) Stainless Steel |
4 | |
| 26 | 8M0142467 |
КРОНШТЕЙН Заливка масла BRACKET Oil Fill |
1 | |
| 27 | 8M0022161 |
ШПИЛЬКА (M8 x 71,5) STUD (M8 x 71.5) |
4 | |
| 28 | 8M0183795 |
MOUNT CENTER MOUNT CENTER |
4 | |
| 29 | 8M0142674 |
ШАЙБА Плоск. WASHER Plain |
4 | |
| 3 | 8M0218075 |
SCREW SCREW |
3 | |
| 30 | 8M0142265 |
ДАТЧИК Уровень масла SENSOR Oil Level |
1 | |
| 31 | 8M0168882 |
HOSE Oil, Cylinder Head to Supercharger HOSE Oil, Cylinder Head to Supercharger |
1 | |
| 32 | 8M0142401 |
ВИНТ (M6) HX FL УМЕНЬШЕННАЯ ГОЛОВКА SCREW (M6) HX FL REDUCED HEAD |
4 | |
| 33 | 8M0142402 |
МАСЛОЗАБОРНИК В СБОРЕ OIL PICK UP ASSEMBLY |
1 | |
| 34 | 8M0187146 |
CLAMP CLAMP |
1 | |
| 35 | 8M0210447 |
OIL PUMP ASSEMBLY OIL PUMP ASSEMBLY |
1 | superseded |
| 36 | 8M0142408 |
ШТИФТ Штифт DOWEL Pin |
2 | |
| 37 | 8M0142407 |
ВИНТ (M6) ПЛОСКАЯ ГОЛОВКА С ВНУТРЕННИМ ШЕСТИГРАННИКОМ X 16 LG SCREW (M6) HEX SOCKET FLAT X 16 LG |
6 | |
| 38 | 8M0178207 |
GROMMET GROMMET |
1 | |
| 39 | 8M0200113 |
FACE SEAL FACE SEAL |
1 | |
| 4 | 8M0218076 |
SCREW SCREW |
1 | |
| 40 | 8M0218077 |
OIL COOLER OIL COOLER |
1 | |
| 41 | 8M0171370 |
SEAL Oil Tube SEAL Oil Tube |
2 | |
| 42 | 8M0161440 |
SCREW (M6 x 14) SCREW (M6 x 14) |
2 | |
| 43 | 8M0142484 |
КРОНШТЕЙН Масляный фильтр BRACKET Oil FIlter |
1 | |
| 44 | 8M0103804 |
ВИНТ (M6 x 12 мм), нержавеющая сталь SCREW (M6 x 12 MM) Stainless Steel |
1 | |
| 45 | 8M0142463 |
ТРУБА Щуп TUBE Dipstick |
1 | superseded |
| 46 | 8M0159624 |
TUBE DIPSTICK UPPER TUBE DIPSTICK UPPER |
1 | |
| 47 | 8M0142481 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0,362 x 0,103) O-RING (0.362 x 0.103) |
1 | |
| 48 | 8M0199965 |
O-RING O-RING |
1 | superseded |
| 5 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
2 | |
| 6 | 8M0205787 |
SENSOR Temperature Oil Temperature SENSOR Temperature Oil Temperature |
1 | |
| 7 | 896699 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (1.78 мм x 0.08 мм) O-RING (1.78 mm x .08 mm) |
1 | |
| 8 | 8M0142688 |
ДАТЧИК Давление SENSOR Pressure (Oil/Water) |
1 | |
| 9 | 8M0159626 |
ADAPTER OIL FILTER ADAPTER OIL FILTER |
1 | |
| NS | 8M0213289 |
DECAL Check Engine DECAL Check Engine |
1 | |
| NS | 8M0080154 |
НАКЛЕЙКА ЗНАЧОК M, синий DECAL M-ICON, Blue |
1 |
