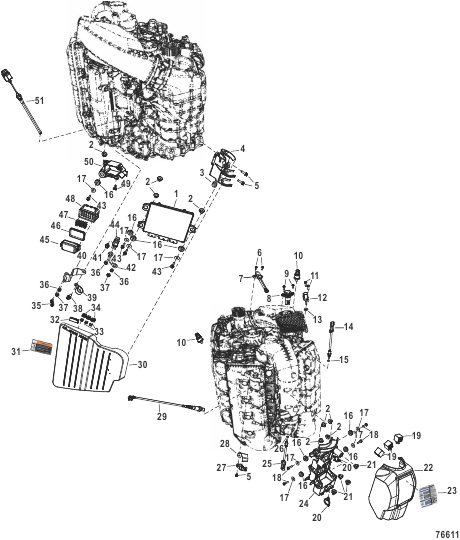

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0210470 |
LONG BLOCK ASSEMBLY
|
1 |
superseded
|
| 1 |
8M0227661 |
PCM 500R DTS/JPO
|
1 |
|
| 10 |
8M0142688 |
SENSOR Pressure (Oil/Water)
|
2 |
|
| 11 |
40056107 |
SCREW (M5 x 16)
|
2 |
|
| 12 |
891663001 |
SENSOR Temperature
|
1 |
|
| 13 |
8M0142578 |
GASKET MAT Sensor
|
1 |
|
| 14 |
8M0205787 |
SENSOR Temperature Exhaust Temperature
|
2 |
|
| 15 |
896699 |
O-RING (1.78 mm x .08 mm)
|
1 |
|
| 16 |
8M0190980 |
GROMMET
|
8 |
|
| 17 |
65567 |
WASHER (.265 x .750 x .048) Stainless Steel
|
8 |
|
| 18 |
8M0142686 |
SCREW (M6 x 25)
|
4 |
|
| 19 |
8M0057697 |
CUBE RELAY
|
3 |
superseded
|
| 19 |
8M0207772 |
RELAY Trim
|
2 |
superseded
|
| 2 |
856954 |
BUSHING
|
8 |
|
| 20 |
899145 |
CLIP Tie Strap
|
2 |
|
| 21 |
8M0096302 |
GROMMET
|
4 |
|
| 22 |
8M0142479 |
COVER Electrical Plate
|
1 |
|
| 23 |
8M0213291 |
DECAL Maintenance Schedule
|
1 |
|
| 24 |
8M0159601 |
PLATE ELECTRICAL
|
1 |
|
| 25 |
8M0161580 |
SENSOR Temperature Exhaust
|
1 |
|
| 26 |
896699 |
O-RING (1.78 mm x .08 mm)
|
1 |
|
| 27 |
8M0011987 |
SENSOR Cam Position
|
1 |
superseded
|
| 28 |
8M0142691 |
BRACKET Cam Sensor
|
1 |
|
| 29 |
8M0142695 |
SENSOR Oxygen
|
1 |
|
| 3 |
8M0153609 |
GROMMET
|
1 |
|
| 30 |
8M0210498 |
COVER ECU
|
1 |
|
| 31 |
8M0142569 |
DECAL Warning
|
1 |
|
| 32 |
895099 |
EXTRACTOR Fuse
|
1 |
|
| 33 |
83296910 |
FUSE Mini - Red - 10 Ampere
|
1 |
|
| 33 |
832969T20 |
FUSE Mini - Yellow - 20 Ampere
|
2 |
|
| 34 |
8M0047886 |
HOLDER Spare Fuse
|
3 |
|
| 35 |
8M0103804 |
SCREW (M6 x 12 MM) Stainless Steel
|
2 |
|
| 36 |
8M0146003 |
NUT M8 x 1.25 Hex
|
3 |
|
| 37 |
401388 |
NUT (M8) Stainless Steel
|
2 |
|
| 38 |
88552620 |
SCREW (M8 x 20)
|
1 |
|
| 39 |
858424 |
CLAMP
|
1 |
|
| 4 |
8M0216021 |
BRACKET 14 Pin
|
1 |
|
| 40 |
8M0175480 |
BRACKET Ground Assembly
|
1 |
|
| 41 |
88552612 |
SCREW (M8 x 12)
|
1 |
|
| 42 |
8M0212643 |
BUS BAR ASSEMBLY
|
1 |
|
| 43 |
8M0103807 |
SCREW (M6 x 25 mm) Stainless Steel
|
4 |
|
| 44 |
8M0161644 |
FUSE 200A Blue
|
1 |
|
| 45 |
8M0147858 |
COVER Fuse Box
|
1 |
|
| 46 |
8M0147903 |
SEAL Fuse Box
|
1 |
|
| 47 |
8M0207797 |
FUSE Mini Gray 2 Ampere
|
1 |
|
| 47 |
832969T05 |
FUSE Mini - Tan - 5 Ampere
|
2 |
|
| 47 |
83296910 |
FUSE Mini - Red - 10 Ampere
|
1 |
|
| 47 |
832969T15 |
FUSE Mini - Blue - 15 Ampere
|
1 |
|
| 47 |
832969T20 |
FUSE Mini - Yellow - 20 Ampere
|
4 |
|
| 48 |
NSS |
NOT SOLD SEPARATE Connector-Fuse Block
|
1 |
|
| 49 |
879962 |
CLIP
|
1 |
|
| 5 |
8M0103806 |
SCREW (M6 x 20 MM) Stainless Steel
|
3 |
|
| 50 |
NSS |
NOT SOLD SEPARATE Mount-Fuse Block
|
1 |
|
| 51 |
8M0142265 |
SENSOR Oil Level
|
1 |
|
| 6 |
40011106 |
SCREW (M5 x 13) Stainless Steel
|
2 |
|
| 7 |
8M0082988 |
SENSOR Crankshaft Position
|
1 |
|
| 8 |
8M0210492 |
SENSOR TMAPH
|
1 |
|
| 9 |
8M0177539 |
SCREW (M6 x 14) Torx Pan HD
|
2 |
|
