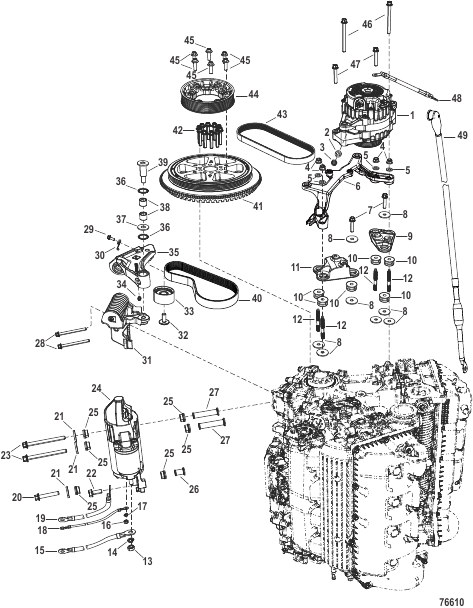

Charging System
Parts (50)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0210470 |
LONG BLOCK ASSEMBLY LONG BLOCK ASSEMBLY |
1 | superseded |
| 1 | 8M0205478 |
ALTERNATOR ALTERNATOR |
1 | |
| 10 | 8M0183795 |
MOUNT CENTER MOUNT CENTER |
6 | |
| 11 | 8M0142672 |
КРОНШТЕЙН Генератор Port BRACKET Alternator Port |
1 | |
| 12 | 8M0022161 |
ШПИЛЬКА (M8 x 71,5) STUD (M8 x 71.5) |
4 | |
| 13 | 8M0146003 |
ГАЙКА M8 x 1,25 шестигран. NUT M8 x 1.25 Hex |
1 | |
| 14 | 400257 |
СТОПОРНАЯ ШАЙБА (M8) LOCKWASHER (M8) |
1 | |
| 15 | 8M0191167 |
CABLE Ground Starter Motor to Hot Stud CABLE Ground Starter Motor to Hot Stud |
1 | |
| 16 | 400211 |
ГАЙКА (M5), нержавеющая сталь NUT (M5) Stainless Steel |
1 | |
| 17 | 400255 |
СТОПОРНАЯ ШАЙБА (M5) LOCKWASHER (M5) |
1 | |
| 18 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Harness to Solenoid NOT SOLD SEPARATE Harness to Solenoid |
1 | |
| 19 | 8M0159604 |
GROUND STRAP STARTER GROUND STRAP STARTER |
1 | |
| 2 | 8M0151156 |
SPACER SPACER |
1 | |
| 20 | 88552645 |
ВИНТ (M8X45) SCREW (M8X45) |
1 | |
| 21 | 43430 |
ШАЙБА WASHER |
3 | |
| 22 | 8M0214929 |
SCREW (M8 x 20) SCREW (M8 x 20) |
1 | |
| 23 | 8M0142677 |
ВИНТ (M8 x 85) SCREW (M8 x 85) |
2 | |
| 24 | 8M0199753 |
STARTER STARTER |
1 | |
| 25 | 8M0154659 |
MOUNT TUBULAR 8 MM MOUNT TUBULAR 8 MM |
6 | |
| 26 | 8M0070368 |
ПРОСТАВКА (В.Д. 8.3 X Н.Д. 11.8) SPACER (8.3 I.D. X 11.8 O.D.) |
1 | |
| 27 | 8M0070369 |
ПРОСТАВКА (В.Д. 8.3 X Н.Д. 11.8) SPACER (8.3 I.D. X 11.8 O.D.) |
2 | |
| 28 | 8M0103817 |
ВИНТ (M8 x 60) SCREW (M8 x 60) |
2 | |
| 29 | 88552514 |
ВИНТ (M6 x 14 мм), нержавеющая сталь SCREW (M6 x 14 MM) Stainless Steel |
1 | |
| 3 | 401388 |
ГАЙКА (M8), нержавеющая сталь NUT (M8) Stainless Steel |
1 | |
| 30 | 8M0210496 |
BRACKET Harness BRACKET Harness |
1 | |
| 31 | 8M0210487 |
TENSIONER ASSEMBLY TENSIONER ASSEMBLY |
1 | |
| 32 | 885349501 |
ВИНТ SCREW |
1 | |
| 33 | 8M0164261 |
PULLEY Idler PULLEY Idler |
1 | |
| 34 | 8M0169588 |
FITTING Grease FITTING Grease |
1 | |
| 35 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Tensioner Arm NOT SOLD SEPARATE Tensioner Arm |
1 | |
| 36 | 896522 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (799 x 0.103) O-RING (799 x .103) |
2 | |
| 37 | 4002320 |
ШАЙБА WASHER |
1 | |
| 38 | 823943 |
ВТУЛКА BUSHING |
2 | |
| 39 | 8M0175978 |
SCREW Tensioner SCREW Tensioner |
1 | |
| 4 | 826365 |
ГАЙКА (M8) NUT (M8) |
4 | |
| 40 | 8M0210486 |
BELT Supercharger BELT Supercharger |
1 | |
| 41 | 8M0210472 |
FLYWHEEL ASSEMBLY FLYWHEEL ASSEMBLY |
1 | |
| 42 | 8M0142384 |
ВИНТ (M8 x 42) ГОЛОВКА ШЕСТИГР. ФЛАНЦА SCREW (M8 x 42) Hx Flg Head |
10 | |
| 43 | 8M0218433 |
BELT BELT |
1 | |
| 44 | 8M0210473 |
PULLEY ASSEMBLY PULLEY ASSEMBLY |
1 | |
| 45 | 8M0159635 |
SCREW M8 x 25 HEX FLANGE HD SCREW M8 x 25 HEX FLANGE HD |
6 | |
| 46 | 8M0142677 |
ВИНТ (M8 x 85) SCREW (M8 x 85) |
2 | |
| 47 | 8M0142460 |
ВИНТ (M8 x 45) ШЕСТИГР. ФЛАНЕЦ SCREW (M8 x 45) Hex Flg |
2 | |
| 48 | 8M0142678 |
КАБЕЛЬ В СБОРЕ Заземление CABLE ASSEMBLY Ground |
1 | |
| 49 | 8M0178913 |
CABLE ASSEMBLY Fusable Link CABLE ASSEMBLY Fusable Link |
1 | |
| 5 | 8M0204690 |
WASHER (.344 x .688 x .065) Stainless Steel WASHER (.344 x .688 x .065) Stainless Steel |
4 | |
| 6 | 8M0142467 |
КРОНШТЕЙН Заливка масла BRACKET Oil Fill |
1 | |
| 7 | 8M0145100 |
ВИНТ Шестигранный фланец М8 SCREW M8 Hex Flange |
2 | |
| 8 | 8M0142674 |
ШАЙБА Плоск. WASHER Plain |
8 | |
| 9 | 8M0142673 |
КРОНШТЕЙН Генератор Starboard BRACKET Alternator Starboard |
1 |
