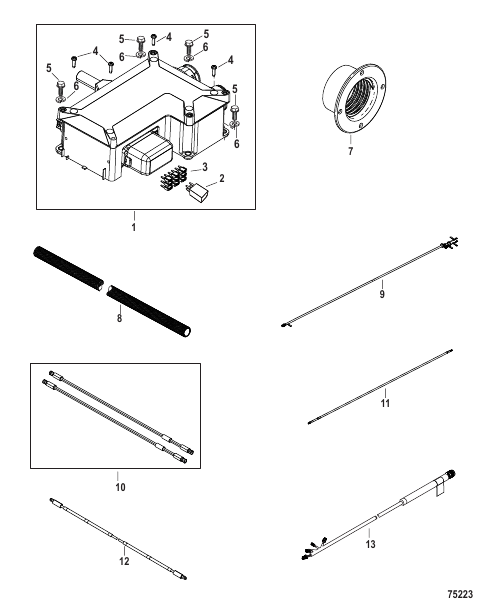

Accessories
Parts (43)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0221497 |
COVER-STORAGE 350-425 HP Black COVER-STORAGE 350-425 HP Black |
1 | |
| - | 8M0228538 |
COVER-STORAGE 350-425 HP White COVER-STORAGE 350-425 HP White |
1 | |
| - | 8M0228524 |
COVER-VENTED 350HP Black COVER-VENTED 350HP Black |
1 | |
| - | 8M0228525 |
COVER-VENTED 350HP White COVER-VENTED 350HP White |
1 | |
| - | 8M0228526 |
COVER-VENTED 400HP Black COVER-VENTED 400HP Black |
1 | |
| - | 8M0228527 |
COVER-VENTED 400HP White COVER-VENTED 400HP White |
1 | |
| - | 825191A03 |
КОМПЛЕКТ РУКАВА Подключение HOSE KIT Rigging |
1 | |
| - | 8M0192174 |
RIG TUBE KIT 2 Inch RIG TUBE KIT 2 Inch |
1 | |
| - | 8M0185657 |
GROMMET Ingress 2.5 Inch GROMMET Ingress 2.5 Inch |
1 | |
| - | 8M0225356 |
CLAMP KIT Clamp Kit-Complete CLAMP KIT Clamp Kit-Complete |
- | |
| - | 8M0187098 |
HARNESS V10 Rig Center HARNESS V10 Rig Center |
1 | |
| - | 8M0176937 |
HARNESS EXTENSION 5 FT HARNESS EXTENSION 5 FT |
1 | |
| - | 8M0176939 |
HARNESS EXTENSION 10 FT HARNESS EXTENSION 10 FT |
1 | |
| - | 8M0176940 |
HARNESS EXTENSION 15 FT HARNESS EXTENSION 15 FT |
1 | |
| - | 8M0176941 |
HARNESS EXTENSION 20 FT HARNESS EXTENSION 20 FT |
1 | |
| - | 8M0176942 |
HARNESS EXTENSION 25 FT HARNESS EXTENSION 25 FT |
1 | |
| 1 | 8M0168337 |
RIG CENTER RIG CENTER |
1 | |
| 10 | 8M0149414 |
CABLE KIT Battery CABLE KIT Battery |
1 | |
| 11 | 8M0171478 |
CABLE Battery Isolator CABLE Battery Isolator |
1 | |
| 12 | 8M0149788 |
CHARGE CABLE 2awg Red, 3 Ft CHARGE CABLE 2awg Red, 3 Ft |
AR | |
| 12 | 8M0149789 |
CHARGE CABLE 2awg Red, 6 Ft CHARGE CABLE 2awg Red, 6 Ft |
AR | |
| 12 | 8M0149790 |
CHARGE CABLE 2awg Red, 10 Ft CHARGE CABLE 2awg Red, 10 Ft |
AR | |
| 13 | 8M0171475 |
HARNESS 21 Pin Umbilical (10 Foot) HARNESS 21 Pin Umbilical (10 Foot) |
AR | |
| 13 | 8M0171476 |
HARNESS 21 Pin Umbilical (15 Foot) HARNESS 21 Pin Umbilical (15 Foot) |
AR | |
| 13 | 8M0171477 |
HARNESS 21 Pin Umbilical (20 Foot) HARNESS 21 Pin Umbilical (20 Foot) |
AR | |
| 13 | 8M0179757 |
HARNESS 21 Pin Umbilical (25 Foot) HARNESS 21 Pin Umbilical (25 Foot) |
AR | |
| 2 | 8M0231744 |
RELAY Micro ISO 12VDC 280 RELAY Micro ISO 12VDC 280 |
2 | |
| 3 | 8M0207797 |
FUSE Mini Gray 2 Ampere FUSE Mini Gray 2 Ampere |
1 | |
| 3 | 832969T05 |
ПЛАВКИЙ ПРЕДОХРАНИТЕЛЬ Mини – коричневый – 5 A FUSE Mini - Tan - 5 Ampere |
2 | |
| 4 | 88904 |
ВИНТ (№8-18 x 0.620) SCREW (#8-18 x .620) |
4 | |
| 5 | 4000327 |
ВИНТ (M6 x 14) SCREW (M6 x 14) |
4 | |
| 6 | 78968 |
СТОПОРНАЯ ШАЙБА Внутренний (0.250) LOCKWASHER Internal (.250) |
4 | |
| 7 | 8M0180071 |
HOUSING Rig Hose HOUSING Rig Hose |
1 | |
| 8 | 8M0180055 |
RIG TUBE White (5 Foot) RIG TUBE White (5 Foot) |
AR | |
| 8 | 8M0180056 |
RIG TUBE White (50 Foot) RIG TUBE White (50 Foot) |
AR | |
| 8 | 8M0180053 |
RIG TUBE Black (5 Foot) RIG TUBE Black (5 Foot) |
AR | |
| 8 | 8M0180054 |
RIG TUBE Black (50 Foot) RIG TUBE Black (50 Foot) |
AR | |
| 9 | 8M0150521 |
POWER HARNESS 3 FT POWER HARNESS 3 FT |
1 | |
| 9 | 8M0150522 |
POWER HARNESS 6 FT POWER HARNESS 6 FT |
1 | |
| 9 | 899887T13 |
ЖГУТ ПРОВОДОВ В СБОРЕ Электропроводка, питание (10 фт.) HARNESS ASSEMBLY Wiring, Power (10 Feet) |
1 | |
| 9 | 8M0150523 |
POWER HARNESS 15 FT POWER HARNESS 15 FT |
1 | |
| 9 | 899887T14 |
ЖГУТ ПРОВОДОВ В СБОРЕ Электропроводка, питание (20 фт.) HARNESS ASSEMBLY Wiring, Power (20 Feet) |
1 | |
| 9 | 8M0150524 |
POWER HARNESS 25 FT POWER HARNESS 25 FT |
1 |
