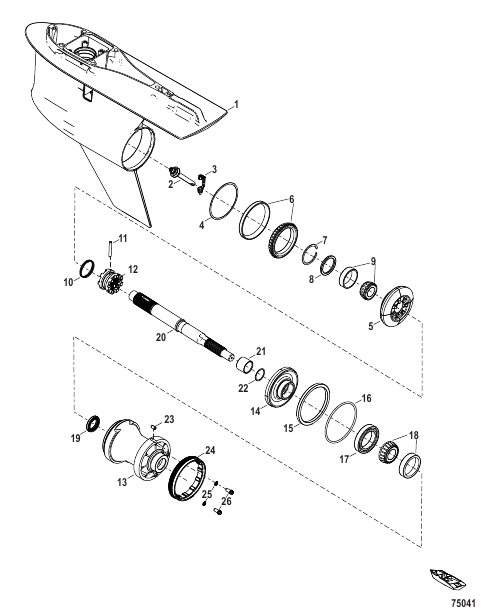

Gear Housing, Prop Shaft - Standard Rotation, 6.44 Torpedo (2.08 Gear Ratio)
Parts (37)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0200084 |
GEAR HOUSING ASSEMBLY (Standard Long) 6.44 GEAR HOUSING ASSEMBLY (Standard Long) 6.44 |
1 | superseded |
| - | 8M0200085 |
GEAR HOUSING ASSEMBLY (Standard X-Long) 6.44 GEAR HOUSING ASSEMBLY (Standard X-Long) 6.44 |
1 | superseded |
| - | 8M0200086 |
GEAR HOUSING ASSEMBLY (Standard XX-Long) 6.44 GEAR HOUSING ASSEMBLY (Standard XX-Long) 6.44 |
1 | superseded |
| - | 8M0200087 |
GEAR HOUSING ASSEMBLY (Standard XXX-Long) 6.44 GEAR HOUSING ASSEMBLY (Standard XXX-Long) 6.44 |
1 | superseded |
| - | 8M0200092 |
GEAR HOUSING ASSEMBLY (Standard Long) 6.44 (SeaPro) GEAR HOUSING ASSEMBLY (Standard Long) 6.44 (SeaPro) |
1 | superseded |
| - | 8M0200093 |
GEAR HOUSING ASSEMBLY (Standard X-Long) 6.44 (SeaPro) GEAR HOUSING ASSEMBLY (Standard X-Long) 6.44 (SeaPro) |
1 | superseded |
| - | 8M0200094 |
GEAR HOUSING ASSEMBLY (Standard XX-Long) 6.44 (SeaPro) GEAR HOUSING ASSEMBLY (Standard XX-Long) 6.44 (SeaPro) |
1 | superseded |
| - | 8M0200095 |
GEAR HOUSING ASSEMBLY (Standard XXX-Long) 6.44 (SeaPro) GEAR HOUSING ASSEMBLY (Standard XXX-Long) 6.44 (SeaPro) |
1 | superseded |
| - | 8M0200137 |
SEAL KIT Gearcase SEAL KIT Gearcase |
1 | |
| - | 8M0200104 |
GEAR ASSEMBLY Standard Rotation, 2.08 Gear Ratio GEAR ASSEMBLY Standard Rotation, 2.08 Gear Ratio |
1 | |
| 1 | 8M0200100 |
GEAR HOUSING ASSEMBLY Basic, Standard GEAR HOUSING ASSEMBLY Basic, Standard |
1 | superseded |
| 1 | 8M0200102 |
GEAR HOUSING ASSEMBLY Basic, SeaPro GEAR HOUSING ASSEMBLY Basic, SeaPro |
1 | superseded |
| 10 | 8M0200145 |
SPRING SPRING |
1 | |
| 11 | 8M0200146 |
PIN Cross PIN Cross |
1 | |
| 12 | 8M0200147 |
CLUTCH CLUTCH |
1 | |
| 13 | 8M0200148 |
BEARING CARRIER ASSEMBLY BEARING CARRIER ASSEMBLY |
1 | |
| 14 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Reverse Gear, 27 Tooth NOT SOLD SEPARATE Reverse Gear, 27 Tooth |
1 | |
| 15 | 8M0200150 |
RING Thrust RING Thrust |
1 | |
| 16 | 8M0200151 |
O-RING (5.475 x .210) O-RING (5.475 x .210) |
1 | |
| 17 | 8M0200152 |
BEARING Ball BEARING Ball |
1 | |
| 18 | 8M0200165 |
BEARING ASSEMBLY Roller Taper (Cup/Cone) BEARING ASSEMBLY Roller Taper (Cup/Cone) |
1 | |
| 19 | 8M0200154 |
SEAL Oil SEAL Oil |
1 | |
| 2 | 8M0200138 |
SPOOL ASSEMBLY SPOOL ASSEMBLY |
1 | superseded |
| 20 | 8M0200155 |
SHAFT Propeller SHAFT Propeller |
1 | |
| 21 | 8M0200156 |
SPACER Thrust SPACER Thrust |
1 | |
| 22 | 8M0206007 |
SHIM SET 1.505 x 1.745 (.014 - .044) SHIM SET 1.505 x 1.745 (.014 - .044) |
1 | |
| 23 | 8M0084244 |
ШТИФТ Штифт PIN Dowel, .375 x .620 |
1 | |
| 24 | 8M0200158 |
RETAINER Bearing Carrier RETAINER Bearing Carrier |
1 | |
| 25 | 830749 |
УПЛОТНЕНИЕ SEAL |
2 | superseded |
| 26 | 8M0071653 |
ВИНТ Специальный SCREW Special, .375-16 UNC |
2 | |
| 3 | 8M0046215 |
КОЛЕНЧАТЫЙ ВАЛ, рычаг переключения передач Палец шарнира 1/4 CRANK, Shifter 1/4 Pivot Pin |
1 | superseded |
| 4 | 8M0206006 |
SHIM SET 4.879 x 5.279 x (.010 - .030) SHIM SET 4.879 x 5.279 x (.010 - .030) |
1 | |
| 5 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Forward Gear, 27 Tooth NOT SOLD SEPARATE Forward Gear, 27 Tooth |
1 | |
| 6 | 8M0200141 |
BEARING Roller Taper (Cup/Cone) BEARING Roller Taper (Cup/Cone) |
1 | |
| 7 | 8M0200142 |
RETAINING Ring RETAINING Ring |
1 | |
| 8 | 8M0200143 |
WASHER Thrust WASHER Thrust |
1 | |
| 9 | 8M0200144 |
BEARING Roller Taper (Cup/Cone) BEARING Roller Taper (Cup/Cone) |
1 |
