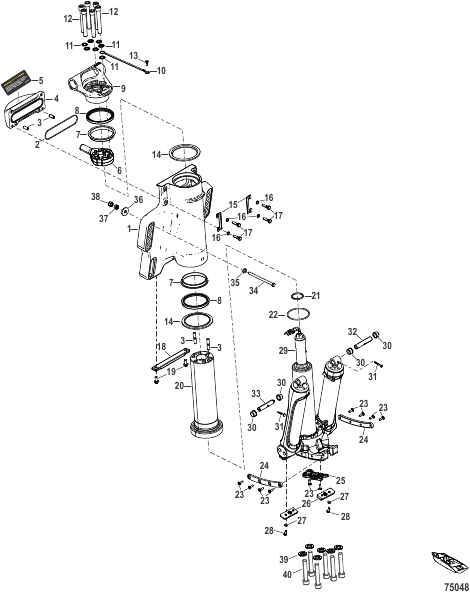

Power Trim/Transom Assembly Counter Rotation
Parts (48)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0182202 |
NUT WASHER KIT NUT WASHER KIT |
AR | |
| 1 | 8M0215621 |
TRANSOM ASSEMBLY Bare TRANSOM ASSEMBLY Bare |
1 | superseded |
| 10 | 8M0214684 |
GROUND STRAP GROUND STRAP |
1 | |
| 11 | 885112 |
ШАЙБА WASHER |
7 | superseded |
| 12 | 8M0204933 |
SCREW M14 x 2 x 105 SOC HD SCREW M14 x 2 x 105 SOC HD |
6 | |
| 13 | 4010612 |
ВИНТ (M6 x 12), нержавеющая сталь SCREW (M6 x 12) Stainless Steel |
1 | |
| 14 | 8806561 |
ПОДШИПНИК BEARING |
2 | superseded |
| 15 | 8M0204930 |
RETAINER RETAINER |
2 | |
| 16 | 8M0204931 |
WASHER (M8 x 12.80 x 1.50) WASHER (M8 x 12.80 x 1.50) |
4 | |
| 17 | 8M0204932 |
SCREW M8 x 1.25 x 30 HEX FLG SCREW M8 x 1.25 x 30 HEX FLG |
4 | |
| 18 | 8M0012083 |
АНОД Aluminum ANODE Aluminum |
1 | superseded |
| 19 | 4010720 |
ВИНТ (M8 x 20) SCREW (M8 x 20) |
2 | |
| 2 | 8M0155530 |
SEAL Pedestal SEAL Pedestal |
1 | |
| 20 | 8M0204937 |
TUBE TUBE |
1 | |
| 21 | 895854 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | superseded |
| 22 | 8M0204938 |
O-RING O-RING |
1 | |
| 23 | 8M0199587 |
SCREW (M6 x 1.0 x 20) SCREW (M6 x 1.0 x 20) |
10 | |
| 24 | 8M0185681 |
WEAR PLATE WEAR PLATE |
2 | |
| 25 | 8M0001734 |
АНОД Aluminum ANODE Aluminum |
1 | superseded |
| 26 | 8M0204939 |
ANODE Aluminum ANODE Aluminum |
2 | |
| 27 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь WASHER (.281 x .500 x .060) Stainless Steel |
2 | superseded |
| 28 | 8M0206596 |
SCREW (M6 x 20) SCREW (M6 x 20) |
2 | |
| 29 | 8M0118297 |
УСИЛИТЕЛЬ ДИФФЕРЕНТА В СБОРЕ POWER TRIM ASSEMBLY |
1 | |
| 3 | 8M0204929 |
PIN (0.375 x 0.875) Dowel PIN (0.375 x 0.875) Dowel |
6 | |
| 30 | 8M0161419 |
BEARING Shoulder BEARING Shoulder |
4 | |
| 31 | 821539 |
ШТИФТ Трехгранный PIN Trilobe |
2 | |
| 32 | 8M0142821 |
ШТИФТ Отверстие головки шатуна PIN Rodeye |
1 | |
| 33 | 8M0164144 |
PIN Rodeye Cap PIN Rodeye Cap |
1 | |
| 34 | 8M0038370 |
ВИНТ (0.500-20 x 5.50) SCREW (.500-20 x 5.50) |
AR | |
| 34 | 8M0185652 |
SCREW (.500-20 x 5.50) Pack of 6 SCREW (.500-20 x 5.50) Pack of 6 |
AR | |
| 34 | 677552 |
ВИНТ (0.500-20 x 6.500) SCREW (.500-20 x 6.500) |
AR | |
| 34 | 8M0185653 |
SCREW (.500-20 x 6.500) Pack of 6 SCREW (.500-20 x 6.500) Pack of 6 |
AR | |
| 34 | 8M0028080 |
ВИНТ (0.500-20 x 7.500) SCREW (.500-20 x 7.500) |
AR | |
| 34 | 8M0185654 |
SCREW (.500-20 x 7.500) Pack of 6 SCREW (.500-20 x 7.500) Pack of 6 |
AR | |
| 34 | 8M0032860 |
ВИНТ (0.500-20 x 8.00) SCREW (.500-20 x 8.00) |
AR | superseded |
| 34 | 8M0185655 |
SCREW (.500-20 x 8.00) Pack of 6 SCREW (.500-20 x 8.00) Pack of 6 |
AR | |
| 35 | 8M0204665 |
WASHER (.530 x .880 x .104) 630 Stainless Steel WASHER (.530 x .880 x .104) 630 Stainless Steel |
6 | |
| 36 | 8M0204648 |
WASHER (1.5 x 3.05 x 0.13) Stainless Steel WASHER (1.5 x 3.05 x 0.13) Stainless Steel |
6 | |
| 37 | 8M0204734 |
NUT (.500-20) HEX, Brass NUT (.500-20) HEX, Brass |
6 | |
| 38 | 82671117 |
NUT (.500-20) |
6 | |
| 39 | 8M0007798 |
ВИНТ (M10 x 65) SCREW (M10 x 65) |
6 | |
| 4 | 893405T |
КРЫШКА COVER |
1 | superseded |
| 40 | 8M0218974 |
WASHER WASHER |
6 | |
| 5 | 8M0161427 |
DECAL Caution Multiple Engine DECAL Caution Multiple Engine |
1 | |
| 6 | 880665T01 |
ARM Рулевой механизм ARM Steering |
1 | |
| 7 | 8806621 |
ПОДШИПНИК BEARING |
2 | superseded |
| 8 | 880661 |
УПЛОТНЕНИЕ SEAL |
2 | superseded |
| 9 | 8M0200074 |
HEAD Steering HEAD Steering |
1 |
