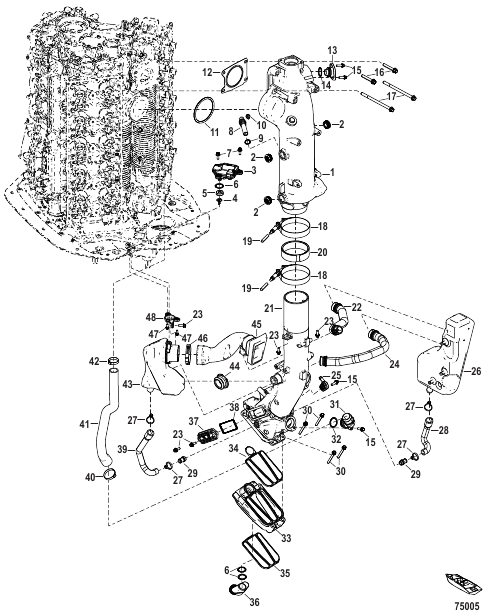

Exhaust
Parts (49)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0200003 |
GASKET SET Powerhead GASKET SET Powerhead |
1 | |
| 1 | 8M0200049 |
MANIFOLD Exhaust MANIFOLD Exhaust |
1 | superseded |
| 10 | 8M0103804 |
ВИНТ (M6 x 12 мм), нержавеющая сталь SCREW (M6 x 12 MM) Stainless Steel |
1 | |
| 11 | 8M0200017 |
O-RING O-RING |
1 | |
| 12 | 8M0200051 |
GASKET Exhaust Manifold GASKET Exhaust Manifold |
1 | |
| 13 | 8M0200014 |
CAP Cam CAP Cam |
1 | |
| 14 | 86614 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (1.049 x 0.103) O-RING (1.049 x .103) |
1 | |
| 15 | 8M0103806 |
ВИНТ (M6 x 20 мм), нержавеющая сталь SCREW (M6 x 20 MM) Stainless Steel |
4 | |
| 16 | 8M0103816 |
SCREW M8 x 50 HEX FLG SCREW M8 x 50 HEX FLG |
2 | |
| 17 | 8M0200052 |
SCREW M8 x 135 HX SCREW M8 x 135 HX |
2 | |
| 18 | 8M0161579 |
CLAMP 93.7 MM CLAMP 93.7 MM |
2 | |
| 19 | 8M0148727 |
ПРОБКА Винил CAP Vinyl |
2 | |
| 2 | 8M0177458 |
PLUG PLUG |
3 | |
| 20 | 8M0172179 |
COUPLING Exhaust Assembly COUPLING Exhaust Assembly |
1 | |
| 21 | 8M0200053 |
PIPE Exhaust PIPE Exhaust |
1 | |
| 22 | 8M0142766 |
РУКАВ Idle Relief HOSE Idle Relief |
1 | |
| 23 | 8M0103805 |
ВИНТ (M6 x 16 ММ), нержавеющая сталь SCREW (M6 x 16mm) Stainless Steel |
5 | |
| 24 | 8M0142741 |
РУКАВ Переходный коллектор, предохранитель холостого хода HOSE Crossover, Idle Relief |
1 | |
| 25 | 8M0157112 |
FITTING STRAINER FITTING STRAINER |
1 | |
| 26 | 8M0200054 |
MUFFLER Starboard MUFFLER Starboard |
1 | |
| 27 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
4 | |
| 28 | 8M0142739 |
РУКАВ Drain Starboard HOSE Drain Starboard |
1 | |
| 29 | 8M0200055 |
FITTING Muffler Drain FITTING Muffler Drain |
2 | |
| 3 | 8M0142768 |
РУЛЕВОЙ ПРИВОД ACTUATOR |
1 | |
| 30 | 8M0142726 |
ВИНТ (M6) SCREW (M6) |
4 | |
| 31 | 8M0142731 |
КОЛЕНЧАТЫЙ ПАТРУБОК FITTING ELBOW |
1 | |
| 32 | 86614 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (1.049 x 0.103) O-RING (1.049 x .103) |
1 | |
| 33 | 8M0200153 |
EXHAUST SEAL CARRIER EXHAUST SEAL CARRIER |
1 | superseded |
| 34 | 8M0200160 |
SEAL Upper SEAL Upper |
1 | |
| 35 | 8M0200201 |
SEAL Lower SEAL Lower |
1 | |
| 36 | 8M0218107 |
FITTING Elbow FITTING Elbow |
1 | |
| 37 | 8M0200058 |
PLATE Block off PLATE Block off |
1 | |
| 38 | 8M0142720 |
УПЛОТНЕНИЕ SEAL |
1 | |
| 39 | 8M0142738 |
РУКАВ Drain Port HOSE Drain Port |
1 | |
| 4 | 8M0142773 |
МУФТА Exhaust Shaft COUPLER Exhaust Shaft |
1 | |
| 40 | 888988011 |
ЗАЖИМ (38,1 ММ) CLAMP (38.1 MM) |
1 | |
| 41 | 8M0142727 |
ТРУБА Выпуск воды TUBE Water Outlet |
1 | |
| 42 | 8M0028753 |
ЗАЖИМ Oetiker (диаметр 31,6) CLAMP Oetiker (31.6 Diameter) |
1 | |
| 43 | 8M0200059 |
MUFFLER Port MUFFLER Port |
1 | superseded |
| 44 | 8M0200060 |
GROMMET Idle Relief GROMMET Idle Relief |
1 | |
| 45 | 8M0200061 |
GROMMET Outlet GROMMET Outlet |
1 | |
| 46 | 8M0200062 |
CLAMP CLAMP |
1 | |
| 47 | 88552514 |
ВИНТ (M6 x 14 мм), нержавеющая сталь SCREW (M6 x 14 MM) Stainless Steel |
2 | |
| 48 | 8M0200140 |
BRACKET BRACKET |
1 | |
| 5 | 8M0142769 |
УПЛОТНЕНИЕ Actuator SEAL Actuator |
1 | |
| 6 | 8M0204650 |
O-RING O-RING |
3 | |
| 7 | 8M0142708 |
ВИНТ (M6) SCREW (M6) |
2 | |
| 8 | 8M0200050 |
FITTING Exhaust FITTING Exhaust |
1 | |
| 9 | 892446 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (14 X 1.78 мм) O-RING (14 X 1.78 MM) |
1 |
