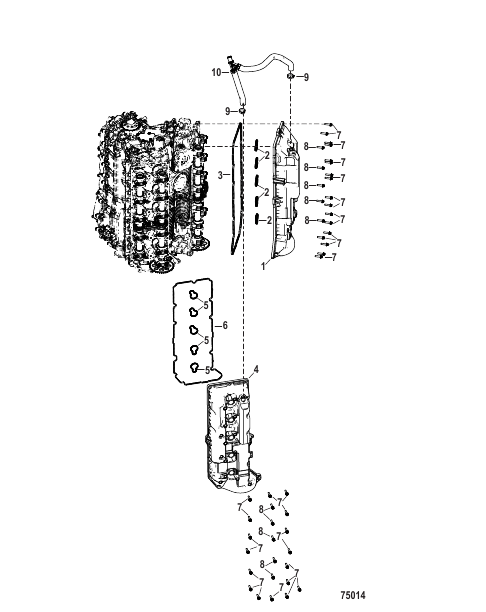

Camshaft Cover
Parts (12)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0200002 |
LONG BLOCK LONG BLOCK |
1 | |
| - | 8M0200003 |
GASKET SET Powerhead GASKET SET Powerhead |
1 | |
| 1 | 8M0200021 |
COVER Camshaft Starboard COVER Camshaft Starboard |
1 | |
| 10 | 8M0200025 |
HOSE ASSEMBLY Breather HOSE ASSEMBLY Breather |
1 | |
| 2 | 8M0179272 |
SEAL Spark Plug SEAL Spark Plug |
5 | |
| 3 | 8M0200022 |
SEAL Cam Cover Starboard SEAL Cam Cover Starboard |
1 | |
| 4 | 8M0200023 |
COVER Camshaft Port COVER Camshaft Port |
1 | |
| 5 | 8M0179272 |
SEAL Spark Plug SEAL Spark Plug |
5 | |
| 6 | 8M0200024 |
SEAL Cam Cover Port SEAL Cam Cover Port |
1 | |
| 7 | 8M0204721 |
SCREW SCREW |
34 | superseded |
| 8 | 8M0103807 |
ВИНТ (M6 x 25 мм), нержавеющая сталь SCREW (M6 x 25 mm) Stainless Steel |
10 | |
| 9 | 855228 |
ЗАЖИМ CLAMP |
2 |
