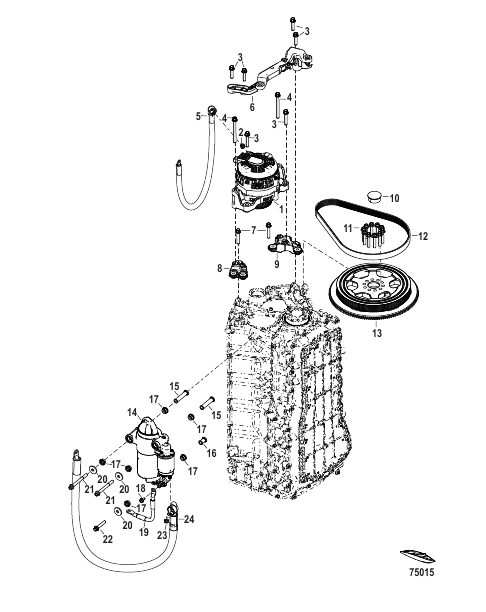

Charging and Starting System
Parts (32)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0149414 |
CABLE KIT Battery CABLE KIT Battery |
1 | |
| - | 8M0149415 |
CABLE Engine to Hot Stud (12ft) Negative CABLE Engine to Hot Stud (12ft) Negative |
1 | |
| - | 8M0149416 |
CABLE Engine to Hot Stud (12ft) Positive CABLE Engine to Hot Stud (12ft) Positive |
1 | |
| - | 8M0200002 |
LONG BLOCK LONG BLOCK |
1 | |
| 1 | 8M0199636 |
ALTERNATOR 150 Amp (12 Volt) ALTERNATOR 150 Amp (12 Volt) |
1 | |
| 1 | 8M0205630 |
ALTERNATOR 100 Amp (48 Volt) ALTERNATOR 100 Amp (48 Volt) |
1 | superseded |
| 10 | 8M0207687 |
PLUG Flywheel PLUG Flywheel |
1 | |
| 11 | 8M0142384 |
ВИНТ (M8 x 42) ГОЛОВКА ШЕСТИГР. ФЛАНЦА SCREW (M8 x 42) Hx Flg Head |
10 | |
| 12 | 8M0178243 |
BELT ACCESSORY 6 Rib (12 Volt) BELT ACCESSORY 6 Rib (12 Volt) |
1 | |
| 12 | 8M0207416 |
BELT ACCESSORY 6 Rib (48 Volt) BELT ACCESSORY 6 Rib (48 Volt) |
1 | |
| 13 | 8M0199947 |
FLYWHEEL FLYWHEEL |
1 | superseded |
| 14 | 8M0199948 |
STARTER ASSEMBLY STARTER ASSEMBLY |
1 | |
| 15 | 8M0070369 |
ПРОСТАВКА (В.Д. 8.3 X Н.Д. 11.8) SPACER (8.3 I.D. X 11.8 O.D.) |
2 | |
| 16 | 8M0070368 |
ПРОСТАВКА (В.Д. 8.3 X Н.Д. 11.8) SPACER (8.3 I.D. X 11.8 O.D.) |
1 | |
| 17 | 8M0154659 |
MOUNT TUBULAR 8 MM MOUNT TUBULAR 8 MM |
6 | |
| 18 | 40011126 |
ВИНТ (M6 x 13), нержавеющая сталь SCREW (M6 x 13) Stainless Steel |
1 | |
| 19 | 8M0199949 |
HARNESS Starter Ground HARNESS Starter Ground |
1 | |
| 2 | 401388 |
ГАЙКА (M8), нержавеющая сталь NUT (M8) Stainless Steel |
1 | |
| 20 | 43430 |
ШАЙБА WASHER |
3 | |
| 21 | 8M0188530 |
SCREW M8 X 80 HEX FLG HD SCREW M8 X 80 HEX FLG HD |
2 | |
| 22 | 88552645 |
ВИНТ (M8X45) SCREW (M8X45) |
1 | |
| 23 | 401388 |
ГАЙКА (M8), нержавеющая сталь NUT (M8) Stainless Steel |
1 | |
| 24 | 8M0199931 |
HARNESS Hot Stud to Starter HARNESS Hot Stud to Starter |
1 | |
| 3 | 8M0142460 |
ВИНТ (M8 x 45) ШЕСТИГР. ФЛАНЕЦ SCREW (M8 x 45) Hex Flg |
6 | |
| 4 | 8M0142677 |
ВИНТ (M8 x 85) SCREW (M8 x 85) |
2 | |
| 5 | 8M0199930 |
HARNESS Hot Stud to Alternator HARNESS Hot Stud to Alternator |
1 | |
| 6 | 8M0199951 |
BRACKET Oil Dipstick BRACKET Oil Dipstick |
1 | |
| 7 | 8M0145100 |
ВИНТ Шестигранный фланец М8 SCREW M8 Hex Flange |
2 | |
| 8 | 8M0193247 |
BRACKET Alternator (12 Volt) Starboard BRACKET Alternator (12 Volt) Starboard |
1 | superseded |
| 8 | 8M0207414 |
BRACKET Alternator (48 Volt) Starboard BRACKET Alternator (48 Volt) Starboard |
1 | |
| 9 | 8M0142693 |
КРОНШТЕЙН Генератор (12 Volt) Port BRACKET Alternator (12 Volt) Port |
1 | superseded |
| 9 | 8M0207415 |
BRACKET Alternator (48 Volt) Port BRACKET Alternator (48 Volt) Port |
1 |
