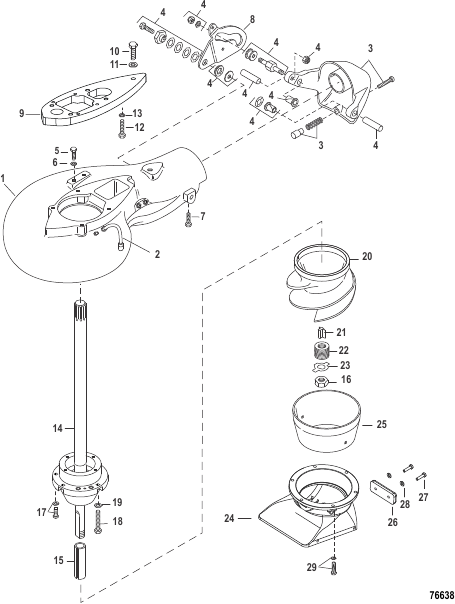

| # | Part Number | Description | Qty | Status |
|---|
| - |
816311T |
TIE STRAP (8.00 Inches) Idle Port Chamber Hose Connection
|
1 |
|
| 1 |
8M0218213 |
VOLUTE HOUSING
|
1 |
|
| 10 |
898101795 |
BOLT
|
1 |
|
| 11 |
879194340 |
WASHER
|
1 |
|
| 12 |
879194254 |
BOLT
|
4 |
|
| 13 |
879194342 |
WASHER
|
4 |
|
| 14 |
8M0218215 |
DRIVESHAFT ASSEMBLY
|
1 |
|
| 15 |
827189 |
SLEEVE
|
1 |
|
| 16 |
827190 |
NUT
|
1 |
|
| 17 |
878388001 |
SCREW
|
1 |
|
| 18 |
879194256 |
BOLT
|
4 |
|
| 19 |
879194342 |
WASHER
|
4 |
|
| 2 |
827490 |
HOSE Lube
|
1 |
|
| 20 |
8M0218216 |
IMPELLER
|
1 |
|
| 21 |
8M0218217 |
KEY Impeller
|
1 |
|
| 22 |
801404625 |
SHIM Impeller
|
1 |
|
| 23 |
801403625 |
TAB WASHER
|
1 |
|
| 24 |
8M0218218 |
INTAKE HOUSING ASSEMBLY
|
1 |
|
| 25 |
827188T04 |
LINER
|
1 |
|
| 26 |
8M0218220 |
ANODE
|
1 |
|
| 27 |
8M0218221 |
BOLT (M6 x 25)
|
2 |
|
| 28 |
8M0218222 |
WASHER
|
2 |
|
| 29 |
167051 |
BOLT (M6 x 20)
|
6 |
|
| 3 |
878378 |
GATE Reverse - With Bumper
|
1 |
|
| 4 |
878376 |
SHIFT LINKAGE KIT
|
1 |
|
| 5 |
16832 |
BOLT (M6 x 16)
|
2 |
|
| 6 |
16826 |
WASHER Stainless Steel
|
2 |
|
| 7 |
NSS |
NOT SOLD SEPARATE Screw
|
1 |
|
| 8 |
898101657 |
SHIFT CAM
|
1 |
|
| 9 |
8M0218214 |
ADAPTER PLATE
|
1 |
|
