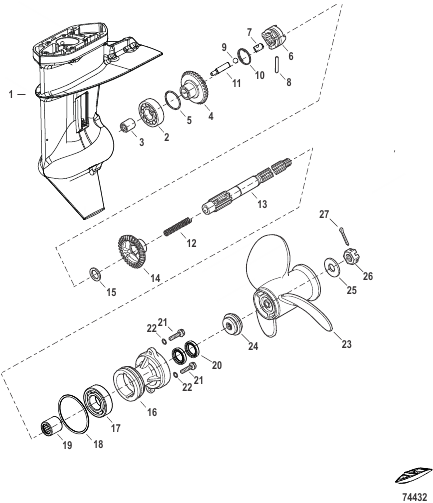

Gear Housing Propeller Shaft -2.17:1
Parts (40)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0187031 |
GEAR HOUSING ASSEMBLY Complete, Short GEAR HOUSING ASSEMBLY Complete, Short |
1 | |
| - | 8M0187032 |
GEAR HOUSING ASSEMBLY Complete, Long GEAR HOUSING ASSEMBLY Complete, Long |
1 | |
| - | 8M0187033 |
GEAR HOUSING ASSEMBLY Complete, XLong GEAR HOUSING ASSEMBLY Complete, XLong |
1 | |
| - | 8M0187013 |
GEARCASE GASKET SET GEARCASE GASKET SET |
1 | |
| - | 13914Q03 |
КОМПЛЕКТ ОБОРУДОВАНИЯ Гребной винт HARDWARE KIT Prop |
1 | discontinued |
| 1 | 8M0187015 |
GEAR HOUSING ASSEMBLY Basic GEAR HOUSING ASSEMBLY Basic |
1 | |
| 10 | 8126453 |
ПРУЖИНА Snap SPRING Snap |
1 | |
| 11 | 161521 |
ТОЛКАТЕЛЬ Кулачок FOLLOWER Cam |
1 | |
| 12 | 176672 |
ПРУЖИНА SPRING |
1 | |
| 13 | 8M0186961 |
PROPELLER SHAFT PROPELLER SHAFT |
1 | |
| 14 | 8M0186792 |
GEAR Reverse - 26 Teeth GEAR Reverse - 26 Teeth |
1 | |
| 15 | 161401 |
ШАЙБА WASHER |
1 | |
| 16 | 8M0187016 |
CARRIER ASSEMBLY Bearing CARRIER ASSEMBLY Bearing |
1 | |
| 17 | 16132T01 |
ПОДШИПНИК Шарик BEARING Ball |
1 | |
| 18 | 161311 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 19 | 813048T05 |
ПОДШИПНИК Игла BEARING Needle |
1 | |
| 2 | 16128T01 |
БЛОК ПОДШИПНИКА BEARING ASSEMBLY |
1 | |
| 20 | 8M0079092 |
УПЛОТНЕНИЕ Масло SEAL Oil |
2 | |
| 21 | 879194254 |
BOLT BOLT |
2 | |
| 22 | 879194342 |
ШАЙБА WASHER |
2 | |
| 23 | 8M0185635 |
BLACK MAX PROPELLER 10 inch BLACK MAX PROPELLER 10 inch |
AR | |
| 23 | 8M0185636 |
BLACK MAX PROPELLER 11 inch BLACK MAX PROPELLER 11 inch |
AR | |
| 23 | 8M0185637 |
BLACK MAX PROPELLER 12 inch BLACK MAX PROPELLER 12 inch |
AR | |
| 23 | 8M0185638 |
BLACK MAX PROPELLER 13 inch BLACK MAX PROPELLER 13 inch |
AR | |
| 23 | 8M0185642 |
BLACK DIAMOND PROPELLER 10 inch BLACK DIAMOND PROPELLER 10 inch |
AR | |
| 23 | 8M0185643 |
BLACK DIAMOND PROPELLER 11 inch BLACK DIAMOND PROPELLER 11 inch |
AR | |
| 23 | 8M0185644 |
BLACK DIAMOND PROPELLER 12 inch BLACK DIAMOND PROPELLER 12 inch |
AR | |
| 23 | 8M0185645 |
BLACK DIAMOND PROPELLER 13 inch BLACK DIAMOND PROPELLER 13 inch |
AR | |
| 24 | 161452 |
УПОРНАЯ ВТУЛКА THRUST HUB |
1 | |
| 25 | 161402 |
ШАЙБА WASHER |
1 | |
| 26 | 161471 |
ГАЙКА ГРЕБНОГО ВИНТА PROP NUT |
1 | |
| 27 | 8150264 |
ШПЛИНТ COTTER PIN |
1 | |
| 3 | 8M0138531 |
ВТУЛКА BUSHING |
1 | discontinued |
| 4 | 8M0186790 |
GEAR Foward - 26 Teeth GEAR Foward - 26 Teeth |
1 | |
| 5 | 161631 |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА (0.1) SHIM (0.1) |
AR | |
| 5 | 8132761 |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА (0.15) SHIM (0.15) |
AR | |
| 6 | 898103T30 |
МУФТА СЦЕПЛЕНИЯ CLUTCH |
1 | |
| 7 | 853764003 |
ФИКСАТОР Spring RETAINER Spring |
1 | |
| 8 | 161501 |
ШТИФТ PIN |
1 | |
| 9 | 161322 |
ШАРИК Стальной BALL Steel |
1 |
