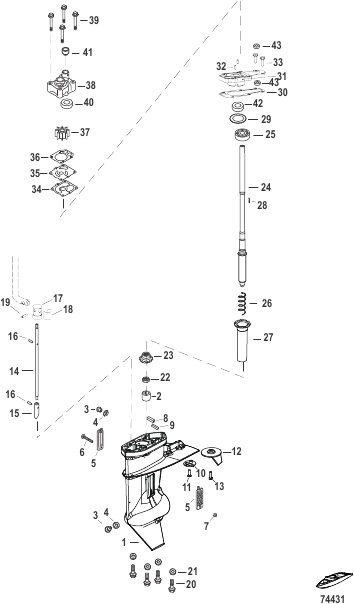

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0187031 |
GEAR HOUSING ASSEMBLY Complete, Short
|
1 |
|
| - |
8M0187032 |
GEAR HOUSING ASSEMBLY Complete, Long
|
1 |
|
| - |
8M0187033 |
GEAR HOUSING ASSEMBLY Complete, XLong
|
1 |
|
| - |
8M0187013 |
GEARCASE GASKET SET
|
1 |
|
| - |
8M0199643 |
WATER PUMP REPAIR KIT
|
1 |
|
| 1 |
8M0187015 |
GEAR HOUSING ASSEMBLY Basic
|
1 |
|
| 10 |
16133 |
STRAINER Water
|
1 |
|
| 11 |
898101959 |
SCREW
|
1 |
|
| 12 |
853762 |
TRIM TAB
|
1 |
|
| 13 |
167051 |
BOLT (M6 x 20)
|
1 |
|
| 14 |
8M0186974 |
SHIFT SHAFT Lower, Short
|
1 |
|
| 14 |
8M0186975 |
SHIFT SHAFT Lower, Long
|
1 |
|
| 14 |
8M0186976 |
SHIFT SHAFT Lower, XLong
|
1 |
|
| 15 |
8M0172382 |
CLUTCH CAM
|
1 |
|
| 16 |
16179 |
PIN
|
2 |
|
| 17 |
8M0199639 |
JOINT Shift Rod
|
1 |
|
| 18 |
8M0199641 |
RETAINER Shift Rod Joint
|
1 |
|
| 19 |
952189 |
PIN Dowel
|
1 |
|
| 2 |
8M0186942 |
BEARING Needle
|
1 |
|
| 20 |
879194307 |
BOLT
|
4 |
|
| 21 |
16192 |
WASHER
|
4 |
|
| 22 |
85372211 |
NUT
|
1 |
|
| 23 |
8M0186791 |
GEAR Pinion (12 teeth)
|
1 |
|
| 24 |
8M0186962 |
DRIVESHAFT Short
|
1 |
|
| 24 |
8M0186963 |
DRIVESHAFT Long
|
1 |
|
| 24 |
8M0186964 |
DRIVESHAFT XL
|
1 |
|
| 25 |
16128T02 |
BEARING ASSEMBLY
|
1 |
|
| 26 |
8M0186965 |
SPRING
|
1 |
|
| 27 |
8M0186966 |
GUIDE Spring
|
1 |
|
| 28 |
161551 |
KEY
|
1 |
|
| 29 |
813276001 |
SHIM (0.1)
|
AR |
|
| 29 |
813276015 |
SHIM (0.15)
|
AR |
|
| 29 |
813276003 |
SHIM (0.3)
|
AR |
|
| 29 |
813276005 |
SHIM (0.5)
|
AR |
|
| 3 |
953683 |
PLUG
|
2 |
superseded
|
| 30 |
8M0186968 |
GASKET Pump Case
|
1 |
|
| 31 |
8M0186967 |
HOUSING Water Pump Lower
|
1 |
|
| 32 |
952188 |
PIN Dowel
|
2 |
|
| 33 |
167051 |
BOLT (M6 x 20)
|
2 |
|
| 34 |
161602 |
GASKET
|
1 |
|
| 35 |
803753002 |
PLATE Water Pump Guide
|
1 |
|
| 36 |
16158010 |
GASKET
|
1 |
|
| 37 |
8M0186795 |
IMPELLER Water Pump
|
1 |
|
| 38 |
803750T05 |
HOUSING Water Pump
|
1 |
|
| 39 |
879194269 |
BOLT
|
4 |
|
| 4 |
8M0082880 |
SEAL KIT Drain Plug
|
2 |
|
| 40 |
803751002 |
Liner Pump Case
|
1 |
|
| 41 |
161681 |
SEAL Lower
|
1 |
|
| 42 |
161622 |
SEAL Oil
|
1 |
|
| 43 |
161772 |
O-RING
|
2 |
|
| 5 |
803730002 |
STRAINER Water
|
2 |
|
| 6 |
17635 |
SCREW
|
1 |
|
| 7 |
85372210 |
NUT
|
1 |
|
| 8 |
8M0186781 |
SEAL Water Seal
|
1 |
|
| 9 |
8M0186782 |
PLATE Water Seal
|
1 |
|
