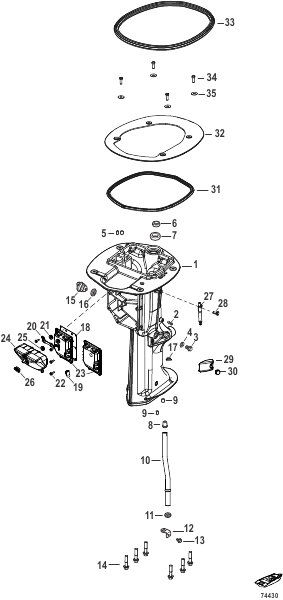

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0240711 |
EXHAUST COVER KIT
|
0 |
|
| 1 |
8M0187018 |
DRIVESHAFT HOUSING ASSEMBLY Short
|
1 |
superseded
|
| 1 |
8M0187019 |
DRIVESHAFT HOUSING ASSEMBLY Long
|
1 |
|
| 10 |
8M0186969 |
TUBE Water, Short Jet
|
1 |
|
| 10 |
8M0186970 |
TUBE Water, Long
|
1 |
|
| 10 |
8M0186971 |
TUBE Water, XLong
|
1 |
|
| 11 |
8M0186783 |
GROMMET
|
1 |
|
| 12 |
8M0186832 |
PLATE Lock
|
1 |
|
| 13 |
8248324 |
SCREW (M6 x 16)
|
1 |
|
| 14 |
8M0199222 |
BOLT
|
6 |
|
| 15 |
8M0135914 |
FLUSH CONNECTOR
|
1 |
|
| 16 |
8M0137342 |
SEAL Ring
|
1 |
|
| 17 |
8M0146189 |
NUT TILT TUBE LOCK Black
|
1 |
|
| 18 |
8M0186831 |
GASKET Exhaust, Port
|
1 |
|
| 19 |
8M0199213 |
IDLE EXHAUST PASSAGE
|
1 |
|
| 2 |
8M0137339 |
FITTING Nipple
|
1 |
|
| 20 |
8M0186972 |
LOCK PLATE
|
1 |
|
| 21 |
8M0199215 |
GROMMET
|
1 |
|
| 22 |
167051 |
BOLT (M6 x 20)
|
7 |
|
| 23 |
8M0186851 |
COVER Exhaust Design I [1R220175] & Below
|
1 |
|
| 23 |
8M0240708 |
COVER Exhaust Design II [1R220176] & Up
|
1 |
|
| 24 |
NSS |
NOT SOLD SEPARATE IDLE EXHAUST PORT CHAMBER Design I [1R220175] & Below
|
1 |
|
| 24 |
8M0199211 |
IDLE EXHAUST PORT CHAMBER Design II [1R220176] & Up
|
1 |
|
| 25 |
8M0240710 |
GROMMET Design II [1R220176] & Up
|
1 |
|
| 26 |
8M0186786 |
GROMMET
|
1 |
|
| 27 |
8M0186818 |
NIPPLE
|
1 |
|
| 28 |
8230427 |
BOLT ASSEMBLY (M6 x 12)
|
1 |
|
| 29 |
8M0189796 |
MOUNT COVER Lower
|
2 |
|
| 3 |
8M0111615 |
DRAIN PLUG BOLT
|
1 |
|
| 30 |
898101951 |
BOLT
|
2 |
|
| 31 |
8M0189794 |
SEAL Adapter Plate
|
1 |
|
| 32 |
8M0189795 |
CHAP PLATE
|
1 |
|
| 33 |
8M0189788 |
SEAL Cover
|
1 |
|
| 34 |
16705 |
BOLT
|
4 |
|
| 35 |
161404 |
WASHER
|
4 |
|
| 4 |
895146 |
WASHER
|
1 |
|
| 5 |
16119 |
PIN Dowel
|
2 |
|
| 6 |
8537072 |
SEAL Oil
|
1 |
|
| 7 |
8M0199219 |
GUIDE Driveshaft
|
1 |
|
| 8 |
8M0186784 |
SEAL Water Tube
|
1 |
|
| 9 |
898101330 |
PIN Dowel
|
2 |
|
