| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0187008 |

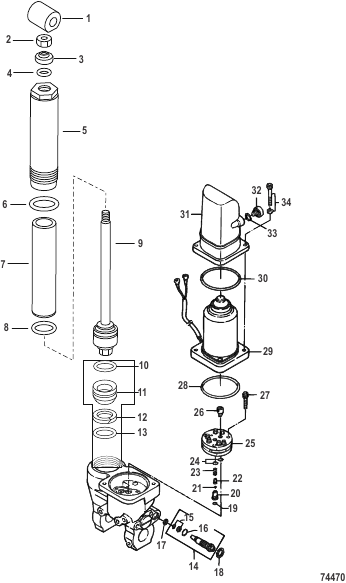

POWER TILT ASSEMBLY
|
1 |
|
| 1 |
898101246 |
JOINT
|
1 |
|
| 10 |
898101250 |
O-RING
|
1 |
|
| 11 |
898101251 |
PISTON
|
1 |
|
| 12 |
898101252 |
RING
|
1 |
|
| 13 |
898101253 |
O-RING
|
1 |
|
| 14 |
898101115 |
MANUAL VALVE ASSEMBLY
|
1 |
|
| 15 |
898101167 |
SEAL SET
|
1 |
|
| 16 |
812641003 |
O-RING
|
1 |
|
| 17 |
898101245 |
SEAL
|
1 |
|
| 18 |
804027004 |
C RING
|
1 |
superseded
|
| 19 |
803513009 |
O-RING
|
1 |
|
| 2 |
898101247 |
NUT
|
1 |
|
| 20 |
898101213 |
SEAT Valve
|
1 |
|
| 21 |
898101005 |
BALL
|
1 |
|
| 22 |
898101180 |
SEAT Spring
|
1 |
|
| 23 |
898101176 |
SPRING
|
1 |
|
| 24 |
161314 |
O-RING
|
2 |
|
| 25 |
898103T12 |
PUMP
|
1 |
|
| 26 |
851877001 |
COUPLING
|
1 |
|
| 27 |
8518663 |
BOLT
|
3 |
|
| 28 |
16131011 |
O-RING
|
1 |
|
| 29 |
8M0187009 |
MOTOR ASSEMBLY
|
1 |
|
| 3 |
898101248 |
SEAL
|
1 |
|
| 30 |
898101130 |
O-RING
|
1 |
|
| 31 |
898103T15 |
TANK Reservoir
|
1 |
|
| 32 |
898101024 |
CAP ASSEMBLY
|
1 |
|
| 33 |
898101129 |
O-RING
|
1 |
|
| 34 |
898101015 |
SCREW
|
2 |
|
| 4 |
898101249 |
O-RING
|
1 |
|
| 5 |
898103T36 |
CYLINDER
|
1 |
|
| 6 |
898101254 |
O-RING
|
1 |
|
| 7 |
898103T37 |
TUBE Inner
|
1 |
|
| 8 |
898101255 |
O-RING
|
1 |
|
| 9 |
898103T38 |
ROD ASSEMBLY Piston
|
1 |
|
