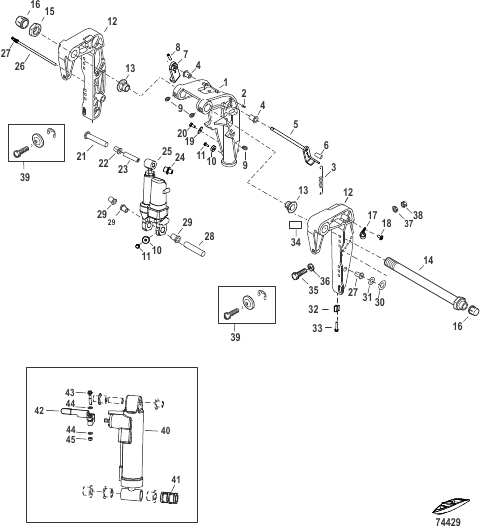

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0187027 |
SWIVEL BRACKET ASSEMBLY SWIVEL BRACKET ASSEMBLY |
1 | |
| 10 | 823913Q |
АНОД ANODE |
2 | |
| 11 | 8248324 |
ВИНТ (M6 x 16) SCREW (M6 x 16) |
2 | |
| 12 | 8M0163145 |
CLAMP BRACKET Starboard CLAMP BRACKET Starboard |
1 | |
| 12 | 8M0163147 |
CLAMP BRACKET Port CLAMP BRACKET Port |
1 | |
| 13 | 161764 |
ВТУЛКА BUSHING |
2 | |
| 14 | 8M0186947 |
SHAFT Swivel Bracket SHAFT Swivel Bracket |
1 | |
| 15 | 853722029 |
ГАЙКА Нейлон NUT Nylon |
1 | |
| 16 | 85372214 |
НАКИДНАЯ ГАЙКА CAP NUT |
2 | |
| 17 | 953951 |
ЗАЖИМ Power Tilt Only CLAMP Power Tilt Only |
1 | |
| 18 | 8555445 |
ВИНТ Power Tilt Only SCREW Power Tilt Only |
1 | |
| 19 | 898101937 |
ШАЙБА WASHER |
1 | |
| 2 | 8M0137368 |
ШТИФТ PIN |
1 | |
| 20 | 8230427 |
БОЛТ В СБОРЕ (M6 x 12) BOLT ASSEMBLY (M6 x 12) |
1 | |
| 21 | 8M0187005 |
CYLINDER PIN Upper CYLINDER PIN Upper |
1 | |
| 22 | 16176009 |
ВТУЛКА BUSHING |
1 | |
| 23 | 16176010 |
ВТУЛКА BUSHING |
1 | |
| 24 | 8M0187006 |
BUSHING BUSHING |
1 | |
| 25 | 8M0187008 |
POWER TILT ASSEMBLY POWER TILT ASSEMBLY |
1 | |
| 26 | 8M0186833 |
THRUST ROD THRUST ROD |
1 | |
| 27 | 8126455 |
ПРУЖИНА SPRING |
1 | |
| 28 | 8M0091499 |
CYLINDER PIN Lower CYLINDER PIN Lower |
1 | |
| 29 | 161765 |
ВТУЛКА BUSHING |
4 | |
| 3 | 95383010 |
ПРУЖИНА SPRING |
1 | |
| 30 | 804027003 |
КОЛЬЦО ПОЛУКРУГЛОГО ПРОФИЛЯ C RING |
2 | |
| 31 | 853822002 |
ШАЙБА WASHER |
2 | |
| 32 | 804043 |
АНОД Power Tilt Only ANODE Power Tilt Only |
2 | |
| 32 | 875208 |
АНОД Gas Assist Only ANODE Gas Assist Only |
2 | |
| 33 | 879194264 |
БОЛТ BOLT |
2 | |
| 34 | 8M0191657 |
DECAL Secure Engine DECAL Secure Engine |
1 | |
| 35 | 802619 |
БОЛТ BOLT |
4 | |
| 36 | 953928 |
ШАЙБА WASHER |
4 | |
| 37 | 879194341 |
WASHER WASHER |
4 | |
| 38 | 95374002 |
ГАЙКА NUT |
4 | |
| 39 | 8M0176080 |
CLAMP SCREW KIT Accessory CLAMP SCREW KIT Accessory |
2 | |
| 4 | 95286027 |
ВТУЛКА COLLAR |
2 | |
| 40 | 898103T32 |
АМОРТИЗАТОР Газ Gas Assist SHOCK ABSORBER Gas Assist |
1 | |
| 41 | 8M0186997 |
COLLAR Gas Assist COLLAR Gas Assist |
1 | |
| 42 | 8M0186840 |
LEVER Reverse Lock Gas Assist LEVER Reverse Lock Gas Assist |
1 | |
| 43 | 8M0186820 |
BOLT Gas Assist BOLT Gas Assist |
1 | |
| 44 | 16826 |
ШАЙБА Нержавеющая сталь Gas Assist WASHER Stainless Steel Gas Assist |
2 | |
| 45 | 400212 |
ГАЙКА (M6), нержавеющая сталь Gas Assist NUT (M6) Stainless Steel Gas Assist |
1 | |
| 5 | 8M0187077 |
TILT STOPPER Power Tilt TILT STOPPER Power Tilt |
1 | |
| 5 | 8M0186798 |
TILT STOPPER Gas Assist TILT STOPPER Gas Assist |
1 | |
| 6 | 892286 |
ПРОБКА Grip CAP Grip |
1 | |
| 7 | 8M0187076 |
TILT STOPPER Power Tilt TILT STOPPER Power Tilt |
1 | |
| 7 | 8M0186797 |
TILT STOPPER Gas Assist TILT STOPPER Gas Assist |
1 | |
| 8 | 95218017 |
ШТИФТ Пружина PIN Spring |
1 | |
| 9 | 824969 |
ФИТИНГ Смазка FITTING Grease |
3 |
