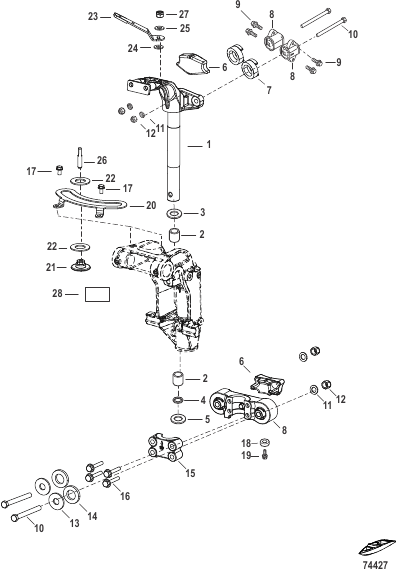

Steering Arm
Parts (32)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0191058 |
CO PILOT KIT CO PILOT KIT |
1 | |
| - | 8M0191052 |
CONVERSION KIT Remote Control Model to Power Tilt/Tiller Handle Model CONVERSION KIT Remote Control Model to Power Tilt/Tiller Handle Model |
1 | |
| 1 | 8M0187025 |
STEERING SHAFT ASSEMBLY STEERING SHAFT ASSEMBLY |
1 | |
| 10 | 8M0186944 |
BOLT BOLT |
4 | |
| 11 | 8M0074789 |
ШАЙБА WASHER |
4 | |
| 12 | 8M0074788 |
ГАЙКА NUT |
4 | |
| 13 | 953928 |
ШАЙБА WASHER |
2 | |
| 14 | 851867 |
ШАЙБА WASHER |
2 | |
| 15 | 8M0187024 |
BRACKET Mount BRACKET Mount |
1 | |
| 16 | 8M0187080 |
BOLT BOLT |
4 | |
| 17 | 8230427 |
БОЛТ В СБОРЕ (M6 x 12) BOLT ASSEMBLY (M6 x 12) |
2 | |
| 18 | 823913Q |
АНОД ANODE |
1 | |
| 19 | 8248324 |
ВИНТ (M6 x 16) SCREW (M6 x 16) |
1 | |
| 2 | 16336007 |
ВТУЛКА BUSHING |
2 | |
| 20 | 8M0186950 |
PLATE PLATE |
1 | |
| 21 | 8M0194125 |
BRACKET Friction Lever BRACKET Friction Lever |
1 | |
| 22 | 8M0186951 |
DISC DISC |
2 | |
| 23 | 8M0186834 |
LEVER Friction LEVER Friction |
1 | |
| 24 | 895146001 |
ШАЙБА WASHER |
1 | |
| 25 | 16192 |
ШАЙБА WASHER |
1 | |
| 26 | 8M0186949 |
BOLT BOLT |
1 | |
| 27 | 95374 |
ГАЙКА Нейлон NUT Nylon |
1 | |
| 28 | 823701004 |
НАКЛЕЙКА Усилитель руля DECAL Co-Pilot |
1 | |
| 3 | 803774004 |
УПОРНАЯ ПЛАСТИНА Upper THRUST PLATE Upper |
1 | |
| 4 | 16109002 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 5 | 8M0186948 |
THRUST PLATE Lower THRUST PLATE Lower |
1 | |
| 6 | 8M0194128 |
DAMPER Upper, Snubber DAMPER Upper, Snubber |
1 | |
| 6 | 8M0186945 |
DAMPER Lower DAMPER Lower |
1 | |
| 7 | 8M0199597 |
DAMPER Upper DAMPER Upper |
2 | |
| 8 | 8M0186943 |
RUBBER MOUNT Upper RUBBER MOUNT Upper |
2 | |
| 8 | 8M0187023 |
RUBBER MOUNT Lower RUBBER MOUNT Lower |
2 | |
| 9 | 879194273 |
БОЛТ BOLT |
4 |
