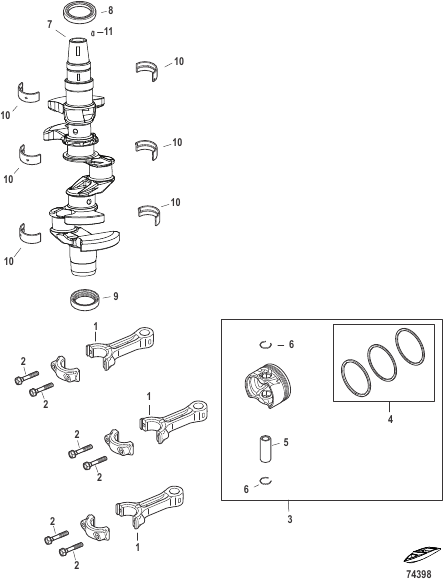

Crankshaft, Pistons and Connecting Rods
Parts (15)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0187012 |
POWERHEAD GASKET SET POWERHEAD GASKET SET |
1 | |
| - | 8M0191412 |
LONG BLOCK ASSEMBLY 25 HP LONG BLOCK ASSEMBLY 25 HP |
1 | |
| - | 8M0191411 |
LONG BLOCK ASSEMBLY 30 HP LONG BLOCK ASSEMBLY 30 HP |
1 | |
| 1 | 8M0134430 |
СОЕДИНИТЕЛЬНЫЙ СТЕРЖЕНЬ В СБОРЕ CONNECTING ROD ASSEMBLY |
3 | |
| 10 | 8M0186920 |
BEARING Blue BEARING Blue |
AR | |
| 10 | 8M0186919 |
BEARING Red BEARING Red |
AR | |
| 11 | 825666001 |
КЛЮЧ KEY |
1 | |
| 2 | 8M0135582 |
БОЛТ Соединительный шток BOLT Connecting Rod |
6 | |
| 3 | 8M0190453 |
PISTON ASSEMBLY PISTON ASSEMBLY |
3 | |
| 4 | 8M0187083 |
PISTON RING SET PISTON RING SET |
3 | |
| 5 | 8M0135581 |
ШТИФТ Поршень PIN Piston |
3 | |
| 6 | 160573 |
Е-ОБРАЗНОЕ КОЛЬЦО E RING |
6 | |
| 7 | 8M0186867 |
CRANKSHAFT CRANKSHAFT |
1 | |
| 8 | 855681005 |
УПЛОТНЕНИЕ Масло Upper SEAL Oil Upper |
1 | |
| 9 | 898103114 |
УПЛОТНЕНИЕ Масло Lower SEAL Oil Lower |
1 |
