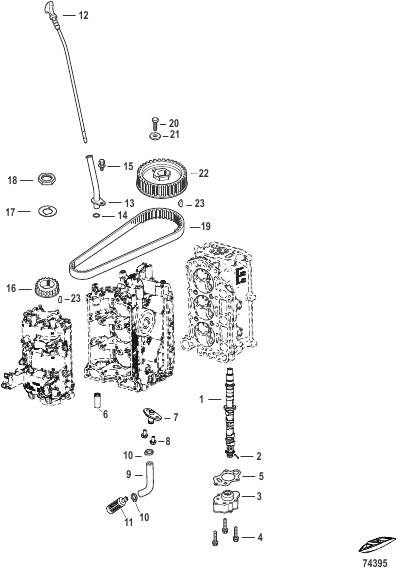

Camshaft and Oil Pump
Parts (29)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0187012 |
POWERHEAD GASKET SET POWERHEAD GASKET SET |
1 | |
| - | 8M0186821 |
CYLINDER HEAD Complete, 25 HP CYLINDER HEAD Complete, 25 HP |
1 | |
| - | 8M0186854 |
CYLINDER HEAD Complete, 30 HP CYLINDER HEAD Complete, 30 HP |
1 | |
| - | 8M0191412 |
LONG BLOCK ASSEMBLY 25 HP LONG BLOCK ASSEMBLY 25 HP |
1 | |
| - | 8M0191411 |
LONG BLOCK ASSEMBLY 30 HP LONG BLOCK ASSEMBLY 30 HP |
1 | |
| 1 | 8M0186924 |
CAMSHAFT ASSEMBLY 25 HP CAMSHAFT ASSEMBLY 25 HP |
1 | |
| 1 | 8M0187052 |
CAMSHAFT ASSEMBLY 30 HP CAMSHAFT ASSEMBLY 30 HP |
1 | |
| 10 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
2 | |
| 11 | 895152003 |
СЕТЧАТЫЙ ФИЛЬТР Масло STRAINER Oil |
1 | |
| 12 | 8M0186921 |
GAUGE Oil Level GAUGE Oil Level |
1 | |
| 13 | 8M0186814 |
TUBE Dipstick TUBE Dipstick |
1 | |
| 14 | 804840007 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 15 | 8230427 |
БОЛТ В СБОРЕ (M6 x 12) BOLT ASSEMBLY (M6 x 12) |
1 | |
| 16 | 8M0186929 |
DRIVE PULLEY DRIVE PULLEY |
1 | |
| 17 | 8M0186931 |
GUIDE Belt GUIDE Belt |
1 | |
| 18 | 855679004 |
ГАЙКА NUT |
1 | |
| 19 | 8M0186928 |
TIMING BELT TIMING BELT |
1 | |
| 2 | 8M0193982 |
PIN Camshaft PIN Camshaft |
1 | discontinued |
| 20 | 803858001 |
БОЛТ BOLT |
1 | |
| 21 | 895118 |
ШАЙБА WASHER |
1 | |
| 22 | 8M0186930 |
GEAR Driven GEAR Driven |
1 | |
| 23 | 95229 |
КЛЮЧ KEY |
2 | |
| 3 | 8M0186916 |
OIL PUMP ASSEMBLY OIL PUMP ASSEMBLY |
1 | |
| 4 | 8M0147119 |
BOLT BOLT |
3 | |
| 5 | 8M0186918 |
GASKET Oil Pump GASKET Oil Pump |
1 | |
| 6 | 8M0186822 |
FITTING Fitting FITTING Fitting |
1 | |
| 7 | 8M0186881 |
FITTING Nipple FITTING Nipple |
1 | |
| 8 | 8230427 |
БОЛТ В СБОРЕ (M6 x 12) BOLT ASSEMBLY (M6 x 12) |
2 | |
| 9 | 8M0206072 |
HOSE HOSE |
1 |
