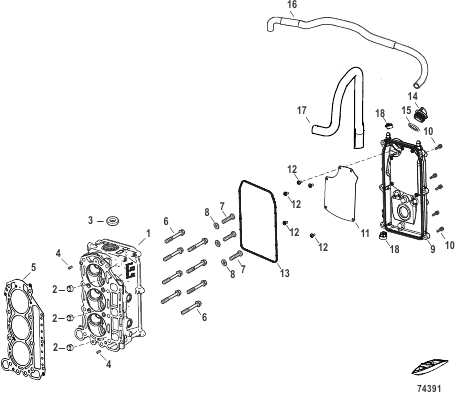

Cylinder Head
Parts (23)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0186821 |
CYLINDER HEAD Complete, 25 HP CYLINDER HEAD Complete, 25 HP |
1 | |
| - | 8M0186854 |
CYLINDER HEAD Complete, 30 HP CYLINDER HEAD Complete, 30 HP |
1 | |
| - | 8M0187012 |
POWERHEAD GASKET SET POWERHEAD GASKET SET |
1 | |
| - | 8M0191412 |
LONG BLOCK ASSEMBLY 25 HP LONG BLOCK ASSEMBLY 25 HP |
1 | |
| - | 8M0191411 |
LONG BLOCK ASSEMBLY 30 HP LONG BLOCK ASSEMBLY 30 HP |
1 | |
| 1 | 8M0186869 |
Cylinder Head Bare Cylinder Head Bare |
1 | |
| 10 | 167051 |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
6 | |
| 11 | 8M0186922 |
COVER Breather Chamber COVER Breather Chamber |
1 | |
| 12 | 163341 |
ВИНТ SCREW |
5 | |
| 13 | 8M0186872 |
GASKET Cylinder Head Cover GASKET Cylinder Head Cover |
1 | superseded |
| 14 | 8M0135589 |
ПРОБКА Заливка масла CAP Oil Fill |
1 | |
| 15 | 803513007 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 16 | 8M0186923 |
HOSE Breather Throttle Body to Cylinder Head Cover HOSE Breather Throttle Body to Cylinder Head Cover |
1 | |
| 17 | 8M0187051 |
HOSE Breather Cylinder Head Cover To Clylinder Block HOSE Breather Cylinder Head Cover To Clylinder Block |
1 | |
| 18 | 8M0155470 |
ФИКСАТОР RETAINER |
2 | |
| 2 | 8M0136163 |
ПРОБКА Конический PLUG Taper |
3 | |
| 3 | 825455001 |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | |
| 4 | 16119 |
ШТИФТ Штифт PIN Dowel |
2 | |
| 5 | 8M0186870 |
GASKET Cylinder Head GASKET Cylinder Head |
1 | |
| 6 | 855677002 |
БОЛТ BOLT |
8 | |
| 7 | 803664 |
БОЛТ BOLT |
3 | |
| 8 | 16826 |
ШАЙБА Нержавеющая сталь WASHER Stainless Steel |
3 | |
| 9 | 8M0186871 |
COVER Cylinder Head COVER Cylinder Head |
1 |
