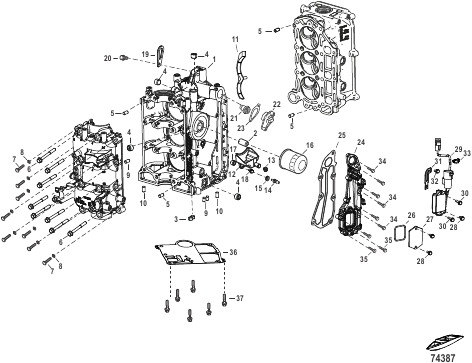

Cylinder Block
Parts (44)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0187012 |
POWERHEAD GASKET SET POWERHEAD GASKET SET |
1 | |
| - | 8M0191056 |
BATTERY CHARGING KIT BATTERY CHARGING KIT |
1 | |
| - | 8M0191055 |
ELECTRIC START KIT ELECTRIC START KIT |
1 | |
| - | 8M0186821 |
CYLINDER HEAD Complete, 25 HP CYLINDER HEAD Complete, 25 HP |
1 | |
| - | 8M0186854 |
CYLINDER HEAD Complete, 30 HP CYLINDER HEAD Complete, 30 HP |
1 | |
| - | 8M0191412 |
LONG BLOCK ASSEMBLY 25 HP LONG BLOCK ASSEMBLY 25 HP |
1 | |
| - | 8M0191411 |
LONG BLOCK ASSEMBLY 30 HP LONG BLOCK ASSEMBLY 30 HP |
1 | |
| 1 | 8M0186773 |
CYLINDER BLOCK Bare CYLINDER BLOCK Bare |
1 | |
| 10 | 16119002 |
ШТИФТ Штифт Driveshaft Housing PIN Dowel Driveshaft Housing |
2 | |
| 11 | 8M0186877 |
INSERT Water Jacket, STBD INSERT Water Jacket, STBD |
1 | |
| 12 | 8M0186917 |
TRAY Oil Drip TRAY Oil Drip |
1 | |
| 13 | 8M0143229 |
ПРОБКА Лоток для сбора PLUG Drip Tray |
1 | |
| 14 | 8M0186941 |
HOOK HOOK |
1 | |
| 15 | 881305002 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | |
| 16 | 8M0162831 |
FILTER ASSY OIL 4 STROKE FILTER ASSY OIL 4 STROKE |
1 | |
| 17 | 898101941 |
ВТУЛКА COLLAR |
1 | |
| 18 | 167051 |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
1 | |
| 19 | 8M0186879 |
LIFTING EYE LIFTING EYE |
1 | |
| 2 | 855677004 |
БОЛТ BOLT Oil Filter |
1 | |
| 20 | 8M0098607 |
БОЛТ BOLT |
1 | |
| 21 | 8M0186873 |
THERMOSTAT THERMOSTAT |
1 | |
| 22 | 8537052 |
ПРОБКА Термостат CAP Thermostat |
1 | |
| 23 | 8M0214960 |
GASKET Thermostat Cap GASKET Thermostat Cap |
1 | |
| 24 | 8M0186887 |
COVER Exhaust COVER Exhaust |
1 | |
| 25 | 8M0186888 |
GASKET Exhaust Cover GASKET Exhaust Cover |
1 | |
| 26 | 8M0186996 |
GASKET Rectifier GASKET Rectifier |
1 | |
| 27 | 8M0186992 |
COVER Manual Start Models COVER Manual Start Models |
1 | |
| 28 | 8248324 |
ВИНТ (M6 x 16) Manual Start Models SCREW (M6 x 16) Manual Start Models |
3 | |
| 29 | 8M0186994 |
RECTIFIER COMPLETE Electric Start Models RECTIFIER COMPLETE Electric Start Models |
1 | |
| 3 | 8M0136163 |
ПРОБКА Конический PLUG Taper |
2 | |
| 30 | 823042 |
БОЛТ Electric Start Models BOLT Electric Start Models |
2 | |
| 31 | 8M0186915 |
PLATE Electric Start Models PLATE Electric Start Models |
1 | |
| 32 | 8230427 |
БОЛТ В СБОРЕ (M6 x 12) Electric Start Models BOLT ASSEMBLY (M6 x 12) Electric Start Models |
1 | |
| 33 | 8M0186816 |
BAND Electric Start Models BAND Electric Start Models |
1 | |
| 34 | 823042 |
БОЛТ 2 included in Long Block Assembly BOLT 2 included in Long Block Assembly |
7 | |
| 35 | 8M0147119 |
BOLT BOLT |
2 | |
| 36 | 8M0186878 |
GASKET Powerhead GASKET Powerhead |
1 | |
| 37 | 898103228 |
БОЛТ BOLT |
6 | |
| 4 | 8M0186780 |
PLUG Taper PLUG Taper |
4 | |
| 5 | 16119 |
ШТИФТ Штифт Crankcase, Cylinder Head PIN Dowel Crankcase, Cylinder Head |
4 | |
| 6 | 8M0186875 |
BOLT BOLT |
8 | |
| 7 | 803664 |
БОЛТ BOLT |
8 | |
| 8 | 16826 |
ШАЙБА Нержавеющая сталь WASHER Stainless Steel |
8 | |
| 9 | 8M0136163 |
ПРОБКА Конический PLUG Taper |
3 |
