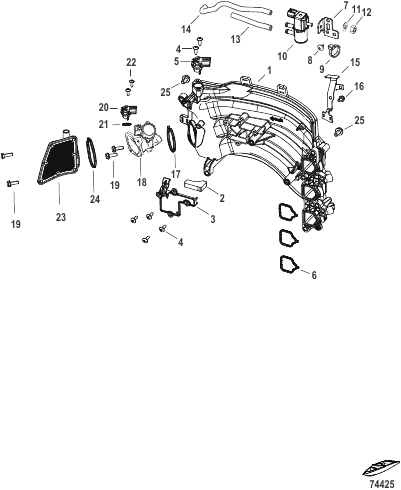

Intake Manifold
Parts (26)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0187012 |
POWERHEAD GASKET SET POWERHEAD GASKET SET |
1 | |
| 1 | 8M0186880 |
INTAKE MANIFOLD INTAKE MANIFOLD |
1 | superseded |
| 10 | 8M0186937 |
SOLENOID IAC SOLENOID IAC |
1 | |
| 11 | 16826 |
ШАЙБА Нержавеющая сталь WASHER Stainless Steel |
1 | |
| 12 | 400212 |
ГАЙКА (M6), нержавеющая сталь NUT (M6) Stainless Steel |
1 | |
| 13 | 8M0186938 |
HOSE Breather HOSE Breather |
1 | |
| 14 | 8M0187053 |
HOSE Breather HOSE Breather |
1 | |
| 15 | 8M0186828 |
BRACKET 14 pin BRACKET 14 pin |
1 | |
| 16 | 8230427 |
БОЛТ В СБОРЕ (M6 x 12) BOLT ASSEMBLY (M6 x 12) |
1 | |
| 17 | 8M0186933 |
GASKET Throttle Body to Intake Manifold GASKET Throttle Body to Intake Manifold |
1 | |
| 18 | 8M0186932 |
THROTTLE BODY ASSEMBLY THROTTLE BODY ASSEMBLY |
1 | |
| 19 | 167051 |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
4 | |
| 2 | 898101 |
ФИЛЬТР Воздух FILTER Air |
1 | |
| 20 | 8M0191652 |
SENSOR Throttle Position SENSOR Throttle Position |
1 | |
| 21 | 8M0199276 |
ORING Throttle Position Sensor ORING Throttle Position Sensor |
1 | |
| 22 | 8M0153617 |
ВИНТ SCREW |
2 | |
| 23 | 8M0186889 |
INTAKE SILENCER ASSEMBLY INTAKE SILENCER ASSEMBLY |
1 | |
| 24 | 8M0186892 |
GASKET Intake Silencer Assembly to Throttle Body GASKET Intake Silencer Assembly to Throttle Body |
1 | |
| 25 | 823042 |
БОЛТ BOLT |
6 | |
| 3 | 8M0186891 |
COVER Intake Silencer COVER Intake Silencer |
1 | |
| 4 | 8M0186825 |
SCREW Tapping SCREW Tapping |
6 | |
| 5 | 8M0132303 |
ДАТЧИК TMAP SENSOR TMAP |
1 | |
| 6 | 8M0186882 |
GASKET Intake Manifold GASKET Intake Manifold |
3 | |
| 7 | 8M0193675 |
PLATE IAC PLATE IAC |
1 | |
| 8 | 8M0186893 |
SCREW Tapping SCREW Tapping |
1 | |
| 9 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
1 |
