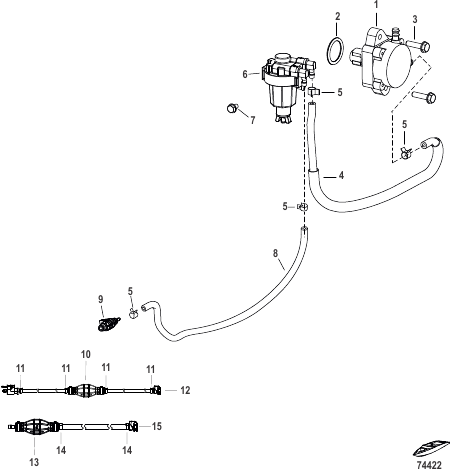

Fuel Pump and Lines Mechanical
Parts (18)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 803529T04 |
НАСОС В СБОРЕ Топливо PUMP ASSEMBLY Fuel |
1 | |
| 10 | 8M0199702 |
FUEL LINE EPA FUEL LINE EPA |
1 | |
| 10 | 8M0215181 |
FUEL LINE NON EPA FUEL LINE NON EPA |
1 | |
| 11 | 8M0204696 |
CLAMP CLAMP |
4 | |
| 12 | 8M0215251 |
FUEL CONNECTOR FUEL CONNECTOR |
1 | |
| 13 | 8M0190409 |
FUEL LINE ProKicker EPA FUEL LINE ProKicker EPA |
1 | |
| 14 | 8M0204696 |
CLAMP CLAMP |
2 | |
| 15 | 8M0215251 |
FUEL CONNECTOR FUEL CONNECTOR |
1 | |
| 2 | 16109003 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 3 | 823042 |
БОЛТ BOLT |
2 | |
| 4 | 8M0186884 |
HOSE Fuel EPA HOSE Fuel EPA |
1 | |
| 5 | 8M0129429 |
ХОМУТ ШЛАНГА HOSE CLAMP |
4 | |
| 6 | 8M0134466 |
ФИЛЬТР Топливо FUEL FILTER ASSEMBLY |
1 | |
| 6 | 8537331 |
ФИЛЬТР FILTER Fuel |
1 | |
| 6 | 8518151 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 7 | 8230427 |
БОЛТ В СБОРЕ (M6 x 12) BOLT ASSEMBLY (M6 x 12) |
1 | |
| 8 | 8M0186823 |
HOSE Fuel EPA HOSE Fuel EPA |
1 | |
| 9 | 8M0187743 |
FUEL CONNECTOR Body FUEL CONNECTOR Body |
1 |
