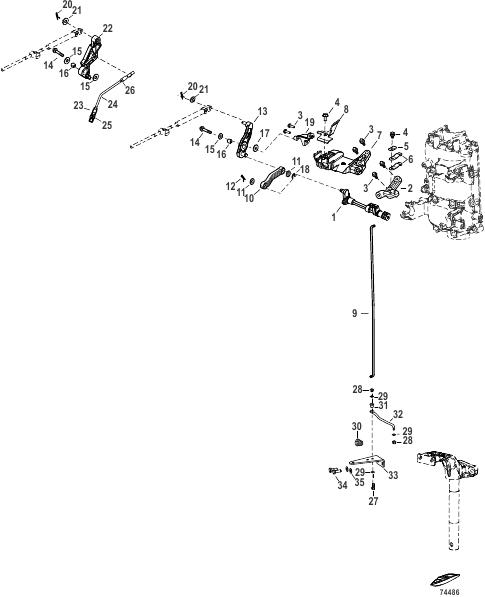

Throttle and Shift Linkage Remote Control
Parts (38)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0191810 |
DRAG LINK ASSEMBLY DRAG LINK ASSEMBLY |
1 | |
| - | 8M0191054 |
CONVERSION KIT Power Tilt Tiller Handle Model to Remote Control Model CONVERSION KIT Power Tilt Tiller Handle Model to Remote Control Model |
1 | |
| - | 8M0191053 |
CONVERSION KIT Manual Start Tiller Handle Model to Remote Control Model CONVERSION KIT Manual Start Tiller Handle Model to Remote Control Model |
1 | |
| 1 | 8M0186838 |
SHAFT Shift Lever SHAFT Shift Lever |
1 | |
| 10 | 8M0186839 |
ROD Shift Lever ROD Shift Lever |
1 | |
| 11 | 953925 |
ШАЙБА WASHER |
2 | |
| 12 | 8150262 |
ШПЛИНТ COTTER PIN |
1 | |
| 13 | 8M0186859 |
ARM Shift ARM Shift |
1 | |
| 14 | 16705 |
БОЛТ BOLT |
2 | |
| 15 | 953921 |
ШАЙБА Нержавеющая сталь WASHER Stainless Steel |
3 | |
| 16 | 8M0137300 |
ВТУЛКА COLLAR |
2 | |
| 17 | 161404 |
ШАЙБА WASHER |
1 | |
| 18 | 160572 |
Е-ОБРАЗНОЕ КОЛЬЦО E RING |
1 | |
| 19 | 8M0186977 |
BRACKET Shift Arm BRACKET Shift Arm |
1 | |
| 2 | 8M0135812 |
ДЕРЖАТЕЛЬ HOLDER |
1 | |
| 20 | 8M0021224 |
ЗАЖИМ Нос – тяга CLIP Bow-Tie |
2 | |
| 21 | 8M0186817 |
WASHER WASHER |
2 | |
| 22 | 8M0186858 |
ARM Throttle ARM Throttle |
1 | |
| 23 | 8M0186957 |
LINK ROD ASSEMBLY LINK ROD ASSEMBLY |
1 | |
| 24 | 8M0186857 |
ROD Throttle ROD Throttle |
1 | |
| 25 | 8M0191812 |
CONNECTOR Ball Joint CONNECTOR Ball Joint |
1 | |
| 26 | 16081 |
ГАЙКА Нержавеющая сталь NUT Stainless Steel |
1 | |
| 27 | 8M0193633 |
BOLT BOLT |
1 | |
| 28 | 161473 |
ГАЙКА Нейлон NUT Nylon |
2 | |
| 29 | 9539210 |
ШАЙБА WASHER |
3 | |
| 3 | 167051 |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
6 | |
| 30 | 853825 |
ПРОБКА CAP |
1 | |
| 31 | 8M0199265 |
SPACER SPACER |
1 | |
| 32 | 8M0199267 |
ROD Drag Link ROD Drag Link |
1 | |
| 33 | 8M0187011 |
PLATE Steering PLATE Steering |
1 | |
| 34 | 8M0135857 |
БОЛТ BOLT |
2 | |
| 35 | 879194340 |
ШАЙБА WASHER |
2 | |
| 4 | 8230427 |
БОЛТ В СБОРЕ (M6 x 12) BOLT ASSEMBLY (M6 x 12) |
2 | |
| 5 | 8M0135810 |
СТОПОР Рычаг переключения передач SHIFT DETENT Supporter |
1 | |
| 6 | 8M0135809 |
СТОПОР Рычаг переключения передач SHIFT DETENT Spring |
2 | |
| 7 | 8M0186862 |
BRACKET Cable BRACKET Cable |
1 | |
| 8 | 8M0186861 |
CLIP Cable CLIP Cable |
1 | |
| 9 | 8M0186980 |
ROD Shift ROD Shift |
1 |
