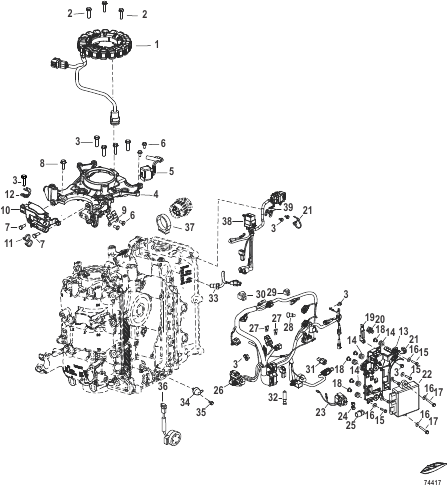

Electrical Alternator, ECU, Wiring Harness
Parts (49)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0191056 |
BATTERY CHARGING KIT BATTERY CHARGING KIT |
1 | |
| - | 8M0191055 |
ELECTRIC START KIT ELECTRIC START KIT |
1 | |
| - | 8M0191412 |
LONG BLOCK ASSEMBLY 25 HP LONG BLOCK ASSEMBLY 25 HP |
1 | |
| - | 8M0191411 |
LONG BLOCK ASSEMBLY 30 HP LONG BLOCK ASSEMBLY 30 HP |
1 | |
| 1 | 8M0186902 |
ALTERNATOR Electric Start ALTERNATOR Electric Start |
1 | |
| 1 | 8M0187046 |
ALTERNATOR Manual Start ALTERNATOR Manual Start |
1 | |
| 10 | 8M0192415 |
HOLDER Cable Terminal HOLDER Cable Terminal |
1 | |
| 11 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
2 | |
| 12 | 8M0186988 |
BRACKET Starter Lock Cable BRACKET Starter Lock Cable |
1 | |
| 13 | 8M0187049 |
BRACKET Electrical BRACKET Electrical |
1 | |
| 14 | 8M0135593 |
КРЕПЛЕНИЕ Резина MOUNT Rubber |
5 | |
| 15 | 8M0204707 |
SCREW M6 x 25 HX HD CAP SS SCREW M6 x 25 HX HD CAP SS |
5 | |
| 16 | 953921 |
ШАЙБА Нержавеющая сталь WASHER Stainless Steel |
7 | |
| 17 | 16705 |
БОЛТ BOLT |
2 | |
| 18 | 8M0137298 |
ВТУЛКА COLLAR |
5 | |
| 19 | 8M0186907 |
PLATE PLATE |
1 | |
| 2 | 823042 |
БОЛТ BOLT |
3 | |
| 20 | 8M0186815 |
MOUNT MOUNT |
1 | |
| 21 | 8M0186816 |
BAND Battery Chargning Kit contains 1 BAND Battery Chargning Kit contains 1 |
2 | |
| 22 | 8M0186827 |
ECU Engine Control Unit 25 HP ECU Engine Control Unit 25 HP |
1 | superseded |
| 22 | 8M0186855 |
ECU Engine Control Unit 30 HP ECU Engine Control Unit 30 HP |
1 | superseded |
| 22 | 8M0187071 |
ECU Engine Control Unit 25 HP SeaPro ECU Engine Control Unit 25 HP SeaPro |
1 | |
| 22 | 8M0230869 |
ECU Engine Control Unit 25 HP Jet ECU Engine Control Unit 25 HP Jet |
1 | |
| 23 | 8M0186993 |
STARTER SOLENOID STARTER SOLENOID |
1 | |
| 24 | 823042059 |
БОЛТ BOLT |
2 | |
| 25 | 853741001 |
ПРОБКА Клемма CAP Terminal |
1 | |
| 26 | 8M0186829 |
HARNESS ECU CORD HARNESS ECU CORD |
1 | |
| 27 | 853814003 |
ПЛАВКИЙ ПРЕДОХРАНИТЕЛЬ 15 ампер FUSE 15 Ampere |
1 | |
| 27 | 853814002 |
ПЛАВКИЙ ПРЕДОХРАНИТЕЛЬ 20 ампер FUSE 20 Ampere |
1 | |
| 28 | 853994 |
ПРОБКА PLUG |
6 | |
| 29 | 8M0106928 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | |
| 3 | 8230427 |
БОЛТ В СБОРЕ (M6 x 12) Battery Charging Kit contains 3 screws BOLT ASSEMBLY (M6 x 12) Battery Charging Kit contains 3 screws |
11 | |
| 30 | 8M0128523 |
ПРОБКА CAP |
1 | |
| 31 | 8M0137325 |
КОЛПАЧОК КЛЕММЫ TERMINAL COVER |
1 | |
| 32 | 8M0137324 |
КОЛПАЧОК КЛЕММЫ Manual Start TERMINAL COVER Manual Start |
1 | |
| 33 | 8M0186989 |
SENSOR Engine Temperature SENSOR Engine Temperature |
1 | |
| 34 | 8M0163139 |
SWITCH ASSEMBLY Oil Pressure SWITCH ASSEMBLY Oil Pressure |
1 | |
| 35 | 898101957 |
ВИНТ SCREW |
1 | |
| 36 | 802808A1 |
ЗУММЕР В СБОРЕ Перегрев BUZZER ASSEMBLY Overheat |
1 | |
| 37 | 8M0193508 |
MOUNT Rubber MOUNT Rubber |
1 | |
| 38 | 8M0186908 |
RELAY ASSEMBLY RELAY ASSEMBLY |
1 | |
| 39 | 8M0199263 |
PLATE PLATE |
1 | |
| 4 | 8M0186901 |
BRACKET Coil BRACKET Coil |
1 | |
| 5 | 8M0186904 |
SENSOR Crankshaft Position Starboard SENSOR Crankshaft Position Starboard |
1 | |
| 5 | 8M0187047 |
SENSOR Crankshaft Position Port SENSOR Crankshaft Position Port |
1 | |
| 6 | 823042067 |
ВИНТ SCREW |
6 | |
| 7 | 8248324 |
ВИНТ (M6 x 16) SCREW (M6 x 16) |
2 | |
| 8 | 823042073 |
ВИНТ Electric Start SCREW Electric Start |
2 | |
| 9 | 8M0186995 |
BRACKET Fuse Holder BRACKET Fuse Holder |
1 |
