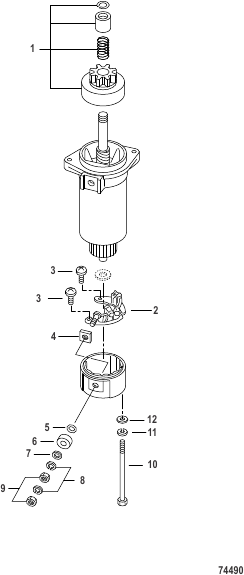

Starter Motor Components
Parts (15)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0188334 |
STARTER MOTOR ASSEMBLY STARTER MOTOR ASSEMBLY |
1 | |
| - | 8M0191055 |
ELECTRIC START KIT ELECTRIC START KIT |
1 | |
| 1 | 8M0147041 |
PINION [1R020941] & Below PINION [1R020941] & Below |
1 | superseded |
| 1 | 8M0188338 |
PINION [1R020942] & Up PINION [1R020942] & Up |
1 | |
| 10 | 8M0137330 |
БОЛТ BOLT |
2 | |
| 11 | 898101181 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
2 | |
| 12 | 898101215 |
ШАЙБА WASHER |
2 | |
| 2 | 8M0135544 |
ДЕРЖАТЕЛЬ Щетка HOLDER Brush |
1 | |
| 3 | 16821 |
ВИНТ SCREW |
2 | |
| 4 | 8M0135546 |
ВТУЛКА BUSHING |
1 | |
| 5 | 8M0137333 |
O-RING O-RING |
1 | |
| 6 | 8M0135545 |
ВТУЛКА BUSHING |
1 | |
| 7 | 16826 |
ШАЙБА Нержавеющая сталь WASHER Stainless Steel |
1 | |
| 8 | 400256 |
СТОПОРНАЯ ШАЙБА (M6) LOCKWASHER (M6) |
2 | |
| 9 | 853722026 |
ГАЙКА NUT |
2 |
