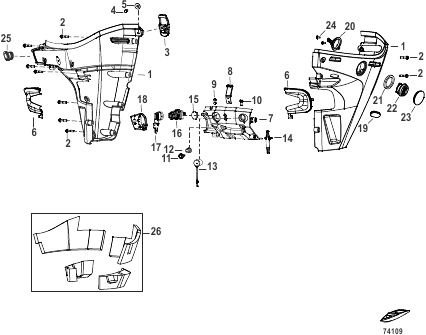

Lower Cowl
Parts (35)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0191055 |
ELECTRIC START KIT ELECTRIC START KIT |
1 | |
| - | 8M0191052 |
CONVERSION KIT Remote Control Model to Power Tilt/Tiller Handle Model CONVERSION KIT Remote Control Model to Power Tilt/Tiller Handle Model |
1 | |
| - | 8M0191051 |
CONVERSION KIT Remote Control Model to Non Power Tilt/Tiller Handle Model CONVERSION KIT Remote Control Model to Non Power Tilt/Tiller Handle Model |
1 | |
| - | 8M0191054 |
CONVERSION KIT Power Tilt Tiller Handle Model to Remote Control Model CONVERSION KIT Power Tilt Tiller Handle Model to Remote Control Model |
1 | |
| - | 8M0191053 |
CONVERSION KIT Manual Start Tiller Handle Model to Remote Control Model CONVERSION KIT Manual Start Tiller Handle Model to Remote Control Model |
1 | |
| 1 | 8M0189785 |
LOWER COWL ASSEMBLY Starboard LOWER COWL ASSEMBLY Starboard |
1 | |
| 1 | 8M0189786 |
LOWER COWL ASSEMBLY Starboard, Jet Jet Models Only LOWER COWL ASSEMBLY Starboard, Jet Jet Models Only |
1 | |
| 1 | 8M0189787 |
LOWER COWL ASSEMBLY Port LOWER COWL ASSEMBLY Port |
1 | |
| 10 | 8248324 |
ВИНТ (M6 x 16) SCREW (M6 x 16) |
1 | |
| 11 | 8M0174563 |
SHOULDER BOLT SHOULDER BOLT |
2 | |
| 12 | 8M0189958 |
GROMMET Front Mount GROMMET Front Mount |
2 | |
| 13 | 8M0189960 |
PROTECTOR Fuel Connector PROTECTOR Fuel Connector |
1 | |
| 14 | 8M0189966 |
GROMMET Shift Shaft GROMMET Shift Shaft |
1 | |
| 15 | 8M0189967 |
GROMMET Key Switch Remote Control/Manual Tiller GROMMET Key Switch Remote Control/Manual Tiller |
1 | |
| 16 | 897716K01 |
КОМПЛЕКТ ПЕРЕКЛЮЧАТЕЛЯ Замок зажигания (3-позиционный) с ключами Tiller SWITCH KIT Ignition (3 Position) With Keys Tiller |
1 | |
| 17 | 8M0189945 |
KEYS CAP ASSEMBLY Tiller KEYS CAP ASSEMBLY Tiller |
1 | |
| 18 | 8M0189943 |
GROMMET Ingress Tiller GROMMET Ingress Tiller |
1 | |
| 18 | 8M0189944 |
GROMMET Ingress Remote Control GROMMET Ingress Remote Control |
1 | |
| 19 | 853709007 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | |
| 2 | 8M0137380 |
БОЛТ BOLT |
9 | |
| 20 | 8M0189799 |
BRACKET Trim Switch Remote Control Power Trim BRACKET Trim Switch Remote Control Power Trim |
1 | |
| 21 | 898101145 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 22 | 898103011 |
ПЕРЕКЛЮЧАТЕЛЬ PTT Remote Control Power Trim SWITCH PTT Remote Control Power Trim |
1 | |
| 23 | 8M0189938 |
GROMMET Trim Switch Manual Start Remote Control Power Trim GROMMET Trim Switch Manual Start Remote Control Power Trim |
1 | |
| 24 | 879194330 |
ВИНТ Remote Control Power Trim SCREW Remote Control Power Trim |
2 | |
| 25 | 8M0189962 |
SEAL Rubber Jet Models Only SEAL Rubber Jet Models Only |
1 | |
| 26 | 8M0189968 |
SOUND BLANKET Lower Cowl SOUND BLANKET Lower Cowl |
1 | |
| 3 | 8M0063135 |
ЗАЩЕЛКА КОЖУХА В СБОРЕ COWL LATCH ASSEMBLY |
1 | |
| 4 | 8230427 |
БОЛТ В СБОРЕ (M6 x 12) BOLT ASSEMBLY (M6 x 12) |
1 | |
| 5 | 898101937 |
ШАЙБА WASHER |
1 | |
| 6 | 8M0189963 |
COVER Mount, Starboard COVER Mount, Starboard |
1 | |
| 6 | 8M0189965 |
COVER Mount, Port COVER Mount, Port |
1 | |
| 7 | 8M0189942 |
LOWER PANEL Front LOWER PANEL Front |
1 | |
| 8 | 8M0189941 |
HOOK Lower Cowl HOOK Lower Cowl |
1 | |
| 9 | 8M0137384 |
ЗАКЛЕПКА RIVET |
2 |
