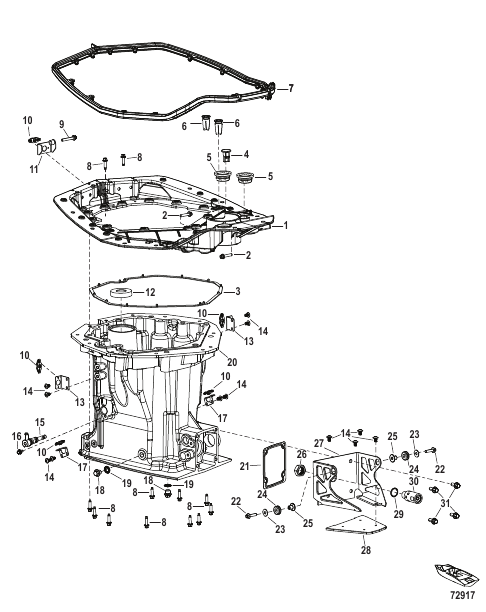

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0176558 |
ADAPTER PLATE
|
1 |
|
| 10 |
8M0183114 |
RECEPTACLE DZUS
|
5 |
|
| 11 |
8M0183077 |
BRACKET Driveshaft Housing
|
1 |
|
| 12 |
8M0183101 |
PILOT Driveshaft
|
1 |
|
| 13 |
8M0183078 |
BRACKET Driveshaft Housing Upper
|
2 |
|
| 14 |
8M0183098 |
SCREW M6 x 1 x 10 Socket Button
|
12 |
|
| 15 |
8M0142534 |
FITTING Sprayer
|
1 |
|
| 16 |
8M0103804 |
SCREW (M6 x 12 MM) Stainless Steel
|
1 |
|
| 17 |
8M0183079 |
BRACKET Driveshaft Housing Lower
|
2 |
|
| 18 |
888592005 |
PLUG ASSEMBLY Oil Drain
|
2 |
|
| 19 |
888593 |
SEAL
|
2 |
superseded
|
| 2 |
8M0103808 |
SCREW (M6 x 30 mm) Stainless Steel
|
2 |
|
| 20 |
8M0176557 |
HOUSING Driveshaft
|
1 |
|
| 21 |
8M0176568 |
GASKET
|
1 |
|
| 22 |
82130025 |
SCREW (M6 x 25)
|
2 |
|
| 23 |
65567 |
WASHER (.265 x .750 x .048) Stainless Steel
|
2 |
|
| 24 |
834985 |
GROMMET
|
2 |
superseded
|
| 25 |
856954 |
BUSHING
|
2 |
|
| 26 |
8M0207818 |
NUT
|
1 |
|
| 27 |
8M0183087 |
PLATE AVP Vertical
|
1 |
|
| 28 |
8M0183088 |
PLATE AVP Horizontal
|
1 |
|
| 29 |
55801 |
O-RING
|
1 |
|
| 3 |
NSS |
NOT SOLD SEPARATE
|
1 |
|
| 30 |
8M0176569 |
POPPET VALVE ASSEMBLY
|
1 |
superseded
|
| 31 |
88552620 |
SCREW (M8 x 20)
|
4 |
|
| 4 |
8M0088815 |
PLUG Panel
|
3 |
|
| 5 |
8M0142501 |
GROMMET
|
2 |
|
| 6 |
8M0142710 |
DRAIN Cowl
|
2 |
|
| 7 |
8M0142962 |
SEAL Adapter Plate
|
1 |
|
| 8 |
8M0142708 |
SCREW (M6)
|
12 |
|
| 9 |
8M0103809 |
SCREW (M6 x 40 mm) Stainless Steel
|
1 |
|
