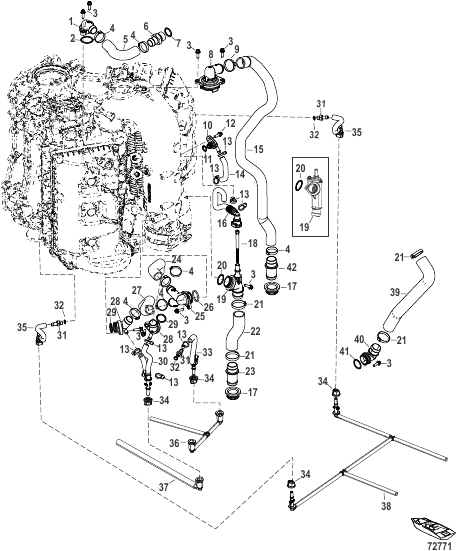

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0142494 |
FITTING Water Outlet
|
1 |
|
| 10 |
8M0172178 |
FITTING ASSEMBLY
|
1 |
|
| 11 |
201951 |
O-RING (.487 x .103)
|
1 |
|
| 12 |
8M0103805 |
SCREW (M6 x 16mm) Stainless Steel
|
1 |
|
| 13 |
816311T |
TIE STRAP (8.00 Inches)
|
17 |
|
| 14 |
8M0142513 |
HOSE Water Sprayer Exhaust
|
1 |
|
| 15 |
8M0142610 |
HOSE Thermostat Outlet
|
1 |
|
| 16 |
8M0142511 |
HOSE Water Sprayer Exhaust
|
1 |
|
| 17 |
8M0142501 |
GROMMET Chap Plate
|
2 |
|
| 18 |
8M0142515 |
STRAINER Water Design I
|
1 |
|
| 19 |
8M0168887 |
FITTING Inlet Design II
|
1 |
superseded
|
| 19 |
8M0173463 |
FITTING Inlet Design II
|
1 |
|
| 2 |
35480 |
O-RING (1.237 x .103)
|
1 |
|
| 20 |
86614 |
O-RING (1.049 x .103) Design I
|
1 |
|
| 20 |
29845 |
O-RING (.924 x .103) Design II
|
1 |
superseded
|
| 21 |
888988011 |
CLAMP (38.1 MM)
|
4 |
|
| 22 |
8M0142612 |
HOSE Water Inlet
|
1 |
|
| 23 |
8M0142506 |
FITTING Connector
|
1 |
|
| 24 |
8M0142620 |
HOSE Water to Starboard Cylinder Head
|
1 |
|
| 25 |
8M0142507 |
YFITTING Exhaust to Cylinder Head
|
1 |
|
| 26 |
26317 |
O-RING (1.109 x .139)
|
1 |
|
| 27 |
8M0142621 |
HOSE Water to Port Cylinder Head
|
1 |
|
| 28 |
8M0142510 |
FITTING Water Inlet
|
2 |
|
| 29 |
29845 |
O-RING (.924 x .103)
|
2 |
superseded
|
| 3 |
8M0103806 |
SCREW (M6 x 20 MM) Stainless Steel
|
9 |
|
| 30 |
8M0142518 |
HOSE ASSEMBLY Cylinder Head Drain
|
1 |
|
| 31 |
8M0142522 |
FITTING Barbed
|
3 |
superseded
|
| 32 |
8M0142523 |
O-RING (8.1 MM ID X 1.6MM)
|
3 |
|
| 33 |
8M0161583 |
HOSE ASSEMBLY Water Outlet, Starboard
|
1 |
|
| 34 |
884546 |
GROMMET
|
4 |
|
| 35 |
8M0142662 |
HOSE Water Drain Assembly
|
2 |
|
| 36 |
8M0183084 |
HOSE ASSEMBLY Water In
|
1 |
|
| 37 |
8M0183085 |
HOSE ASSEMBLY Sprayer
|
1 |
|
| 38 |
8M0183083 |
HOSE ASSEMBLY Block Drains
|
1 |
|
| 39 |
8M0183082 |
HOSE Water Manifold to Chap
|
1 |
|
| 4 |
8M0028753 |
CLAMP Oetiker (31.6 Diameter)
|
6 |
|
| 40 |
8M0142731 |
FITTING ELBOW
|
1 |
|
| 41 |
86614 |
O-RING (1.049 x .103)
|
1 |
|
| 42 |
8M0142509 |
FITTING Connector
|
1 |
|
| 5 |
8M0142503 |
HOSE Cooling Port Cylinder to Exhaust
|
1 |
|
| 6 |
8M0142516 |
FITTING Barbed
|
1 |
|
| 7 |
8M0142517 |
O-RING (23.6 MM ID X 2.9 MM)
|
1 |
|
| 8 |
8M0162139 |
THERMOSTAT ASSEMBLY
|
1 |
|
| 9 |
888988008 |
CLAMP (34.6 MM)
|
1 |
superseded
|
