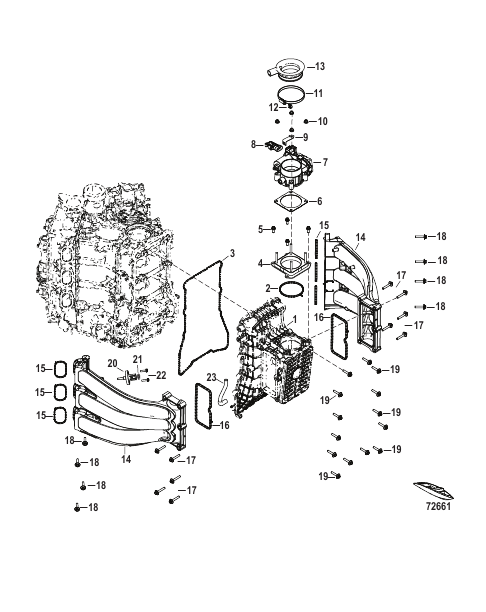

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
NSS |
NOT SOLD SEPARATE Bedplate Cover
|
1 |
|
| 10 |
8M0147750 |
NUT (M6)
|
4 |
superseded
|
| 11 |
8M0142571 |
CLAMP (70-90 MM) 9 MM WIDE
|
1 |
|
| 12 |
8M0074363 |
CAP
|
1 |
|
| 13 |
8M0183106 |
GROMMET Intake
|
1 |
|
| 15 |
8M0142548 |
GASKET Intake Manifold
|
6 |
superseded
|
| 16 |
8M0142561 |
GASKET Runner Plenum
|
2 |
|
| 17 |
8M0142565 |
MANIFOLD Intake, Port
|
1 |
|
| 17 |
8M0142560 |
MANIFOLD Intake, Starboard
|
1 |
|
| 17 |
8M0142553 |
SCREW (M6 x 37)
|
10 |
|
| 18 |
8M0142554 |
SCREW (M6 x 30)
|
8 |
|
| 19 |
8M0142555 |
SCREW (M6 x 30)
|
14 |
|
| 2 |
8M0142564 |
GASKET Throttle Body
|
1 |
|
| 20 |
891663001 |
SENSOR Temperature
|
1 |
|
| 21 |
8M0142578 |
GASKET MAT Sensor
|
1 |
|
| 22 |
895054 |
SCREW (M4 x 16 MM)
|
2 |
|
| 23 |
8M0142566 |
HOSE MAP Sensor
|
1 |
|
| 3 |
NSS |
NOT SOLD SEPARATE Gasket
|
1 |
|
| 4 |
8M0142567 |
ISOLATOR ASSEMBLY
|
1 |
superseded
|
| 5 |
8M0103805 |
SCREW (M6 x 16mm) Stainless Steel
|
4 |
|
| 6 |
8M0142568 |
GASKET Throttle Body
|
1 |
|
| 7 |
8M0158565 |
THROTTLE BODY ASSEMBLY 64 MM
|
1 |
superseded
|
| 8 |
8M0142690 |
SENSOR MAP
|
1 |
|
| 9 |
8M0142550 |
BRACKET MAP Sensor
|
1 |
|
