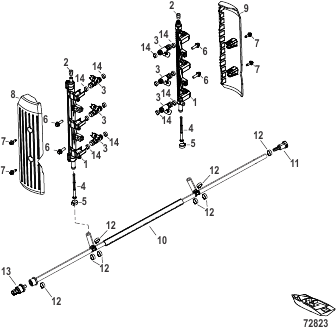

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0142557 |
FUEL RAIL ASSEMBLY Port
|
1 |
superseded
|
| 1 |
8M0142558 |
FUEL RAIL ASSEMBLY Starboard
|
1 |
|
| 10 |
8M0183086 |
HOSE ASSEMBLY
|
1 |
|
| 11 |
8M6002065 |
FITTING 10MM
|
1 |
|
| 12 |
8M0157397 |
CLAMP Oetiker, 17.5
|
8 |
|
| 13 |
8M0159600 |
SENSOR Pressure
|
1 |
|
| 14 |
8M0221321 |
ORING KIT Contains 6 Upper and Lower Orings
|
1 |
|
| 2 |
8M0046566 |
CAP Valve
|
2 |
|
| 3 |
8M0142264 |
FUEL INJECTOR
|
6 |
|
| 4 |
8M0090809 |
SCREEN Fuel Rail
|
2 |
|
| 5 |
8M0142585 |
CLAMP (16.2 x 7 x .6 MM)
|
2 |
|
| 6 |
8M0142830 |
SCREW (M6 x 20)
|
4 |
|
| 7 |
8M0005773 |
SCREW (M6 x 14) Shoulder HEX FLG SS
|
4 |
|
| 8 |
8M0142604 |
COVER Fuel Rail, Port
|
1 |
|
| 9 |
8M0142605 |
COVER Fuel Rail, Starboard
|
1 |
|
