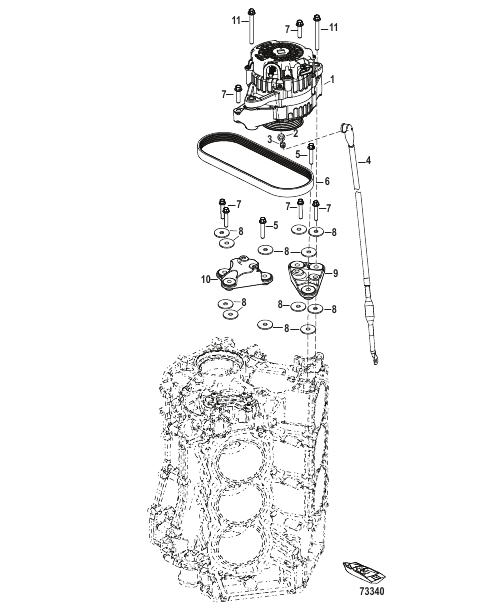

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0142678 | CABLE ASSEMBLY Ground | 1 | |
| 1 | 8M0142248 | ALTERNATOR 85 AMP | 1 | superseded |
| 10 | 8M0142672 | BRACKET Alternator | 1 | |
| 11 | 8M0142677 | SCREW (M8 x 85) | 2 | |
| 2 | 8M0151156 | SPACER | 1 | |
| 3 | 401388 | NUT (M8) Stainless Steel | 1 | |
| 4 | 8M0169564 | CABLE ASSEMBLY Fuseable Link | 1 | |
| 5 | 8M0145100 | SCREW M8 Hex Flange | 2 | |
| 6 | 8M0142251 | BELT | 1 | superseded |
| 7 | 8M0142460 | SCREW (M8 x 45) Hex Flg | 6 | |
| 8 | 8M0142674 | WASHER Plain | 12 | |
| 9 | 8M0142673 | BRACKET Alternator | 1 |
