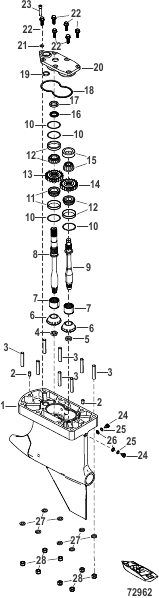

Gear Housing, Driveshaft
Parts (30)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0175995 |
CONVERSION KIT Left Hand to Left Hand CONVERSION KIT Left Hand to Left Hand |
1 | |
| - | 8M0234832 |
CONVERSION KIT Right Hand to Right Hand CONVERSION KIT Right Hand to Right Hand |
1 | |
| 1 | 8M0176563 |
GEAR HOUSING ASSEMBLY GEAR HOUSING ASSEMBLY |
1 | |
| 10 | 8M0063268 |
НАБОР ПРОКЛАДОК SHIM SET |
AR | |
| 11 | 38680T01 |
ПОДШИПНИК BEARING Cup/Cone |
1 | |
| 12 | 38678T01 |
ПОДШИПНИК BEARING Cup/Cone |
2 | |
| 13 | 8M0050949 |
ПЕРЕДАЧА GEAR Counter Rotation |
1 | |
| 14 | 86640 |
ПЕРЕДАЧА GEAR Standard Rotation |
1 | |
| 15 | 38681A1 |
БЛОК ПОДШИПНИКА BEARING ASSEMBLY |
1 | |
| 16 | 16977 |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | |
| 17 | 8M0176564 |
SEAL Oil SEAL Oil |
1 | |
| 18 | 39695 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 19 | 35276 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.734 x 0.139) O-RING (.734 x .139) |
1 | |
| 2 | 822107 |
ШТИФТ Штифт PIN Dowel |
2 | |
| 20 | 8M0183069 |
COVER Bearing Plate COVER Bearing Plate |
1 | |
| 21 | 843108 |
ШАЙБА (0.330 x 0.560 x 0.060), нержавеющая сталь WASHER (.330 x .560 x .060) Stainless Steel |
1 | |
| 22 | 812618 |
ВИНТ (0.312-18 x 1.00), нержавеющая сталь с нейлоновой накладкой SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch |
6 | |
| 23 | 8M0183073 |
SCREW SCREW |
1 | |
| 24 | 14834A3 |
УЗЕЛ ПРОБКИ Сливной – Магнитный PLUG ASSEMBLY Drain - Magnetic |
2 | |
| 25 | 805726 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО Резина O-RING Rubber |
2 | superseded |
| 26 | 830749 |
УПЛОТНЕНИЕ SEAL |
2 | superseded |
| 27 | 822836 |
ШАЙБА (0.445 x 0.805 x 0.108) WASHER (.445 x .805 x .108) |
8 | |
| 28 | 82670815 |
ГАЙКА (0.437-20) NUT (.437-20) |
8 | |
| 3 | 822118 |
ШПИЛЬКА (0.437 x 2.500) STUD (.437 x 2.500) |
8 | |
| 4 | 35921 |
ГАЙКА (.625-18) NUT (.625-18) |
1 | |
| 5 | 818932 |
ГАЙКА Левосторонний NUT Left Hand |
1 | |
| 6 | 818931A2 |
НАБОР ШЕСТЕРЕН Kit Includes Two Gears GEAR SET Kit Includes Two Gears |
1 | |
| 7 | 8M0051196 |
ПОДШИПНИК Ролик BEARING Roller |
2 | |
| 8 | 8M0183067 |
SHAFT Drive SHAFT Drive |
1 | |
| 9 | 8M0074006 |
SHAFT Driven SHAFT Driven |
1 |
