| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0137854 |

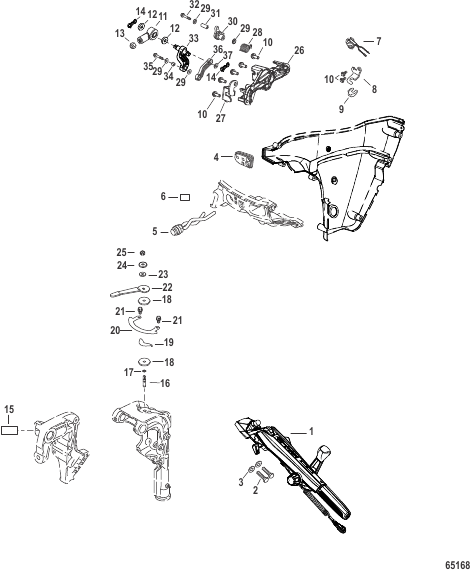

CONVERSION KIT Tiller Handle, (Remote Control to Handle)
|
1 |
|
| - |
8M0140877 |
CO PILOT KIT
|
1 |
|
| 1 |
NSS |
NOT SOLD SEPARATE Tiller Handle Complete
|
1 |
|
| 10 |
8248324 |
SCREW (M6 x 16)
|
7 |
|
| 11 |
8M0079131 |
SOCKET
|
1 |
|
| 12 |
16192 |
WASHER
|
2 |
|
| 13 |
95374 |
NUT Nylon
|
1 |
|
| 14 |
8M0021224 |
CLIP Bow-Tie
|
2 |
|
| 15 |
823701004 |
DECAL Co-Pilot
|
1 |
|
| 16 |
8M0137358 |
BOLT
|
1 |
|
| 17 |
168231 |
O-RING
|
1 |
|
| 18 |
895173 |
DISC
|
2 |
superseded
|
| 19 |
8M0137359 |
WASHER Spacer
|
1 |
superseded
|
| 2 |
8M0137834 |
BOLT
|
2 |
|
| 20 |
8M0135834 |
PLATE
|
1 |
|
| 21 |
8230427 |
BOLT ASSEMBLY (M6 x 12)
|
2 |
|
| 22 |
8M0135833 |
HANDLE
|
1 |
|
| 23 |
895146001 |
WASHER
|
1 |
|
| 24 |
8M0137357 |
WASHER
|
1 |
|
| 25 |
95374001 |
NUT Nylon
|
1 |
|
| 26 |
8M0137317 |
BRACKET Throttle Wire
|
1 |
|
| 27 |
8M0140788 |
CLAMP
|
1 |
|
| 28 |
8M0137313 |
SPRING
|
1 |
|
| 29 |
953921 |
WASHER Stainless Steel
|
4 |
|
| 3 |
879194340 |
WASHER
|
2 |
|
| 30 |
8M0135707 |
THROTTLE DRUM
|
1 |
superseded
|
| 31 |
8M0137299 |
COLLAR
|
1 |
|
| 32 |
4000333 |
SCREW (M6 x 40)
|
1 |
|
| 33 |
8M0135813 |
ARM Shift
|
1 |
|
| 34 |
8M0137300 |
COLLAR
|
1 |
|
| 35 |
4000330 |
SCREW (M6 x 25)
|
1 |
superseded
|
| 36 |
8M0135854 |
ROD Shift Lever
|
1 |
superseded
|
| 37 |
953925 |
WASHER
|
1 |
|
| 4 |
8M0137381 |
GROMMET
|
1 |
|
| 5 |
853820A02 |
SWITCH ASSEMBLY Start
|
1 |
|
| 6 |
859278004 |
DECAL Start
|
1 |
|
| 7 |
8M0127937 |
SWITCH Neutral
|
1 |
|
| 8 |
8M0135828 |
BRACKET Neutral Switch
|
1 |
superseded
|
| 9 |
803841 |
ACTUATOR
|
1 |
|
