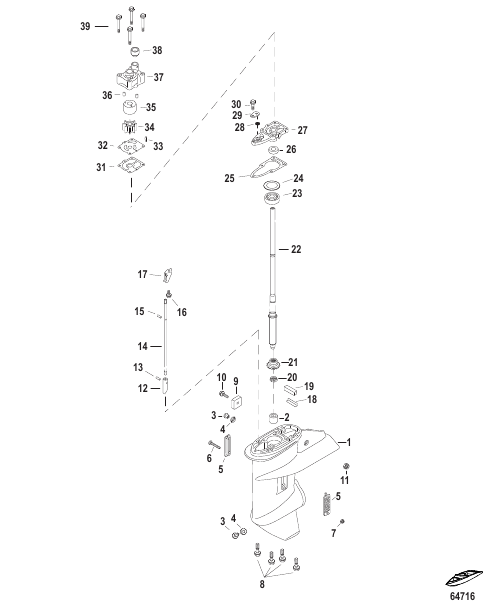

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0134483 |
GEAR HOUSING ASSEMBLY Complete, Short
|
1 |
superseded
|
| - |
8M0134484 |
GEAR HOUSING ASSEMBLY Complete, Long
|
1 |
superseded
|
| - |
8M0134485 |
GEAR HOUSING ASSEMBLY Complete, X-Long
|
1 |
superseded
|
| - |
8M0172920 |
PUMP CASE ASSEMBLY [0R985499] & Below
|
1 |
|
| - |
8M0135820 |
GEARCASE SEAL KIT
|
1 |
|
| - |
8M0135821 |
COMPLETE WATER PUMP KIT Repair
|
1 |
|
| - |
8M0137849 |
WATER PUMP KIT Chrome
|
1 |
|
| 1 |
8M0135572 |
GEAR HOUSING Basic
|
1 |
|
| 10 |
167051 |
BOLT (M6 x 20)
|
1 |
|
| 11 |
8537227 |
NUT Nylon
|
1 |
|
| 12 |
8M0090459 |
CLUTCH CAM
|
1 |
|
| 13 |
16175 |
PIN
|
1 |
|
| 14 |
8M0175395 |
SHIFT SHAFT KIT Lower, Short and Long
|
1 |
|
| 14 |
8M0134498 |
SHIFT SHAFT Lower, Short
|
1 |
superseded
|
| 14 |
8M0175398 |
SHIFT SHAFT KIT Lower, XLong
|
1 |
|
| 14 |
8M0134499 |
SHIFT SHAFT Lower, XLong
|
1 |
superseded
|
| 15 |
8M0123271 |
PIN Spring
|
1 |
|
| 16 |
823042067 |
SCREW
|
1 |
|
| 17 |
8M0135807 |
STOPPER
|
1 |
|
| 18 |
8M0135802 |
PLATE Water Seal
|
1 |
|
| 19 |
8M0135801 |
SEAL Water
|
1 |
|
| 2 |
898101991 |
BEARING Needle
|
1 |
|
| 20 |
85372211 |
NUT
|
1 |
|
| 21 |
8M0134489 |
GEAR Pinion
|
1 |
superseded
|
| 22 |
8M0134494 |
DRIVESHAFT SHORT
|
1 |
superseded
|
| 22 |
8M0134495 |
DRIVESHAFT LONG
|
1 |
superseded
|
| 22 |
8M0134496 |
DRIVESHAFT X-LONG
|
1 |
|
| 23 |
8M0134497 |
BALL BEARING
|
1 |
|
| 24 |
813276001 |
SHIM (0.1)
|
AR |
|
| 24 |
813276015 |
SHIM (0.15)
|
AR |
|
| 24 |
813276003 |
SHIM (0.3)
|
AR |
|
| 24 |
813276005 |
SHIM (0.5)
|
AR |
|
| 25 |
8M0135804 |
GASKET Pump Housing
|
1 |
|
| 26 |
803752 |
SEAL Oil
|
1 |
|
| 27 |
8M0134493 |
HOUSING Water Pump
|
1 |
|
| 28 |
8M0137348 |
O-RING
|
1 |
|
| 29 |
8M0135808 |
STOPPER
|
1 |
|
| 3 |
953683 |
PLUG
|
2 |
superseded
|
| 30 |
823042 |
BOLT
|
1 |
|
| 31 |
8M0135806 |
GASKET Guide Plate
|
1 |
|
| 32 |
8M0135805 |
PLATE Guide
|
1 |
|
| 33 |
8M0137347 |
KEY
|
1 |
superseded
|
| 34 |
8M0135803 |
IMPELLER
|
1 |
|
| 35 |
803751 |
LINER Water Pump [0R985499] & Below
|
1 |
|
| 35 |
8M0172919 |
LINER Water Pump [0R985500] & Up
|
1 |
|
| 36 |
952188 |
PIN Dowel
|
2 |
|
| 37 |
8M0134492 |
PUMP CASE Upper [0R985499] & Below
|
1 |
disc.
|
| 37 |
8M0172916 |
PUMP CASE Upper [0R985500] & Up
|
1 |
|
| 38 |
8036674 |
SEAL
|
1 |
|
| 39 |
879194269 |
BOLT
|
4 |
|
| 4 |
8M0082880 |
SEAL KIT Drain Plug
|
2 |
|
| 5 |
803730002 |
STRAINER Water
|
2 |
|
| 6 |
17635 |
SCREW
|
1 |
|
| 7 |
85372210 |
NUT
|
1 |
|
| 8 |
8M0137343 |
BOLT
|
4 |
|
| 9 |
8M0137344 |
ANODE
|
1 |
|
