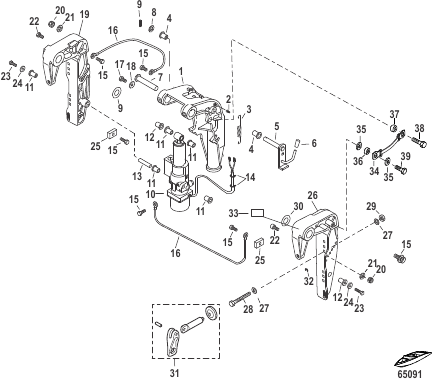

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0134661 |
SWIVEL BRACKET ASSEMBLY Short
|
1 |
|
| 1 |
8M0134659 |
SWIVEL BRACKET ASSEMBLY Long and XLong
|
1 |
|
| 10 |
8M0134507 |
POWER TILT ASSEMBLY
|
1 |
|
| 11 |
16176008 |
BUSHING
|
5 |
|
| 12 |
16176009 |
BUSHING
|
2 |
|
| 13 |
851874005 |
PIN
|
1 |
|
| 14 |
56762 |
TIE STRAP (4.00 Inches)
|
2 |
|
| 15 |
8248324 |
SCREW (M6 x 16)
|
6 |
|
| 16 |
898101089 |
WIRE Ground
|
2 |
|
| 17 |
879194248 |
BOLT
|
1 |
|
| 18 |
898101937 |
WASHER
|
1 |
|
| 19 |
815030T05 |
CLAMP BRACKET Starboard
|
1 |
|
| 2 |
8M0137368 |
PIN
|
1 |
|
| 20 |
95374001 |
NUT Nylon
|
2 |
|
| 21 |
8M0135942 |
WASHER
|
2 |
|
| 22 |
815051001 |
PIN Trim Lock
|
2 |
|
| 23 |
879194253 |
BOLT
|
2 |
|
| 24 |
95375 |
WASHER
|
2 |
|
| 25 |
875208 |
ANODE
|
2 |
|
| 26 |
815031T03 |
CLAMP BRACKET Port
|
1 |
|
| 27 |
879194339 |
WASHER
|
8 |
superseded
|
| 28 |
8M0094877 |
SCREW (8 x 85mm
|
4 |
|
| 29 |
879194337 |
NUT
|
4 |
|
| 3 |
95383010 |
SPRING
|
1 |
|
| 30 |
95375001 |
WASHER
|
2 |
|
| 31 |
8M0060117 |
CLAMP SCREW KIT
|
2 |
superseded
|
| 32 |
160572 |
E RING
|
1 |
|
| 33 |
8M0137367 |
DECAL Secure Engine
|
1 |
superseded
|
| 34 |
8M0145399 |
STRAP Kicker Tiller Models
|
2 |
|
| 35 |
898101937 |
WASHER Tiller Models
|
4 |
|
| 36 |
855545003 |
COLLAR Tiller Models
|
2 |
|
| 37 |
8M0135848 |
COLLAR Tiller Models
|
2 |
|
| 38 |
8M0145484 |
SCREW Tiller Models
|
2 |
|
| 39 |
823042 |
BOLT Tiller Models
|
2 |
|
| 4 |
95286027 |
COLLAR
|
2 |
|
| 5 |
8M0120641 |
TILT STOPPER
|
1 |
|
| 6 |
NSS |
NOT SOLD SEPARATE
|
1 |
|
| 7 |
8M0091498 |
PIN Cylinder
|
1 |
|
| 8 |
879194340 |
WASHER
|
1 |
|
| 9 |
95218017 |
PIN Spring
|
1 |
|
