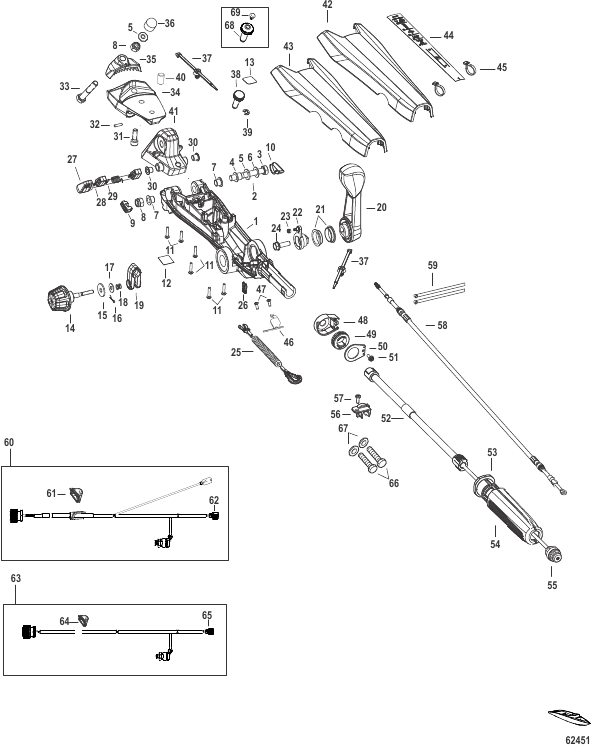

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0132349 |
TILLER HANDLE Bare Non Power Tilt [0R910467] & Below
|
1 |
disc.
|
| 1 |
8M0157134 |
TILLER HANDLE BARE UPPER BRACKET ASSEMBLY Non Power Tilt [0R910468] & Up
|
1 |
|
| 1 |
8M0132350 |
TILLER HANDLE Bare Power Tilt [0R921316] & Below
|
1 |
disc.
|
| 1 |
8M0157135 |
TILLER HANDLE BARE UPPER BRACKET ASSEMBLY Power Tilt [0R921317] & Up
|
1 |
|
| 10 |
8M0136036 |
PLUG
|
1 |
|
| 11 |
8M0136037 |
SCREW
|
6 |
|
| 12 |
8M0136062 |
DECAL Spare Clip
|
1 |
|
| 13 |
8M0136038 |
PAD Design 1
|
1 |
|
| 14 |
8M0136039 |
KNOB Throttle Friction
|
1 |
|
| 15 |
8M0136040 |
WASHER
|
1 |
|
| 16 |
210711 |
COTTER PIN
|
1 |
|
| 17 |
4002316 |
WASHER (6.60 X 17.0 X 1.5SS)
|
1 |
superseded
|
| 18 |
8M0137829 |
COMPRESSION SPRING
|
1 |
|
| 19 |
8M0136041 |
TENSION CLAMP
|
1 |
|
| 2 |
8M0137830 |
BOLT ASSEMBLY
|
1 |
|
| 20 |
8M0136042 |
HANDLE Shift
|
1 |
|
| 21 |
8M0136043 |
FLANGE BUSHING
|
2 |
|
| 22 |
8M0138448 |
SHIFT LEVER ASSEMBLY
|
1 |
|
| 23 |
8M0136045 |
NUT
|
1 |
|
| 24 |
40011149 |
SCREW (M8 x 25) Stainless Steel
|
1 |
|
| 25 |
8M0124369 |
LANYARD ASSEMBLY 54 in
|
1 |
superseded
|
| 26 |
8M0138447 |
CLIP Lanyard Fork, Spare
|
1 |
|
| 27 |
8M0137832 |
TILT LEVER SHAFT ASSEMBLY
|
1 |
|
| 28 |
8M0136049 |
PIN Groove
|
2 |
|
| 29 |
8M0136050 |
PIN Groove
|
1 |
|
| 3 |
4000383 |
SCREW (M10 x 70)
|
1 |
|
| 30 |
8M0136051 |
BEARING Flange
|
2 |
|
| 31 |
8M0136052 |
SCREW
|
1 |
superseded
|
| 32 |
8M0136053 |
PIN
|
1 |
|
| 33 |
8M0136054 |
BOLT
|
1 |
|
| 34 |
8M0136055 |
BRACKET Lower
|
1 |
|
| 35 |
8M0136056 |
CLAMP Toe
|
1 |
superseded
|
| 36 |
8M0136057 |
NUT Cap
|
1 |
|
| 37 |
8M0136058 |
CABLE TIE Clip
|
2 |
superseded
|
| 38 |
8M0136059 |
SCREW Design 1
|
1 |
|
| 39 |
8M0136060 |
E RING
|
1 |
|
| 4 |
8M0135910 |
SPACER
|
1 |
|
| 40 |
8M0137396 |
PIN
|
1 |
|
| 41 |
8M0136068 |
BRACKET Tiller Handle Order Tiller Handle/Upper Bracket Kit PT or Non PT [0R910467] & Below
|
1 |
|
| 41 |
8M0151160 |
BRACKET Upper, Tiller Handle [0R910468] & Up
|
1 |
|
| 42 |
8M0136061 |
COVER Lanyard bottom mounted
|
1 |
|
| 43 |
8M0179550 |
COVER Lanyard side mounted
|
1 |
|
| 44 |
8M0137515 |
DECAL Tiller Handle
|
1 |
|
| 45 |
816311T |
TIE STRAP (8.00 Inches)
|
2 |
|
| 46 |
8M0136071 |
SPRING Flat
|
1 |
|
| 47 |
8M0136069 |
SCREW
|
2 |
|
| 48 |
8M0132352 |
HOUSING
|
1 |
|
| 49 |
8M0132353 |
PULLEY
|
1 |
|
| 5 |
4002319 |
WASHER
|
2 |
|
| 50 |
8M0132354 |
COVER HOUSING
|
1 |
|
| 51 |
878608 |
SCREW (#10-16 x .500)
|
1 |
|
| 52 |
8M0136064 |
THROTTLE SHAFT
|
1 |
|
| 53 |
8M0132355 |
GRIP INSERT
|
1 |
|
| 54 |
8M0132356 |
GRIP HANDLE
|
1 |
|
| 55 |
8M0132357 |
SWITCH ASSEMBLY
|
1 |
|
| 56 |
8M0051380 |
BRACKET
|
1 |
|
| 57 |
8M0051381 |
SCREW
|
1 |
|
| 58 |
8M0136063 |
CABLE Push Pull
|
1 |
superseded
|
| 59 |
8M0132351 |
CABLE Throttle
|
2 |
|
| 6 |
12024 |
WASHER (.402 x .787 x .039 Bellevi)
|
1 |
|
| 60 |
8M0136065 |
HARNESS Tiller, Power Tilt Includes Power Tilt and Lanyard Switch
|
1 |
superseded
|
| 61 |
8M0137395 |
GROMMET
|
1 |
|
| 62 |
8M0136067 |
CONNECTOR
|
1 |
|
| 63 |
8M0136066 |
HARNESS Tiller, Non Power Tilt Includes Lanyard Switch
|
1 |
superseded
|
| 64 |
8M0137395 |
GROMMET
|
1 |
|
| 65 |
8M0136067 |
CONNECTOR
|
1 |
|
| 66 |
8M0137834 |
BOLT
|
2 |
|
| 67 |
879194340 |
WASHER
|
2 |
|
| 68 |
8M0051399 |
STOPPER Design 2
|
1 |
|
| 69 |
8M0153724 |
SCREW Design 2
|
1 |
|
| 7 |
8M0136034 |
BUSHING Flange
|
2 |
superseded
|
| 8 |
40140 |
NUT (M10)
|
2 |
|
| 9 |
8M0136035 |
PLUG
|
1 |
|
