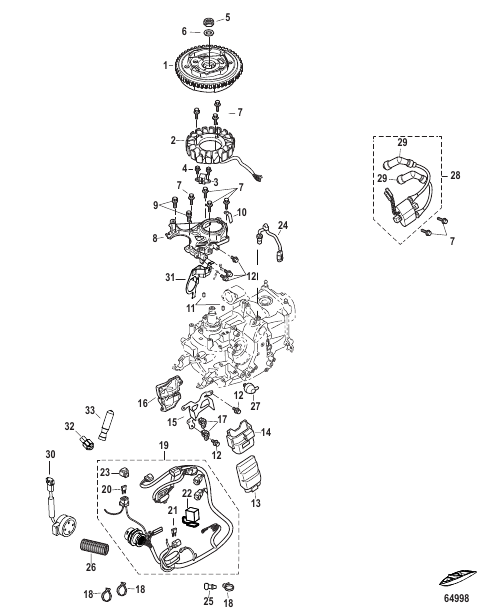

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0137846 |
ELECTRIC START KIT
|
1 |
|
| 1 |
8M0134469 |
FLYWHEEL All Models
|
1 |
|
| 10 |
8M0130961 |
CLAMP
|
1 |
|
| 11 |
16119 |
PIN Dowel
|
2 |
|
| 12 |
8230427 |
BOLT ASSEMBLY (M6 x 12)
|
5 |
|
| 13 |
8M0173455 |
ECU Engine Control Unit 9.9 HP Prokicker
|
1 |
|
| 13 |
8M0135815 |
ECU Engine Control Unit 10/15 HP/ 15 HP ProKicker
|
1 |
|
| 13 |
8M0135817 |
ECU Engine Control Unit 20 HP
|
1 |
|
| 13 |
8M0135819 |
ECU Engine Control Unit 15 HP SeaPro
|
1 |
|
| 13 |
8M0139796 |
ECM 15 HP Japan Models Only
|
1 |
|
| 13 |
8M0139798 |
ECM 20 HP Japan Models Only
|
1 |
|
| 14 |
8M0137320 |
ECU HOLDER
|
1 |
superseded
|
| 15 |
8M0137321 |
PLATE
|
1 |
|
| 16 |
8M0139432 |
PLATE
|
1 |
|
| 17 |
898101949 |
CLAMP
|
2 |
|
| 18 |
816311T |
TIE STRAP (8.00 Inches)
|
2 |
|
| 19 |
8M0134517 |
HARNESS ASSEMBLY Non Power Trim Models
|
1 |
superseded
|
| 19 |
8M0134518 |
HARNESS ASSEMBLY Power Trim Models
|
1 |
superseded
|
| 2 |
8M0134470 |
ALTERNATOR All Models
|
1 |
|
| 20 |
853814002 |
FUSE 20 Ampere
|
1 |
|
| 21 |
853814003 |
FUSE 15 Ampere
|
1 |
|
| 22 |
8M0137322 |
PLUG Cable Terminal
|
1 |
|
| 23 |
8M0106928 |
GROMMET
|
1 |
|
| 24 |
8M0135709 |
SENSOR Coolant Temperature
|
1 |
superseded
|
| 25 |
853994 |
PLUG
|
2 |
|
| 26 |
879705003 |
SLEEVE
|
1 |
|
| 27 |
803538 |
SWITCH ASSEMBLY Oil Pressure
|
1 |
superseded
|
| 28 |
8M0134472 |
IGNITION COIL
|
1 |
|
| 29 |
898101141 |
BOOT
|
2 |
|
| 3 |
8M0135822 |
COIL Pulsar
|
1 |
|
| 30 |
898101134 |
ALARM
|
1 |
|
| 31 |
8M0137328 |
BRACKET 14 Pin
|
1 |
|
| 32 |
8M0137325 |
TERMINAL COVER Non Power Tilt Electric Start Models Only
|
1 |
|
| 33 |
8M0137324 |
TERMINAL COVER Manual Start Models Only
|
1 |
|
| 4 |
823042067 |
SCREW
|
2 |
|
| 5 |
851832001 |
NUT Gold
|
1 |
|
| 6 |
853991002 |
WASHER
|
1 |
|
| 7 |
823042 |
BOLT
|
9 |
|
| 8 |
8M0134471 |
BRACKET Coil
|
1 |
|
| 9 |
823042073 |
SCREW
|
2 |
|
