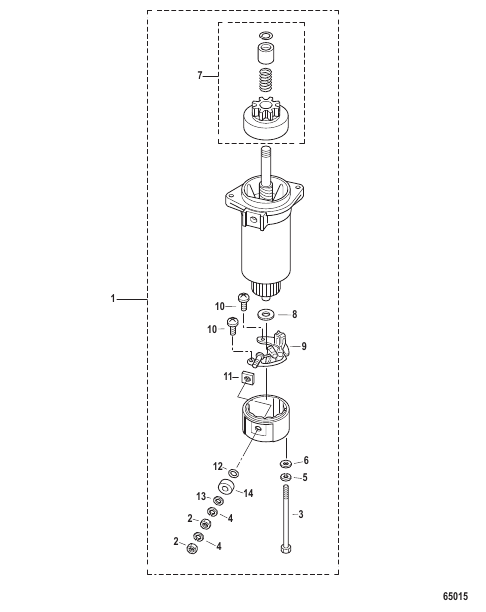

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0137846 |
ELECTRIC START KIT
|
1 |
|
| 1 |
8M0134475 |
STARTER MOTOR
|
1 |
superseded
|
| 10 |
16821 |
SCREW
|
2 |
|
| 11 |
8M0135546 |
BUSHING
|
1 |
|
| 12 |
8M0135547 |
O-RING
|
1 |
|
| 13 |
16826 |
WASHER Stainless Steel
|
1 |
|
| 14 |
8M0135545 |
BUSHING
|
1 |
|
| 2 |
853722026 |
NUT
|
2 |
|
| 3 |
8M0137330 |
BOLT
|
2 |
|
| 4 |
400256 |
LOCKWASHER (M6)
|
2 |
|
| 5 |
898101181 |
LOCKWASHER
|
2 |
|
| 6 |
898101215 |
WASHER
|
2 |
|
| 7 |
8M0135711 |
PINION ASSEMBLY [1R046251] & Below
|
1 |
|
| 7 |
8M0188342 |
8M0188342 [1R046252] & Up
|
1 |
|
| 8 |
8M0135543 |
WASHER
|
1 |
|
| 9 |
8M0135544 |
HOLDER Brush
|
1 |
|
