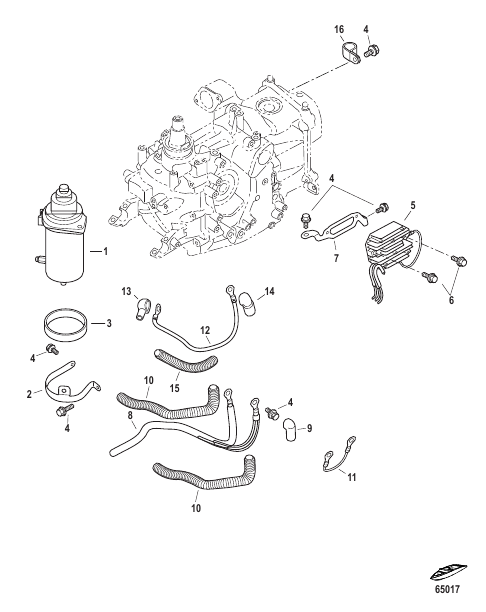

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0137846 | ELECTRIC START KIT | 1 | |
| - | 8M0137842 | BATTERY CHARGING KIT | 1 | |
| 1 | 8M0134475 | STARTER MOTOR 10/15/20 HP [0R995063] & Below | 1 | superseded |
| 1 | 8M0147039 | STARTER MOTOR ASSEMBLY 10/15/20 HP [0R995064] & Up | 1 | superseded |
| 10 | 895108008 | SLEEVE Protective | 2 | |
| 11 | 853740 | GROUND WIRE | 1 | |
| 12 | 8M0137337 | STARTER CABLE | 1 | |
| 13 | 853816003 | BOOT Red | 1 | |
| 14 | 853816002 | BOOT | 1 | |
| 15 | 853740018 | SLEEVE Protective | 1 | |
| 16 | 953951 | CLAMP | 1 | |
| 2 | 8M0137335 | BAND Starter Motor | 1 | |
| 3 | 851837 | MOUNT Rubber | 1 | |
| 4 | 8230427 | BOLT ASSEMBLY (M6 x 12) | 6 | |
| 5 | 8M0134477 | RECTIFIER | 1 | |
| 6 | 167051 | BOLT (M6 x 20) | 2 | |
| 7 | 8M0137336 | BRACKET Rectifier | 1 | |
| 8 | 8M0134478 | BATTERY CABLE | 1 | |
| 9 | 853741001 | CAP Terminal | 1 |
