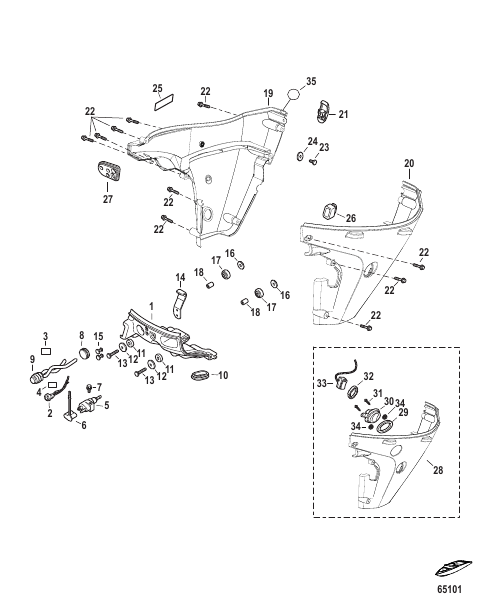

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0135860 |
FRONT PANEL
|
1 |
|
| 10 |
8M0135850 |
GROMMET
|
1 |
|
| 11 |
8537437 |
MOUNT Rubber
|
2 |
|
| 12 |
898101960 |
WASHER Rubber
|
2 |
disc.
|
| 13 |
8M0124428 |
BOLT
|
2 |
|
| 14 |
8M0137379 |
COVER Front Stay
|
1 |
|
| 15 |
8M0137384 |
RIVET
|
2 |
|
| 16 |
161404 |
WASHER
|
2 |
|
| 17 |
8518153 |
GROMMET
|
2 |
|
| 18 |
8M0139792 |
COLLAR
|
2 |
disc.
|
| 19 |
8M0134509 |
COVER Driveshaft Housing Starboard
|
1 |
superseded
|
| 2 |
8M0135849 |
PILOT LAMP
|
1 |
|
| 20 |
8M0134510 |
COVER Driveshaft Housing Port Manual Tilt
|
1 |
|
| 21 |
8M0134512 |
COWL LATCH ASSEMBLY
|
1 |
|
| 22 |
8M0137380 |
BOLT
|
10 |
|
| 23 |
8M0088179 |
BOLT
|
1 |
superseded
|
| 24 |
898101937 |
WASHER
|
1 |
|
| 25 |
8M0076191 |
DECAL NOTICE THIS SIDE UP
|
1 |
superseded
|
| 26 |
8M0137837 |
GROMMET
|
1 |
|
| 27 |
8M0137385 |
GROMMET Remote Control
|
1 |
|
| 27 |
8M0137381 |
GROMMET Tiller
|
1 |
|
| 28 |
8M0134511 |
COVER Driveshaft Housing Port Power Tilt
|
1 |
|
| 29 |
898101145 |
O-RING
|
1 |
|
| 3 |
859278004 |
DECAL Start
|
1 |
|
| 30 |
8M0141127 |
PT SWITCH HOLDER
|
1 |
|
| 31 |
879194330 |
SCREW
|
2 |
|
| 32 |
8M0139794 |
GROMMET
|
1 |
|
| 33 |
8M0141124 |
SWITCH POWER TILT
|
1 |
|
| 34 |
8M0137387 |
NUT
|
2 |
|
| 35 |
NSS |
NOT SOLD SEPARATE 3 STAR DECAL - CONTACT MERCURY MARINE WARRANTY ADMINISTRATION FOR REPLACEMENT
|
1 |
|
| 4 |
8M0140126 |
DECAL Engine Icon
|
1 |
|
| 5 |
15781A5 |
CONNECTOR Fuel - Brass
|
1 |
superseded
|
| 6 |
878311 |
CAP
|
1 |
|
| 7 |
8248324 |
SCREW (M6 x 16)
|
1 |
|
| 8 |
16226 |
GROMMET
|
1 |
|
| 9 |
853820A02 |
SWITCH ASSEMBLY Start
|
1 |
|
