| # | Part Number | Description | Qty | Status |
|---|
| - |
855998A11 |

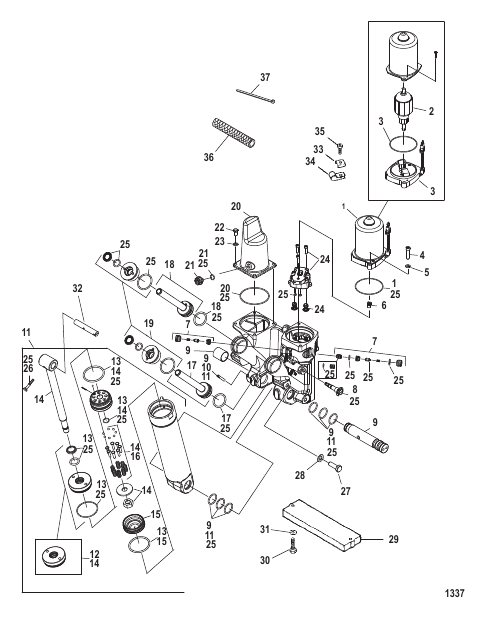

POWER TRIM KIT Metal Motor Housing
|
1 |
disc.
|
| 1 |
8M0031551 |
TRIM MOTOR
|
1 |
|
| 10 |
878267 |
PIN
|
1 |
|
| 11 |
898479A03 |
CYLINDER KIT Tilt
|
1 |
superseded
|
| 12 |
NSS |
NOT SOLD SEPARATE End Cap
|
1 |
|
| 13 |
878409A1 |
O-RING KIT (Incls. Ref. #26)
|
1 |
superseded
|
| 14 |
8M0090322 |
SHOCK ROD KIT (Incls. Ref. #26)
|
1 |
superseded
|
| 15 |
878242A02 |
PISTON ASSEMBLY Memory
|
1 |
superseded
|
| 16 |
878406A02 |
REPAIR KIT Check Valve (Incls. Ref. #26)
|
1 |
disc.
|
| 17 |
878414T01 |
PISTON ASSEMBLY
|
1 |
|
| 18 |
878413A1 |
PISTON ASSEMBLY
|
1 |
|
| 19 |
8M0021648 |
END CAP ASSEMBLY
|
2 |
|
| 2 |
NSS |
NOT SOLD SEPARATE Armature
|
1 |
|
| 20 |
878264A1 |
RESERVOIR KIT
|
1 |
|
| 21 |
811613 |
PLUG ASSEMBLY
|
1 |
|
| 22 |
4000327 |
SCREW (M6 x 14)
|
4 |
|
| 23 |
4002315 |
WASHER (6.60 X 12.5 X 1.5 mm -SS)
|
4 |
|
| 24 |
892251A01 |
PUMP KIT
|
1 |
|
| 25 |
878408A1 |
REPAIR KIT Power Trim
|
1 |
|
| 26 |
821539 |
PIN Trilobe
|
1 |
|
| 27 |
858771 |
SCREW (M10 x 30)
|
6 |
|
| 28 |
4002319 |
WASHER
|
6 |
|
| 29 |
818298Q1 |
ANODE KIT
|
1 |
|
| 3 |
NSS |
NOT SOLD SEPARATE End Frame
|
1 |
|
| 30 |
4000330 |
SCREW (M6 x 25)
|
2 |
superseded
|
| 31 |
29245 |
WASHER (.281 x .500 x .060) Stainless Steel
|
2 |
superseded
|
| 32 |
99625002 |
SHAFT
|
1 |
|
| 33 |
8M0084613 |
C-WASHER
|
2 |
|
| 34 |
22875 |
CLIP
|
2 |
|
| 35 |
878608 |
SCREW (#10-16 x .500)
|
2 |
|
| 36 |
828547353 |
CONDUIT (.350 Inside Diameter x 3.00 Feet Bulk) (Cut to 12 Inches)
|
1 |
|
| 37 |
816311T |
TIE STRAP (8.00 Inches)
|
1 |
|
| 4 |
82494830 |
SCREW (M6 x 30)
|
2 |
|
| 5 |
400256 |
LOCKWASHER (M6)
|
2 |
|
| 6 |
8M0090403 |
COUPLING Drive
|
1 |
|
| 7 |
878410A1 |
PO CHECK KIT
|
1 |
|
| 8 |
893929A01 |
VALVE KIT Relief (Incls. Ref. #26)
|
1 |
|
| 9 |
878241A03 |
SHAFT KIT Tilt Pivot
|
1 |
superseded
|
